HD60 Heavy Hydraulic Crawler Bulldozer
HD60Catalogue ref. P076

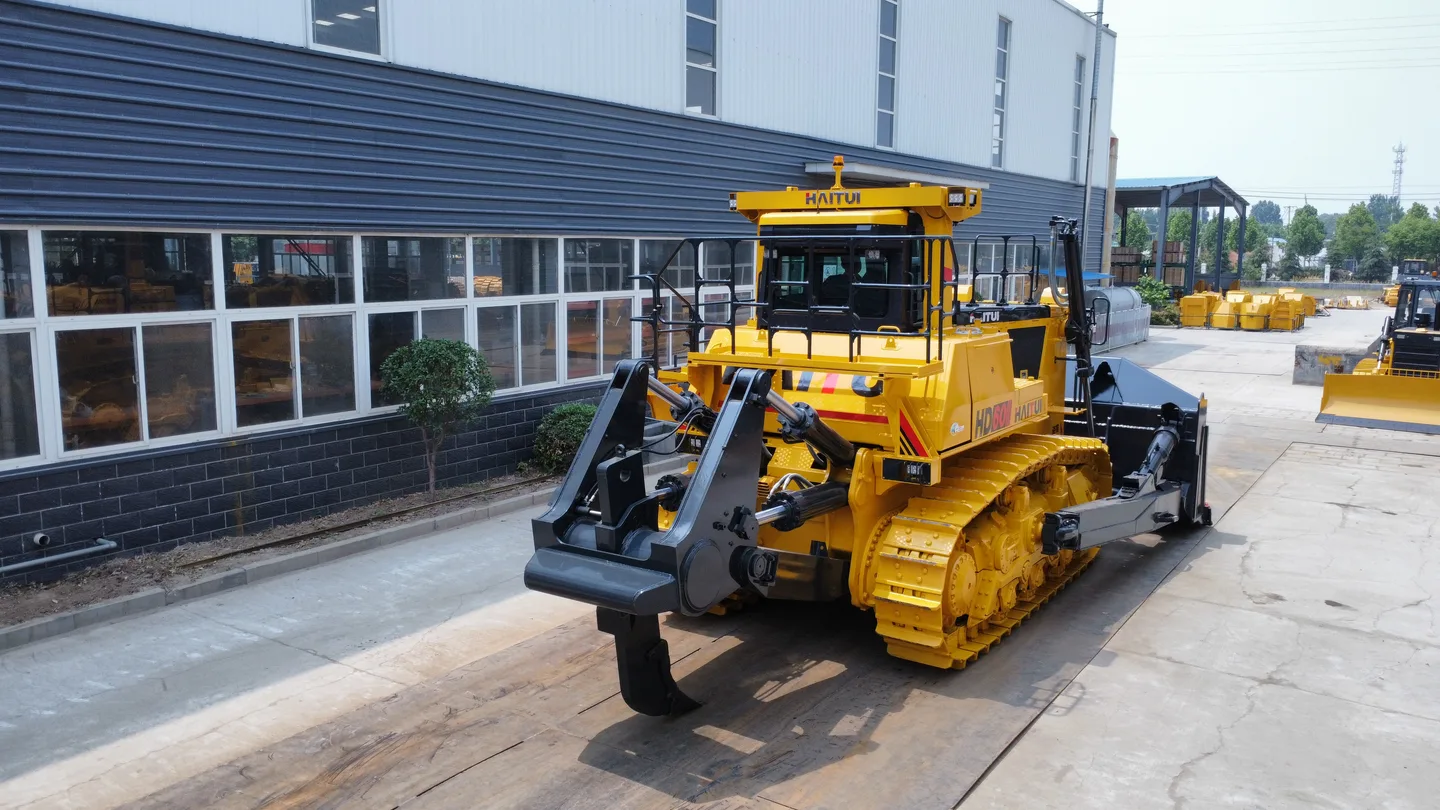

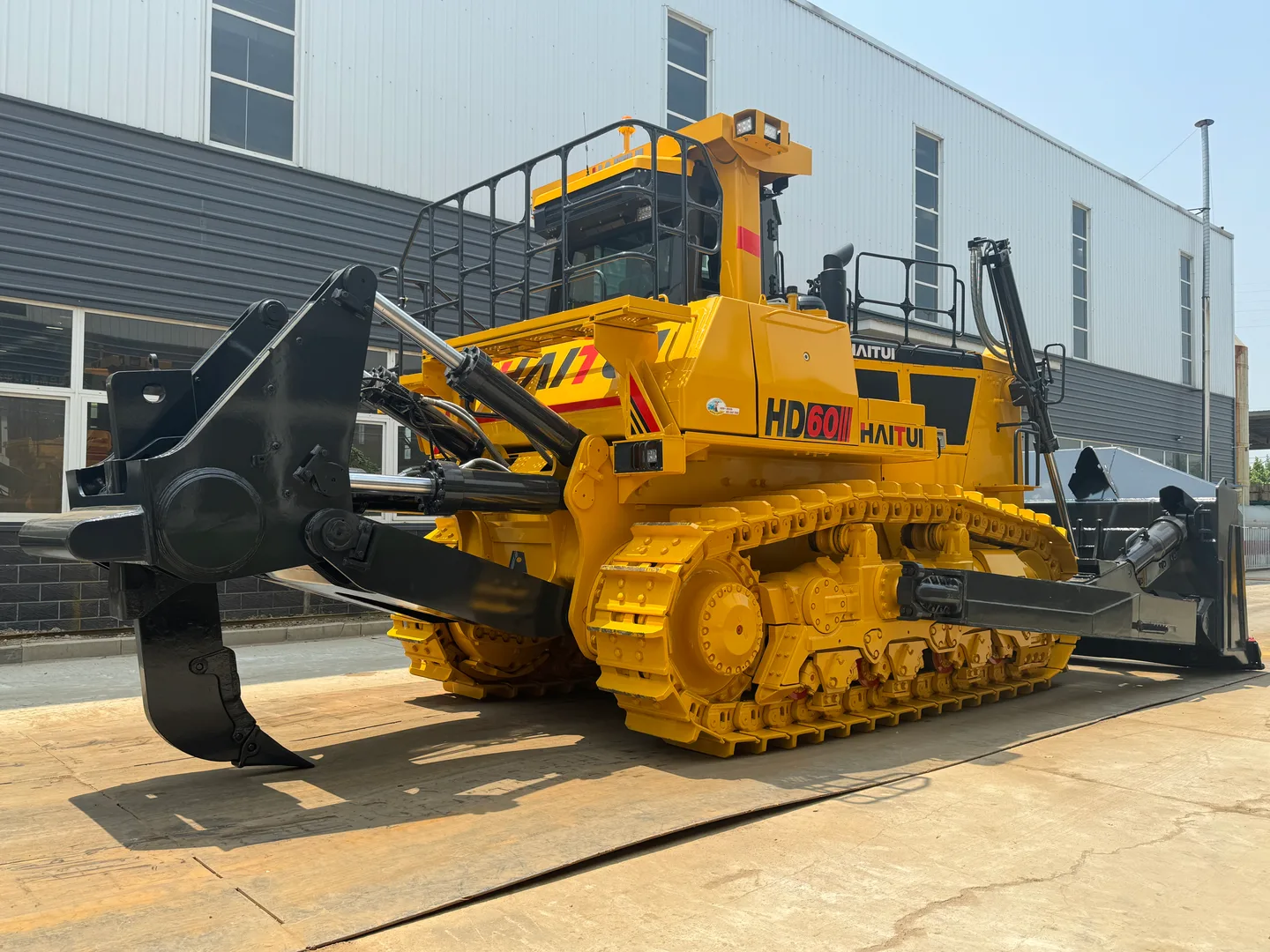

A heavy crawler bulldozer powered by a Cummins QSK19-C604 engine, with hydraulic transmission, a semi-U blade and a standard single-shank ripper. Pilot controls and centralized lubrication support operation and maintenance.
EngineCummins QSK19-C604
Engine displacement19 L
Rated power / speed450 kW / 1800 rpm
Manufacturer / catalogue attributionHAITUI
Share the quantity, destination and required configuration for a tailored quotation.
Specifications
| Engine | Cummins QSK19-C604 |
|---|---|
| Engine displacement | 19 L |
| Rated power / speed | 450 kW / 1800 rpm |
| Maximum torque / speed | 3019 N·m / 1300 rpm |
| Weight with single-shank ripper | 70.63 t |
| Dimensions with single-shank ripper (L × W × H) | 10390 × 4690 × 4530 mm |
| Minimum turning radius | 6786 mm |
| Track ground contact length | 3840 mm |
| Ground pressure | 0.1469 MPa |
| Minimum ground clearance | 610 mm |
| Gradeability | 30° |
| Track shoes per side | 40 |
| Track shoe width | 610 mm |
| Track gauge | 2500 mm |
| Track pitch | 280 mm |
| Carrier rollers per side | 2 |
| Track rollers per side | 7 |
| Working hydraulic pressure | 21 MPa |
| Blade type | Semi-U / 半U型 |
| Blade width × height | 4690 × 2250 mm |
| Blade capacity | 18.9 m³ |
| Blade lift height | 1660 mm |
| Blade cutting depth | 715 mm |
| Maximum blade tilt | 730 mm |
| Ripper type | Single-shank / 单齿 |
| Ripper weight | 3.946 t |
| Maximum ripping depth | 1435 mm |
| Ripper lift height | 1105 mm |
Specifications are taken from manufacturer materials. Confirm the exact model, options and destination requirements before ordering.
