Earthmoving machineryRequest a quote for this equipment

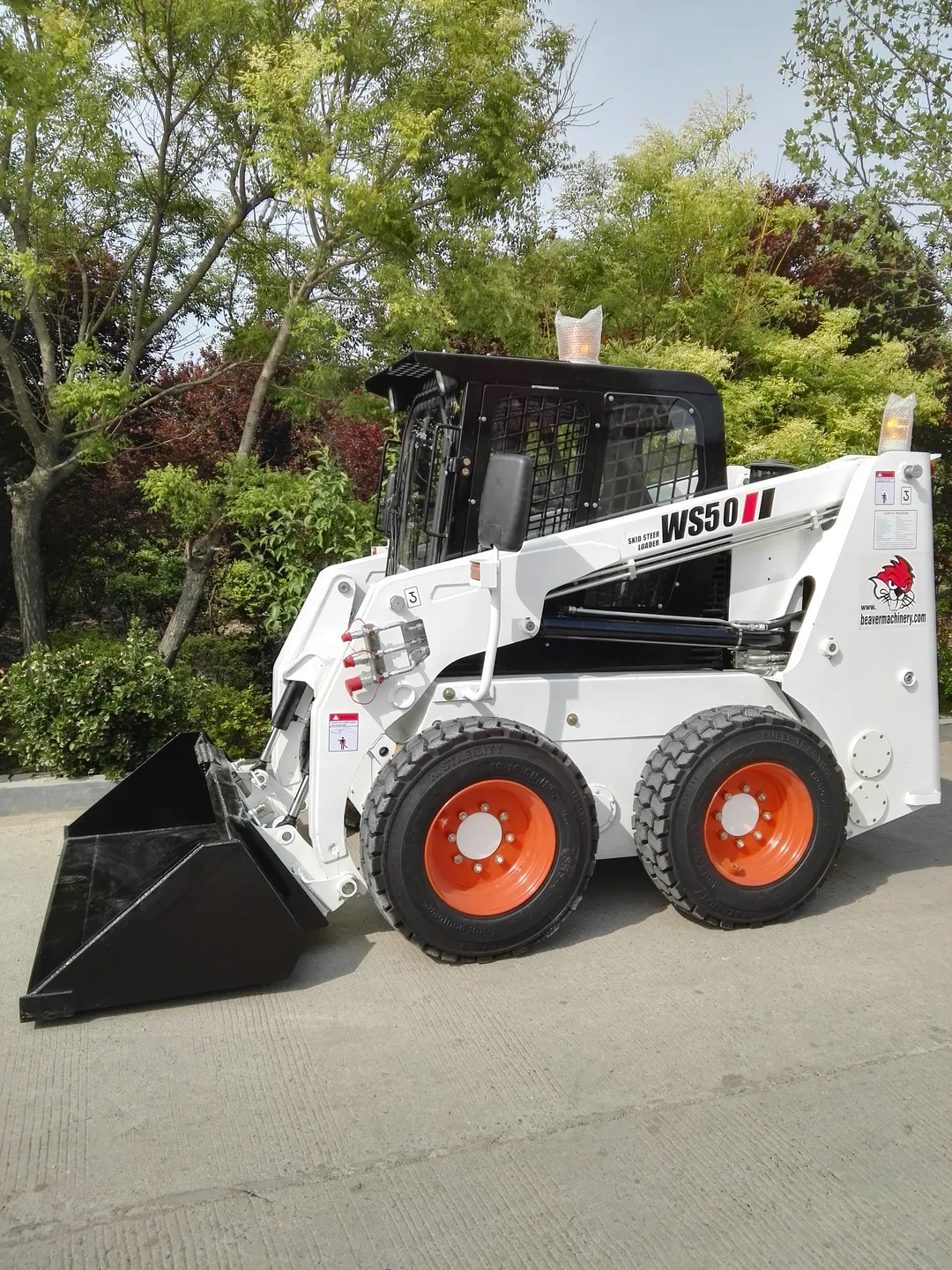

WS50 Skid Steer Loader
WS50Catalogue ref. P082
A wheeled skid steer loader for loading, grading and interchangeable attachment work. The WS50 specification offers Perkins, Kubota and Xinchai engine configurations.
Rated operating capacity750 kg
Operating weight3003 kg
Tipping load1500 kg
Manufacturer / catalogue attribution芒特
Share the quantity, destination and required configuration for a tailored quotation.
Specifications
| Rated operating capacity | 750 kg |
|---|---|
| Operating weight | 3003 kg |
| Tipping load | 1500 kg |
| Engine power — Perkins | 35.7 kW |
| Engine power — Kubota | 36.5 kW |
| Engine power — Xinchai | 36.8 kW |
| Bucket capacity | 0.35 m³ |
| Maximum travel speed | 12 km/h |
| Loader pump flow | 65 L/min |
| Loader pressure | 180 bar |
| Length with bucket | 3413 mm |
| Width with bucket | 1780 mm |
| Height to cab top | 2007 mm |
| Maximum dumping height | 2303 mm |
| Fuel tank capacity | 88 L |
Specifications are taken from manufacturer materials. Confirm the exact model, options and destination requirements before ordering.
CONTINUE EXPLORING
Related equipment
Earthmoving machinery

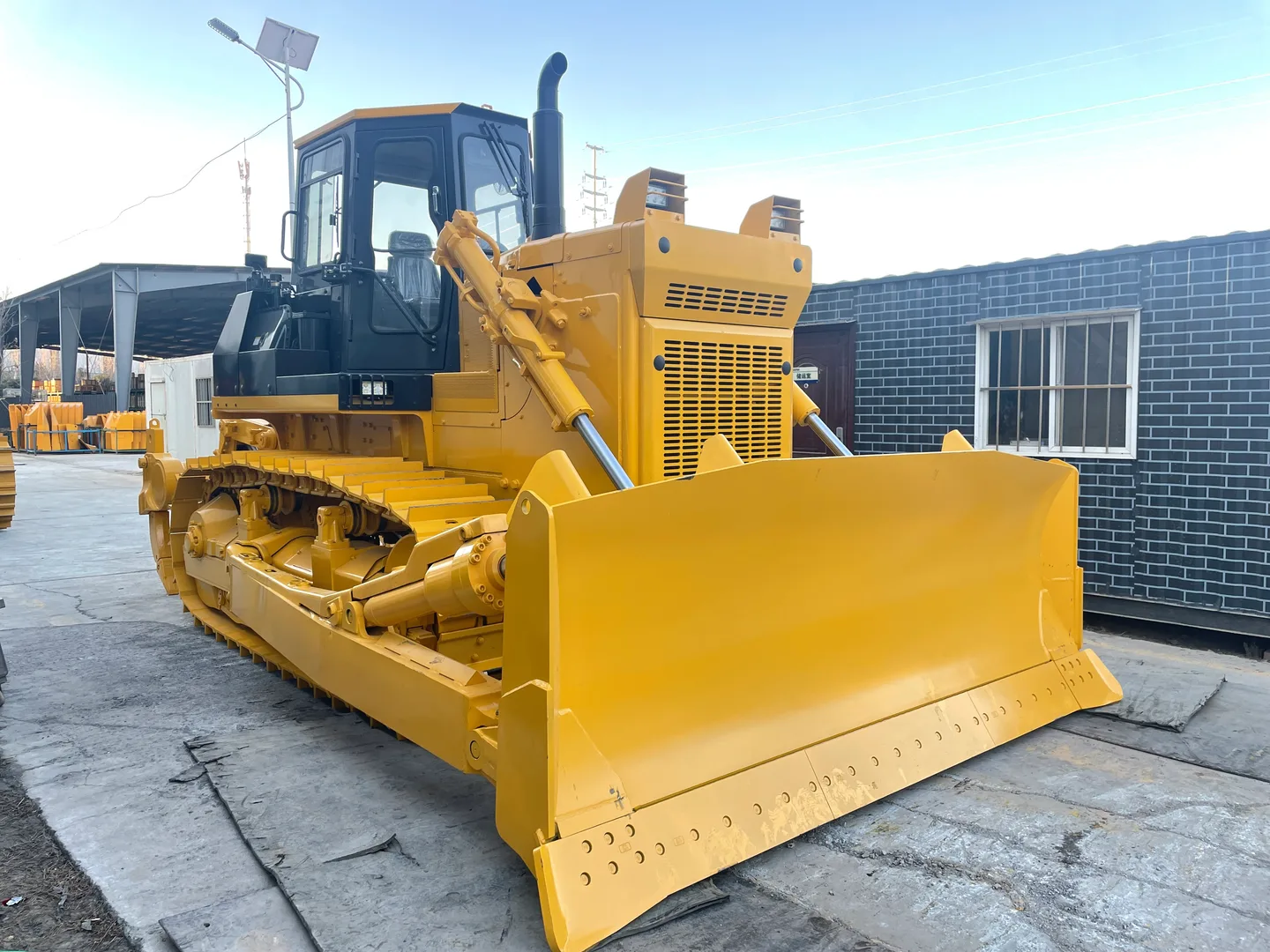

HD22 Hydraulic Crawler Bulldozer
HD22
EngineCummins NT855-C280S10
HAITUIGet a quote
Earthmoving machinery

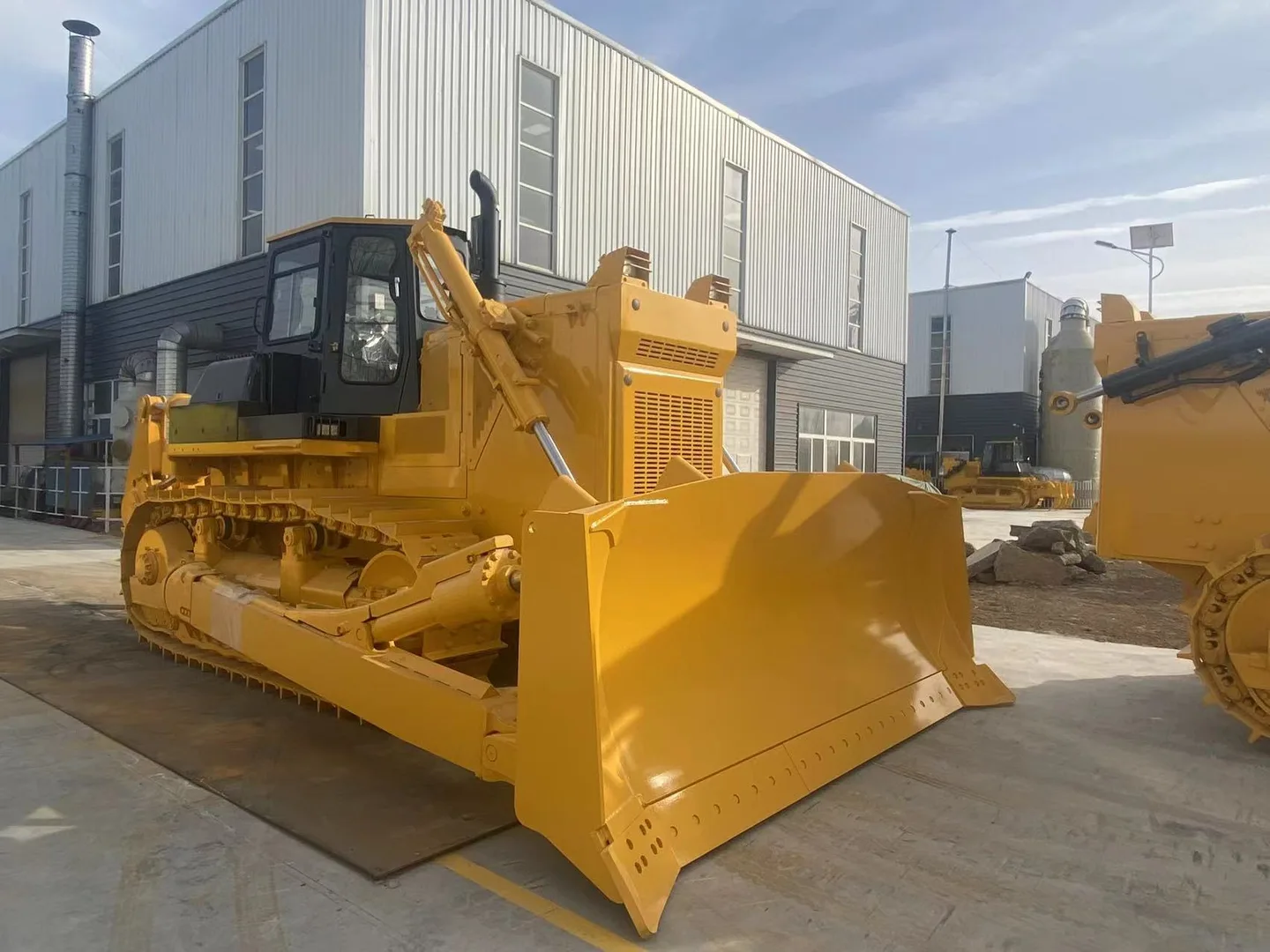

HD32 Hydraulic Crawler Bulldozer
