Earthmoving machineryRequest a quote for this equipment

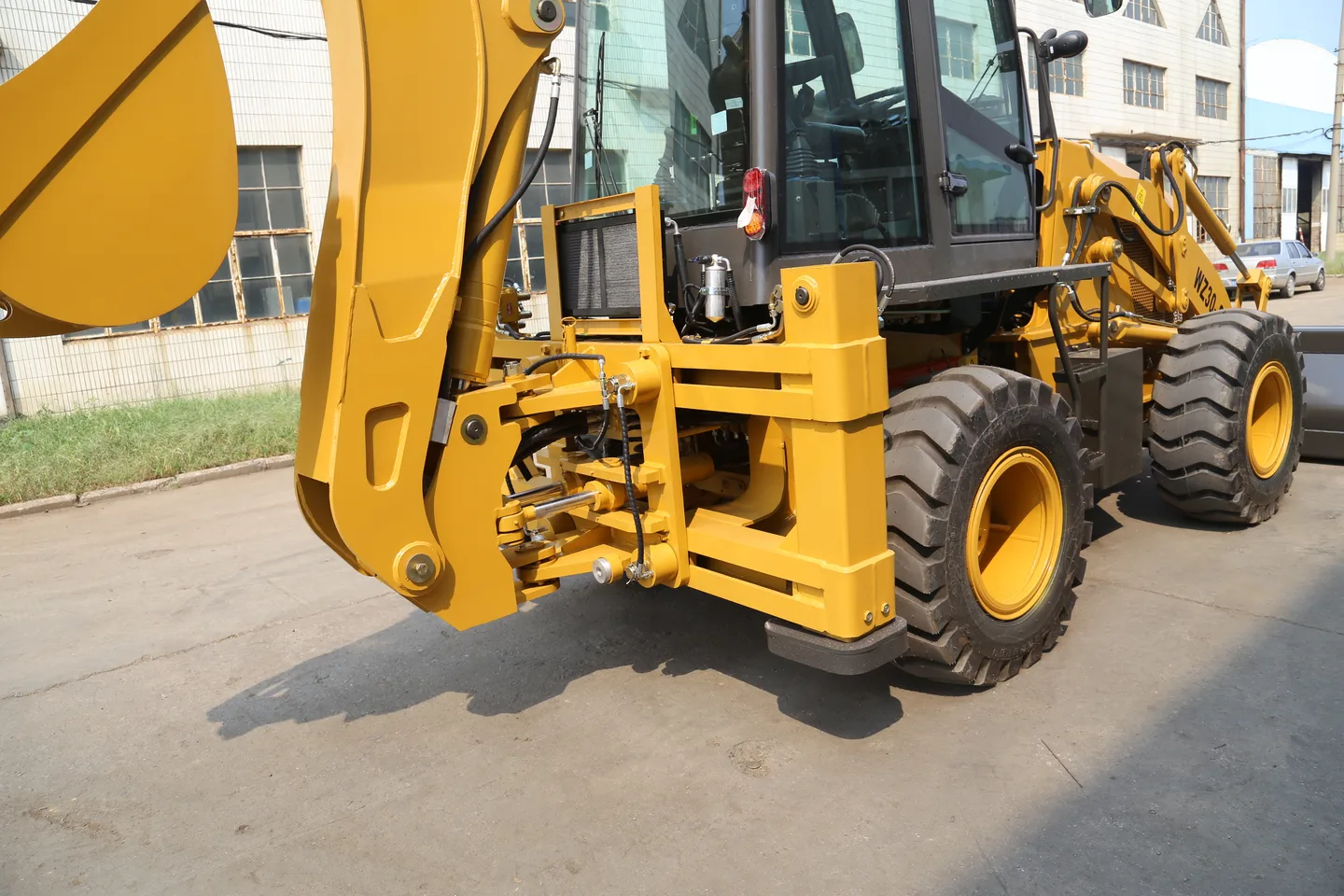

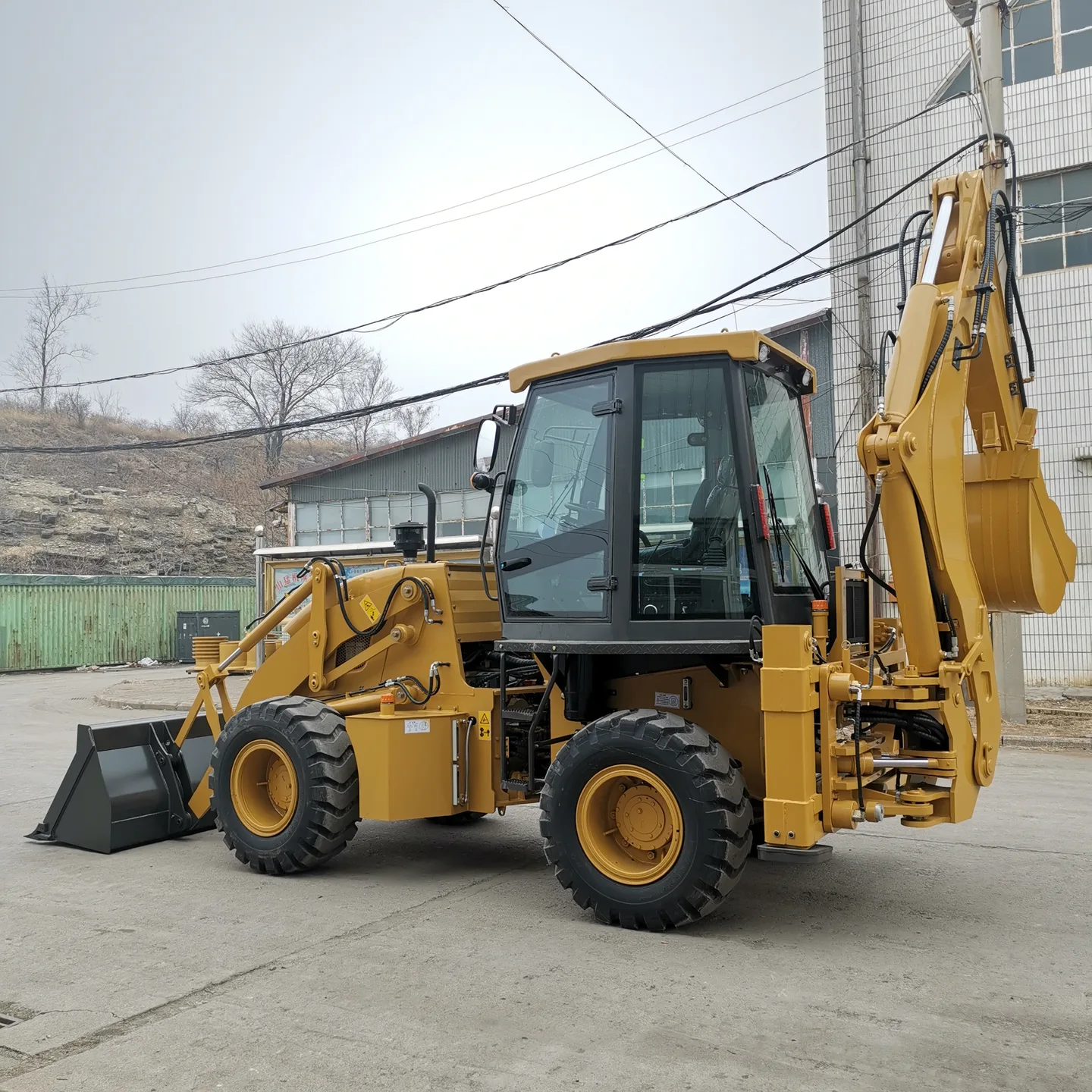

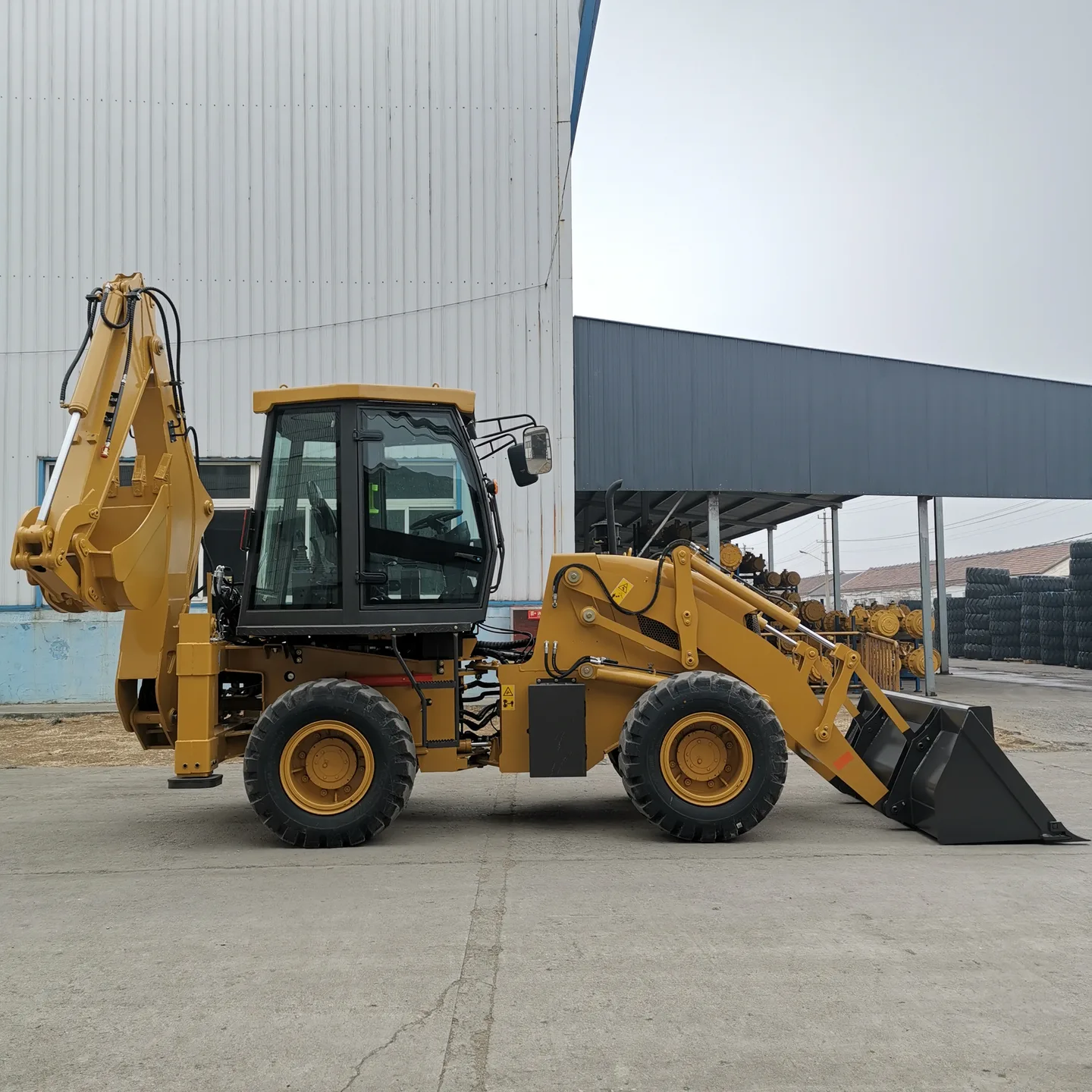

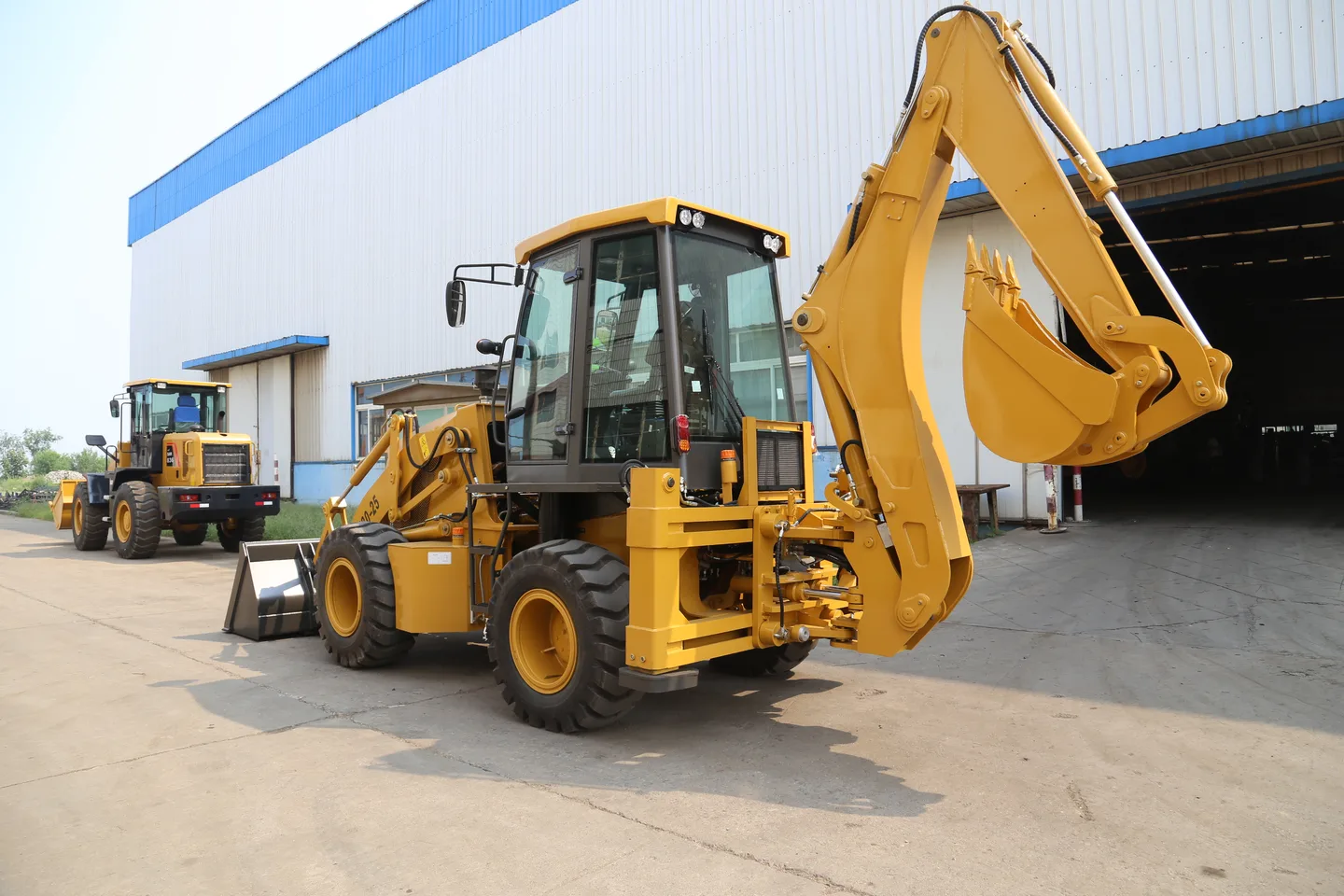

WZ30-25 Backhoe Loader
WZ30-25Catalogue ref. P083
Backhoe loader with a 1.0 m³ front bucket, a 0.3 m³ backhoe bucket and a 75 kW Yuchai engine.
Operating weight7640 kg
Bucket capacity1.0 m³
Backhoe bucket capacity0.3 m³
Manufacturer / catalogue attributionYINENG
Share the quantity, destination and required configuration for a tailored quotation.
Specifications
| Operating weight | 7640 kg |
|---|---|
| Bucket capacity | 1.0 m³ |
| Backhoe bucket capacity | 0.3 m³ |
| Loading lift capacity | 2500 kg |
| Engine model | YUCHAI YC4A105Z-T20 |
| Rated power / speed | 75 kW / 2200 rpm |
| Transport dimensions (L × W × H) | 6170 × 2268 × 3760 mm |
| Dumping height | 2770 mm |
| Dumping reach | 925 mm |
| Maximum digging depth | 4082 mm |
| Wheelbase | 2370 mm |
| Minimum ground clearance | 300 mm |
| Backhoe swing angle | 190° |
| Maximum tractive force | 39 kN |
| Maximum travel speed | 22 km/h |
| Tyre size | 16/70-20 |
| Gears (forward / reverse) | 2 / 2 |
Specifications are taken from manufacturer materials. Confirm the exact model, options and destination requirements before ordering.
