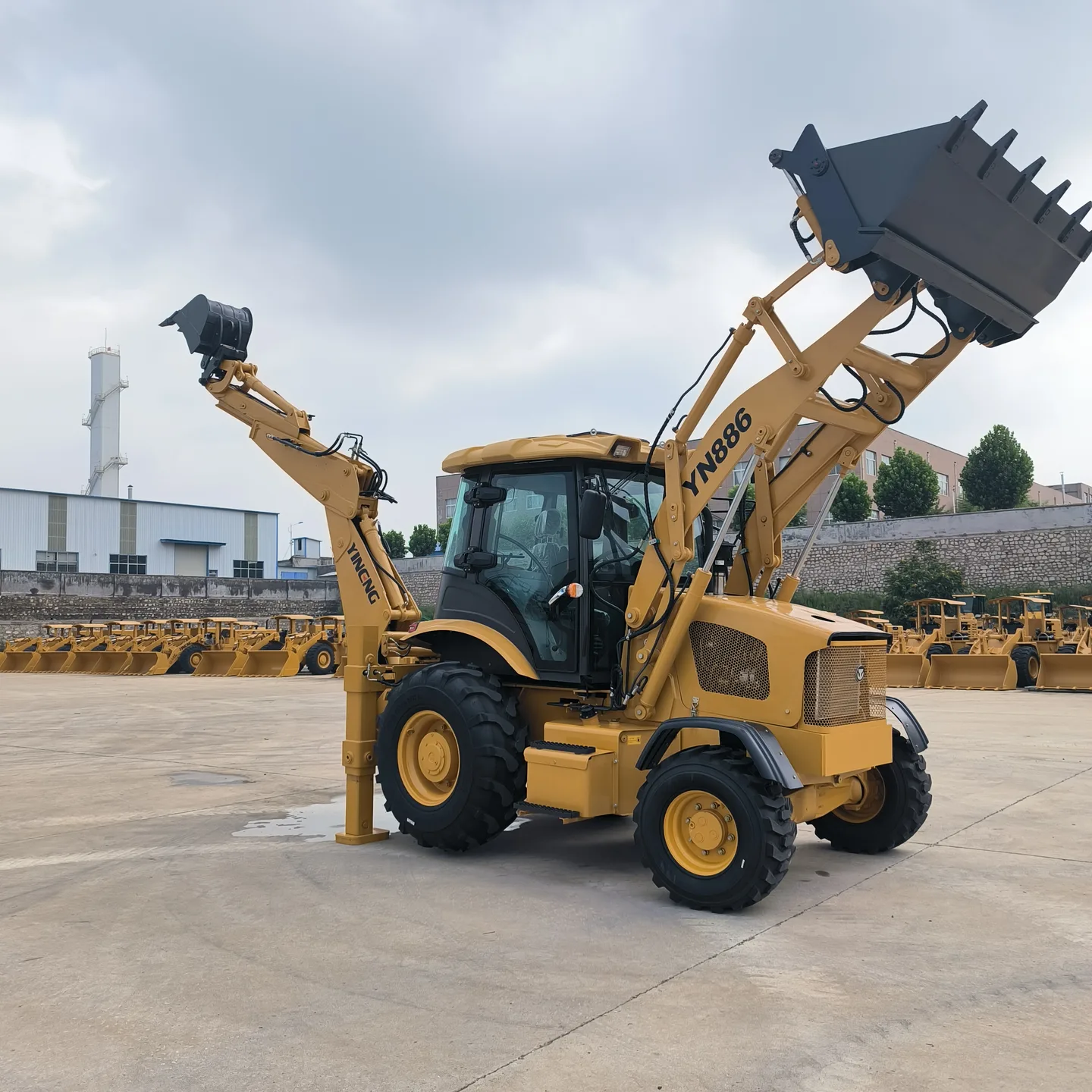

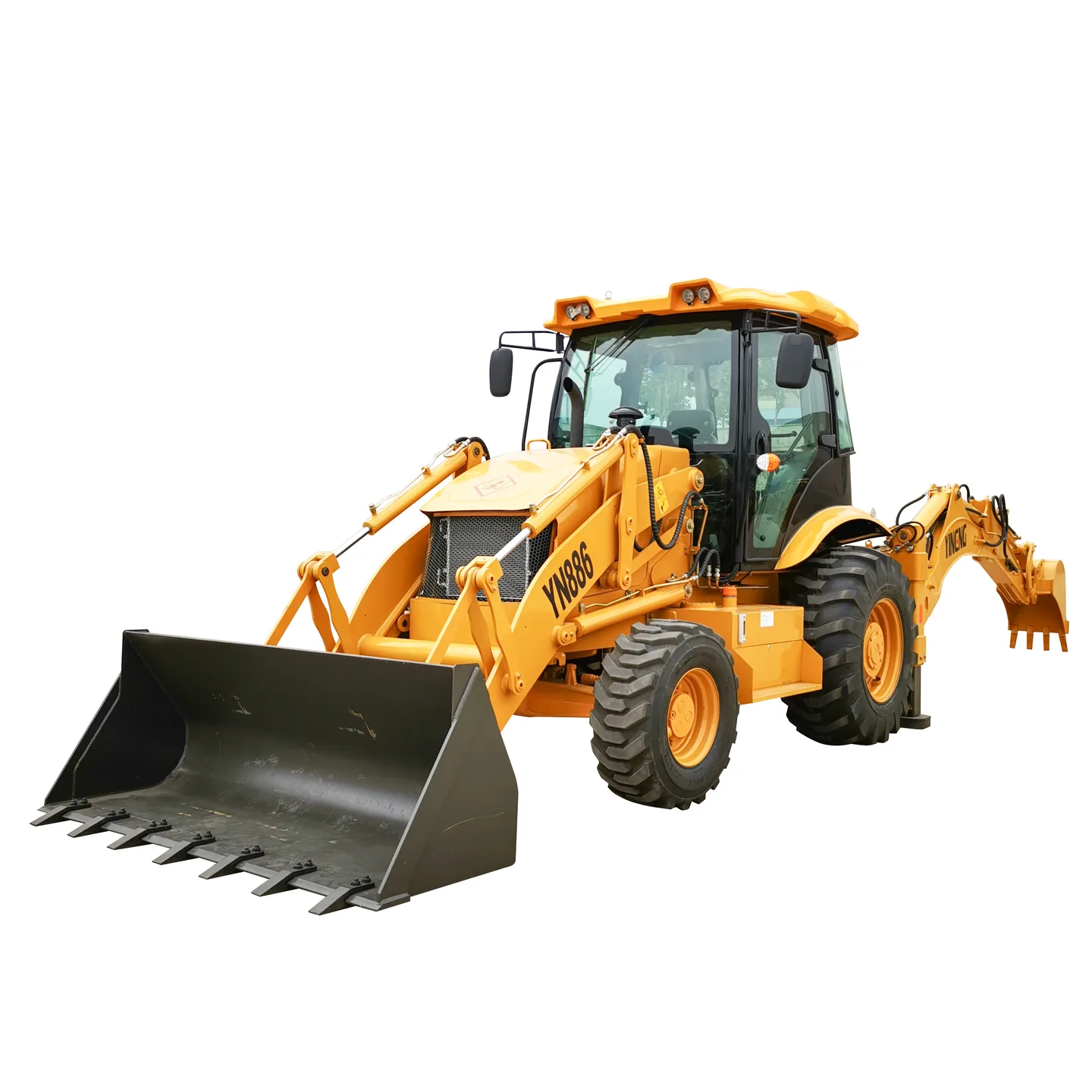

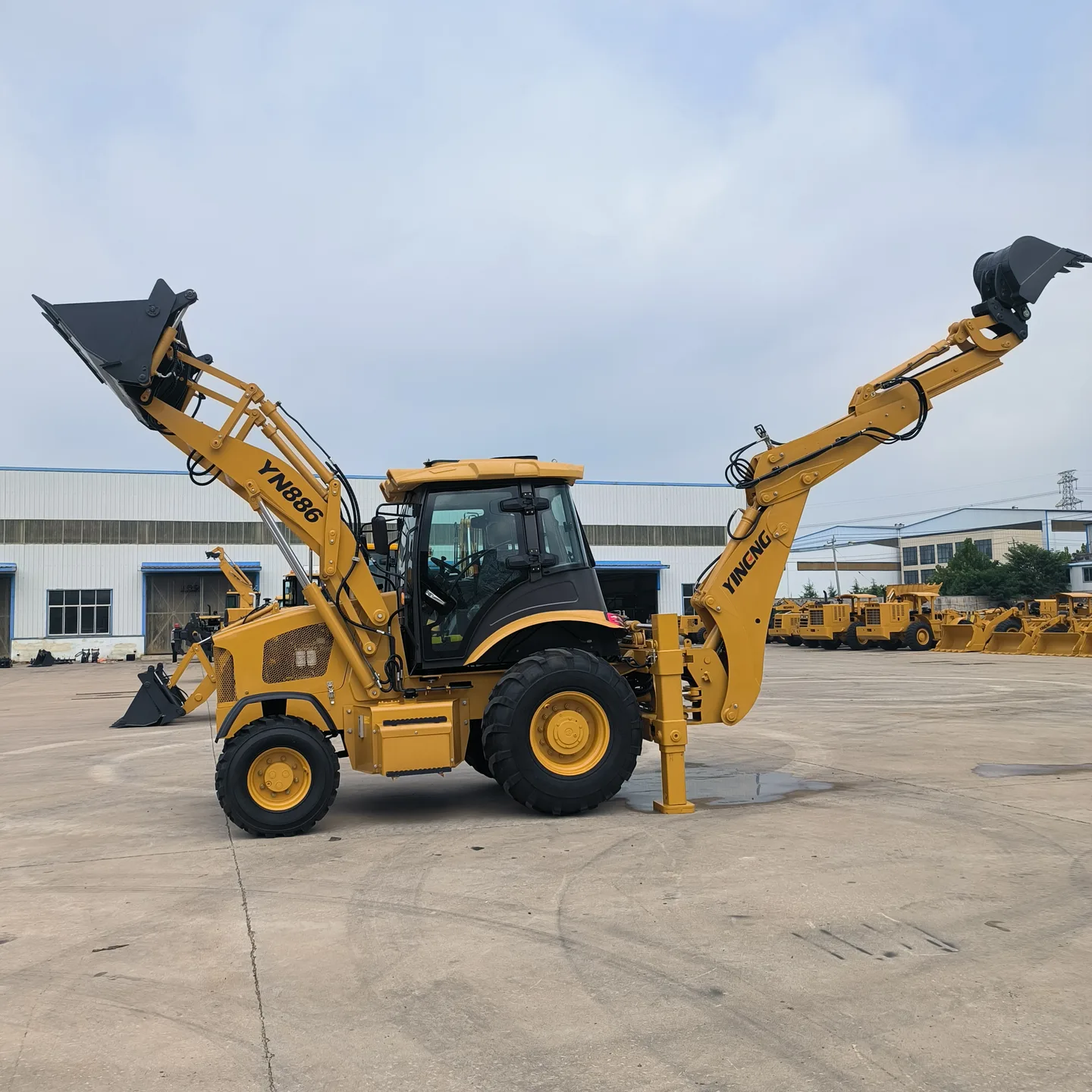

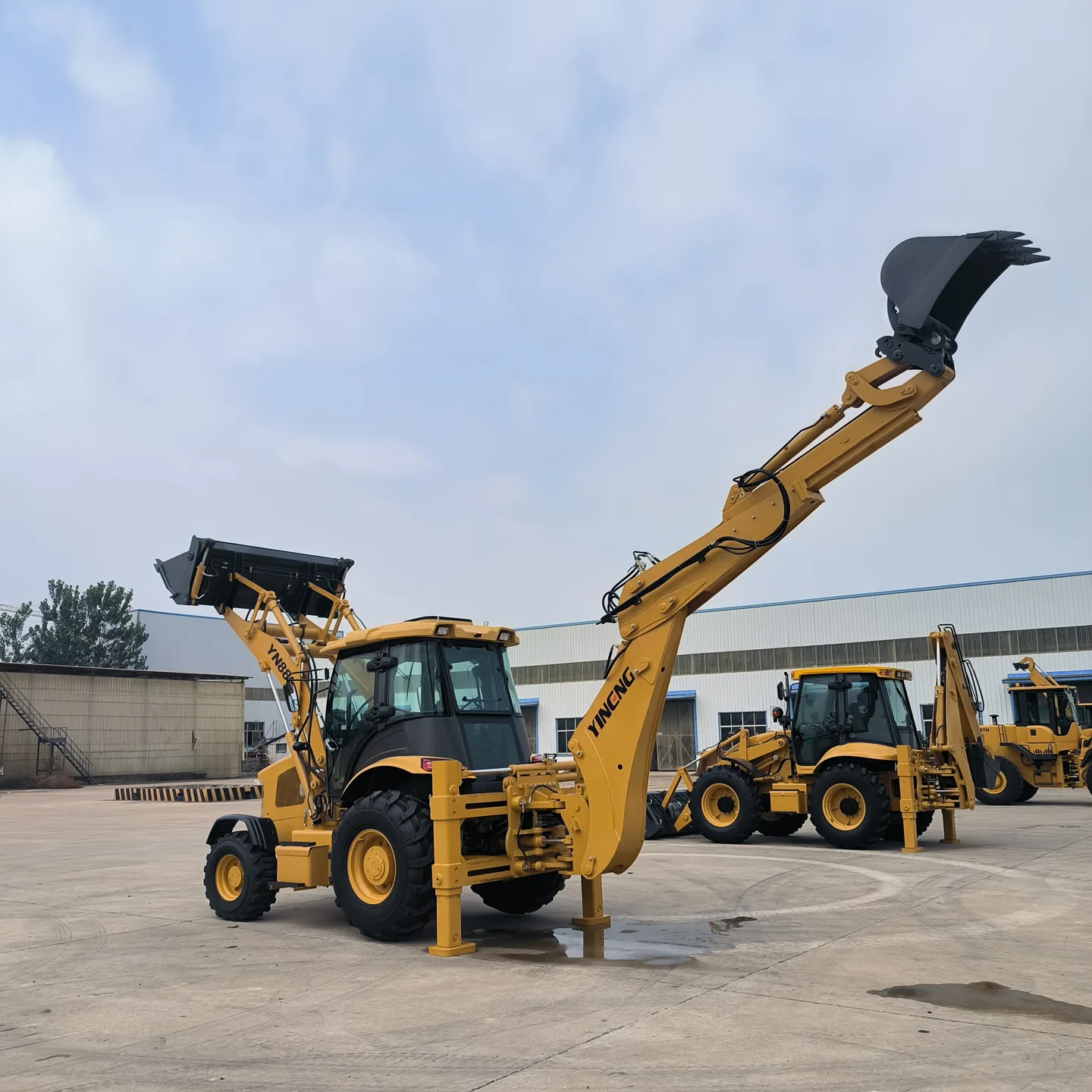

YN886 Backhoe Loader
YN886Catalogue ref. P084
Backhoe loader combining a 1.0 m³ loading bucket and 0.3 m³ backhoe, with Yuchai or Cummins engine configurations.
Operating weight8200–9300 kg

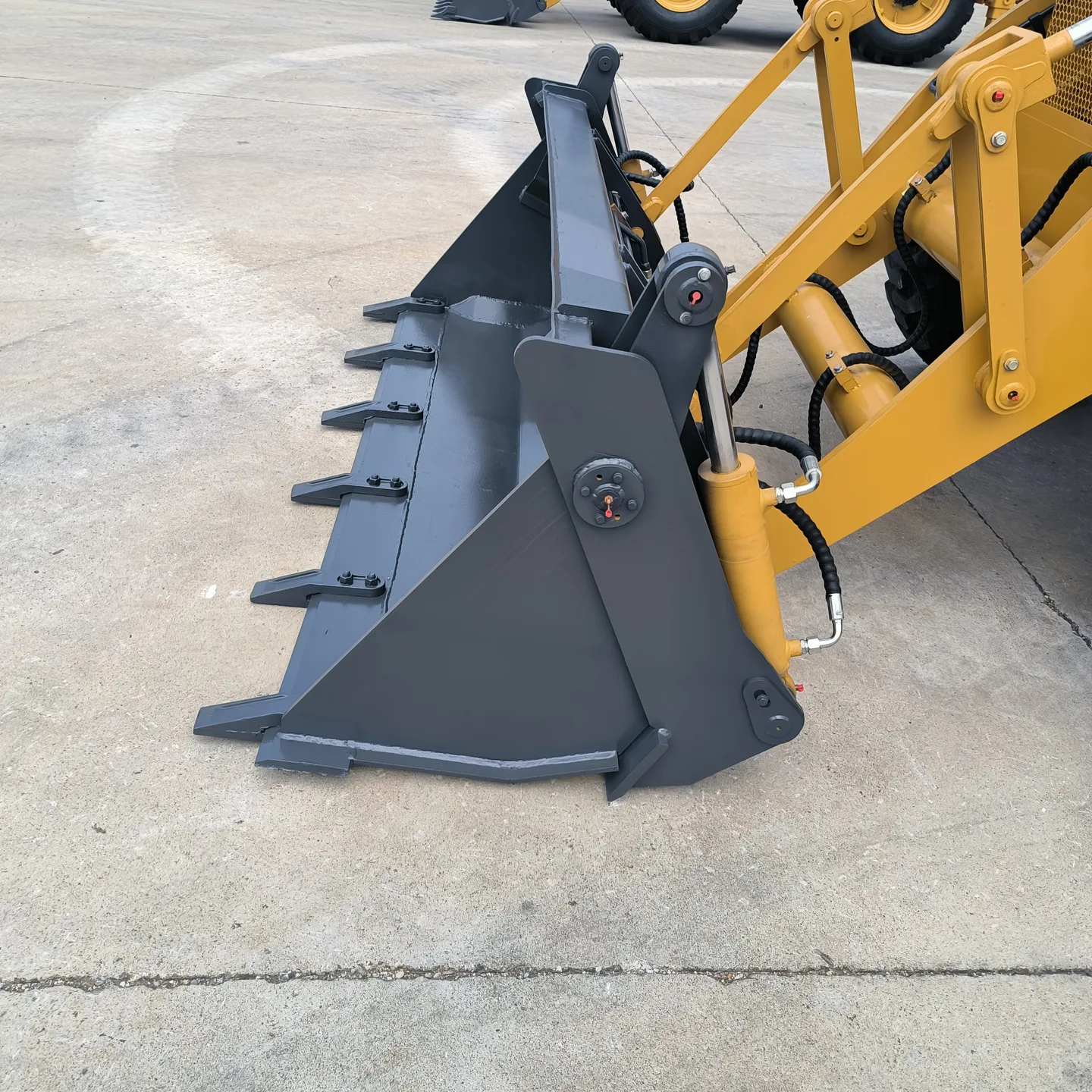

Bucket capacity1.0 m³
Backhoe bucket capacity0.3 m³
Manufacturer / catalogue attributionYINENG
Share the quantity, destination and required configuration for a tailored quotation.
Specifications
| Operating weight | 8200–9300 kg |
|---|---|
| Bucket capacity | 1.0 m³ |
| Backhoe bucket capacity | 0.3 m³ |
| Loading lift capacity | 2500 kg |
| Engine model | YC4A105Z-T20 / 4BTA3.9-C100 |
| Rated power / speed | 75 / 74 kW at 2200 rpm |
| Overall dimensions (L × W × H) | 6150 × 2250 × 3763 mm |
| Dumping height | 2760 mm |
| Dumping reach | 900 mm |
| Maximum digging depth | 4082 mm |
| Wheelbase | 2200 mm |
| Minimum ground clearance | 300 mm |
| Backhoe swing angle | 180° |
| Maximum tractive force | 60 kN |
| Maximum travel speed | 36 km/h |

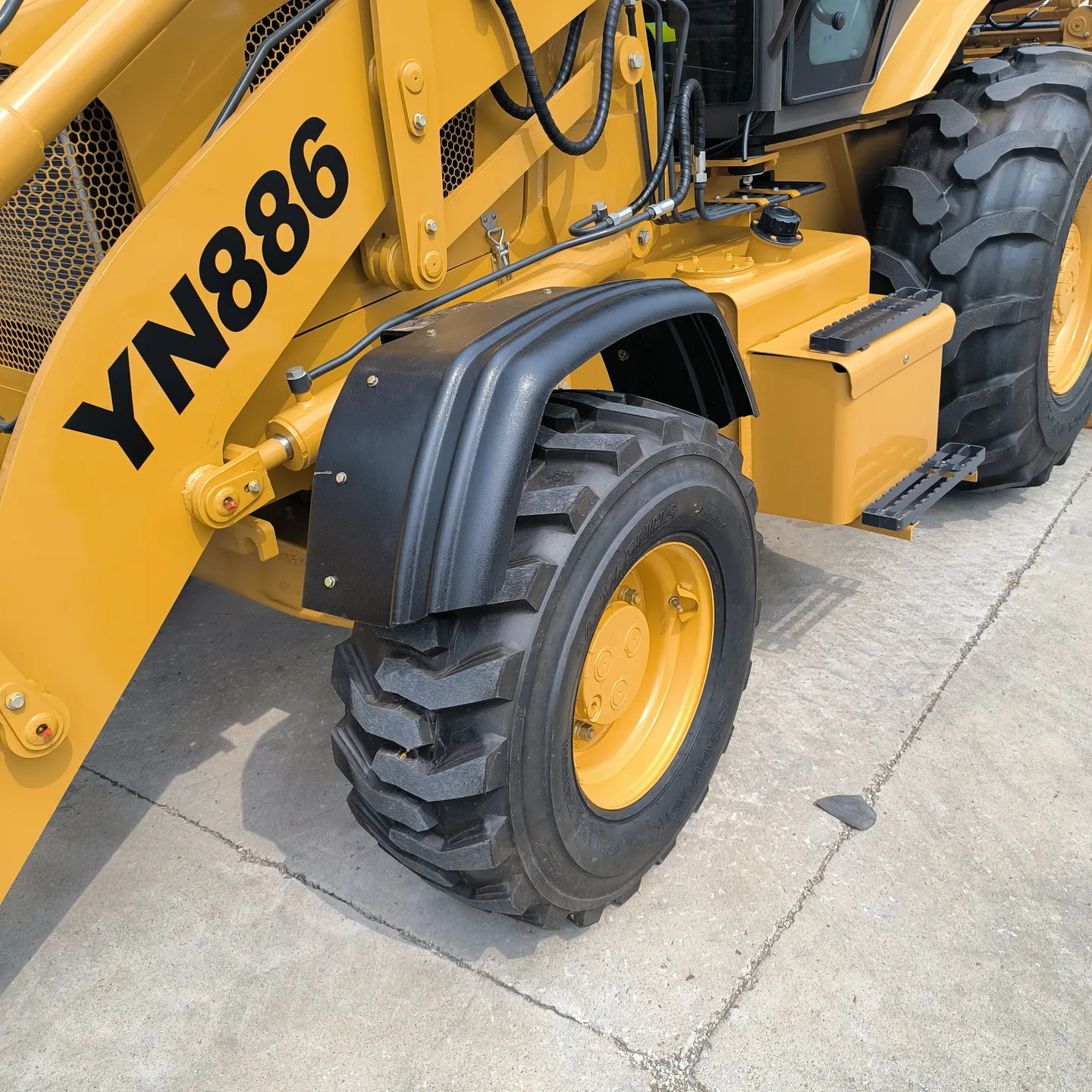

| Tyre size | 14-17.5 / 19.5L-24 |
| Gears (forward / reverse) | 4 / 4 |
Specifications are taken from manufacturer materials. Confirm the exact model, options and destination requirements before ordering.
