Earthmoving machineryRequest a quote for this equipment

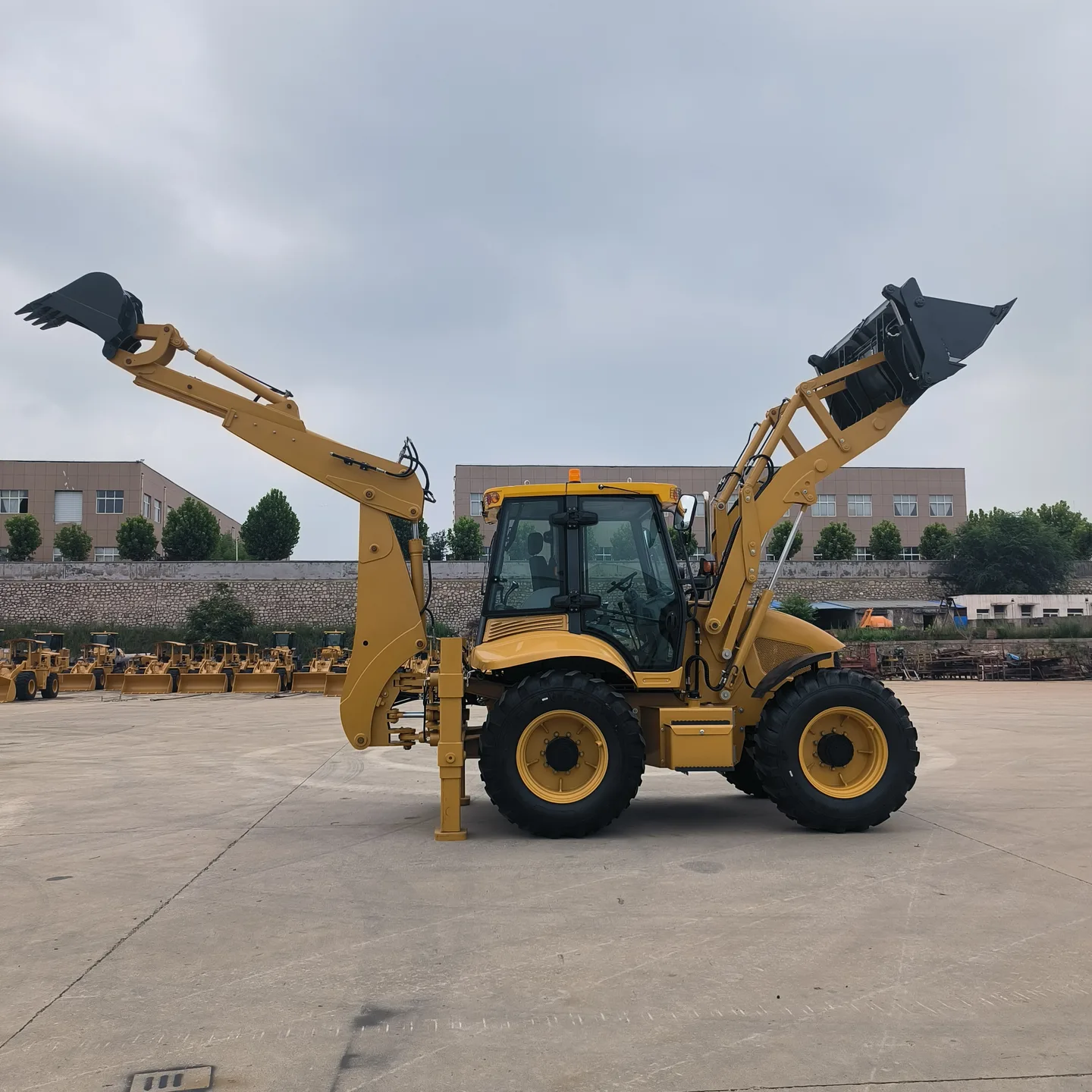

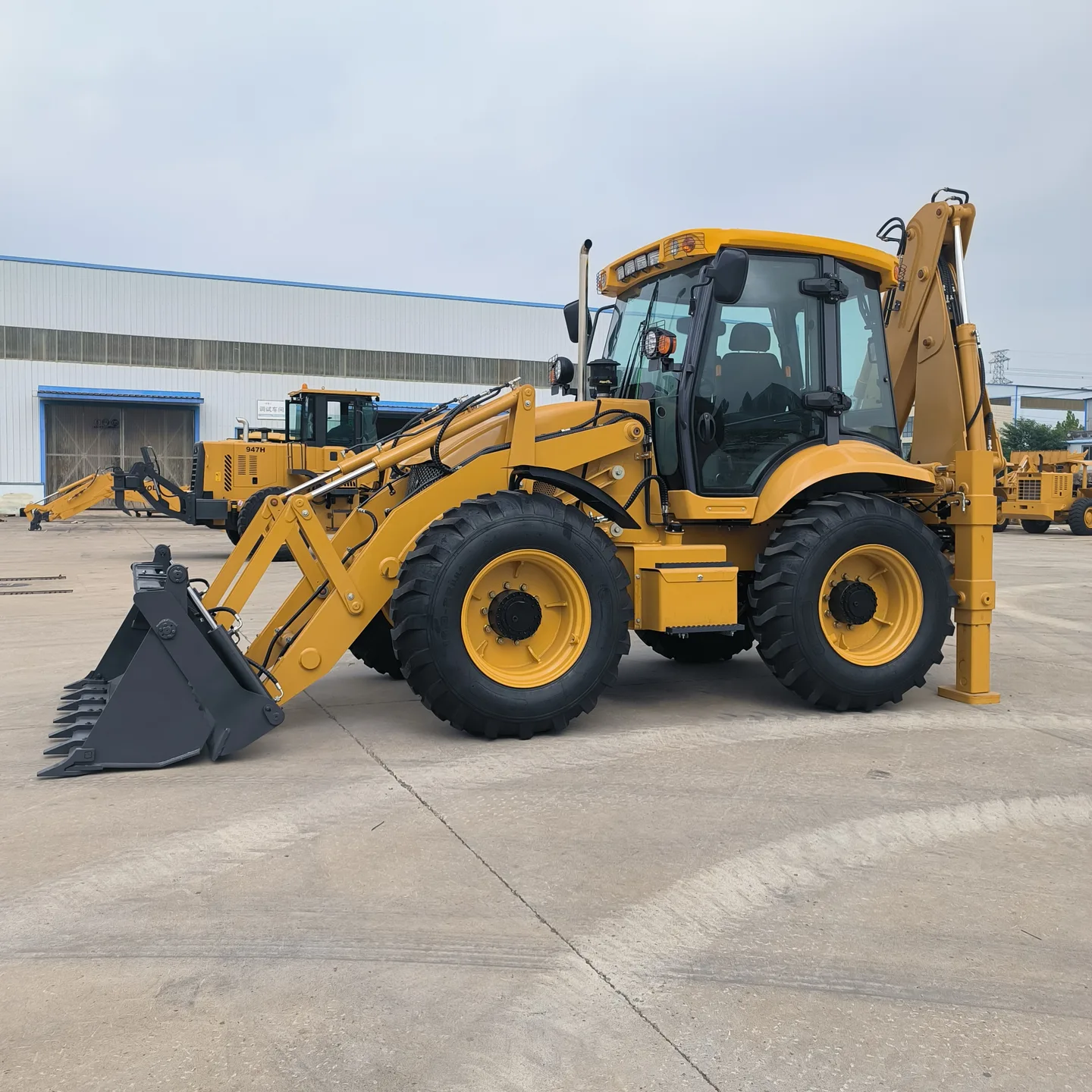

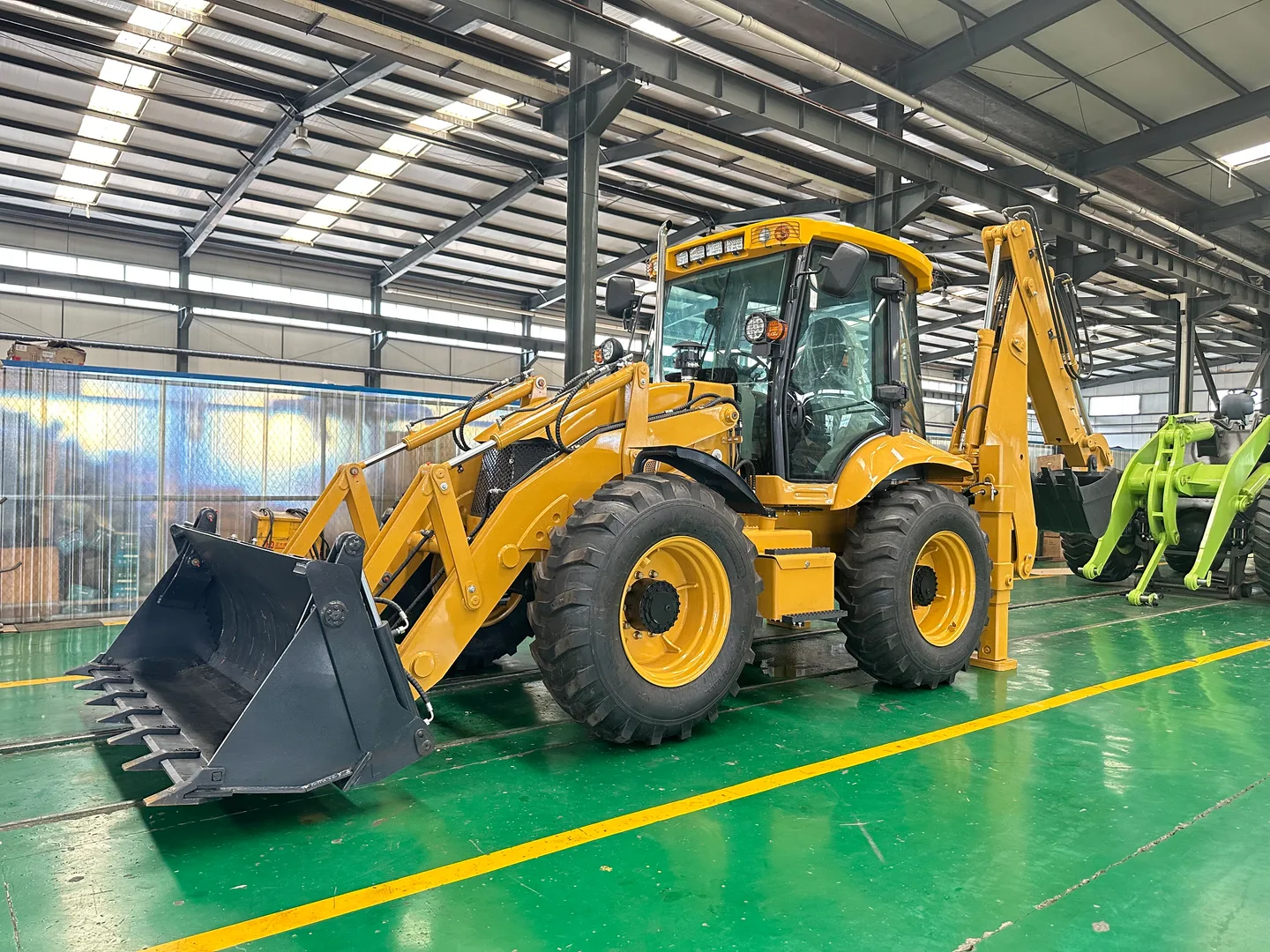

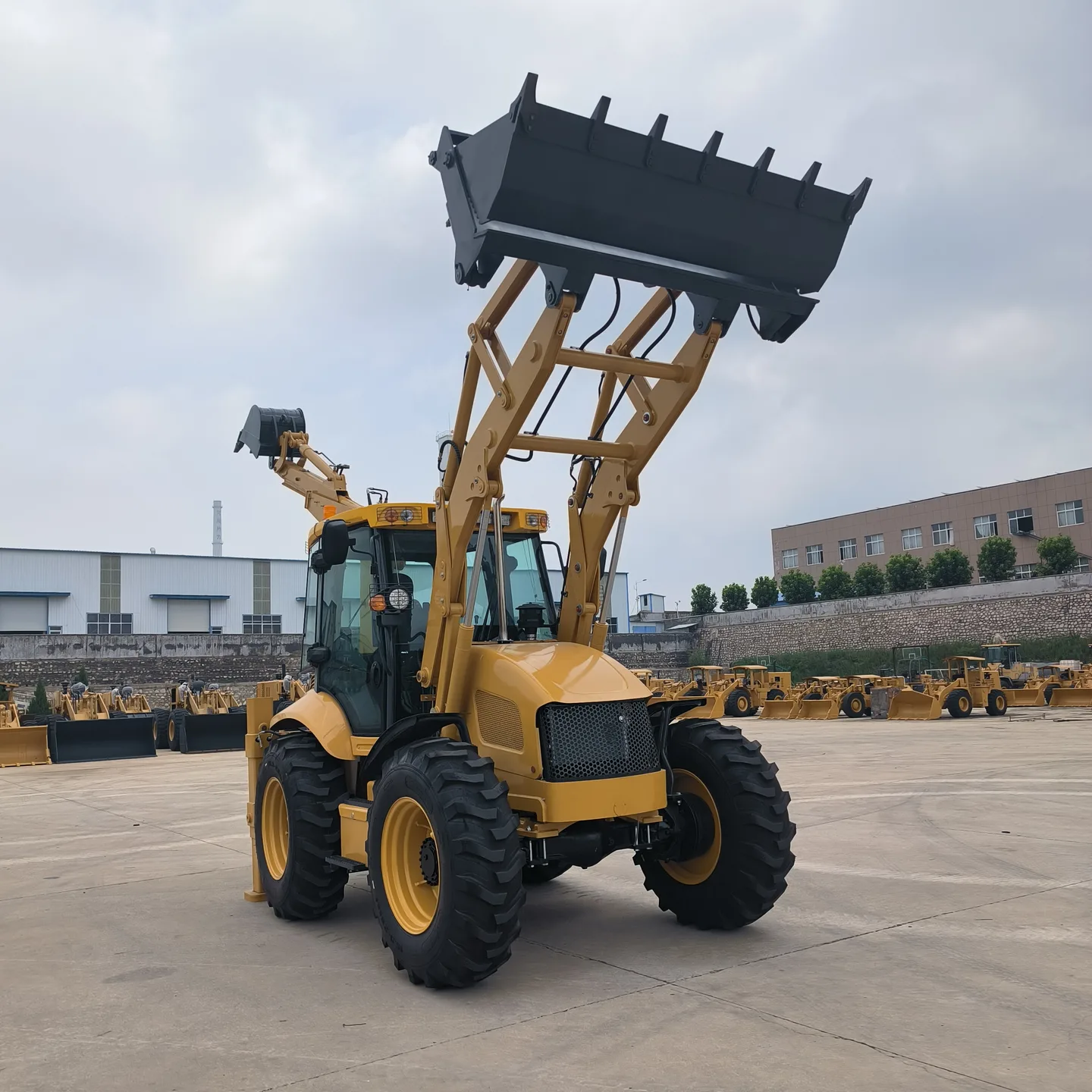

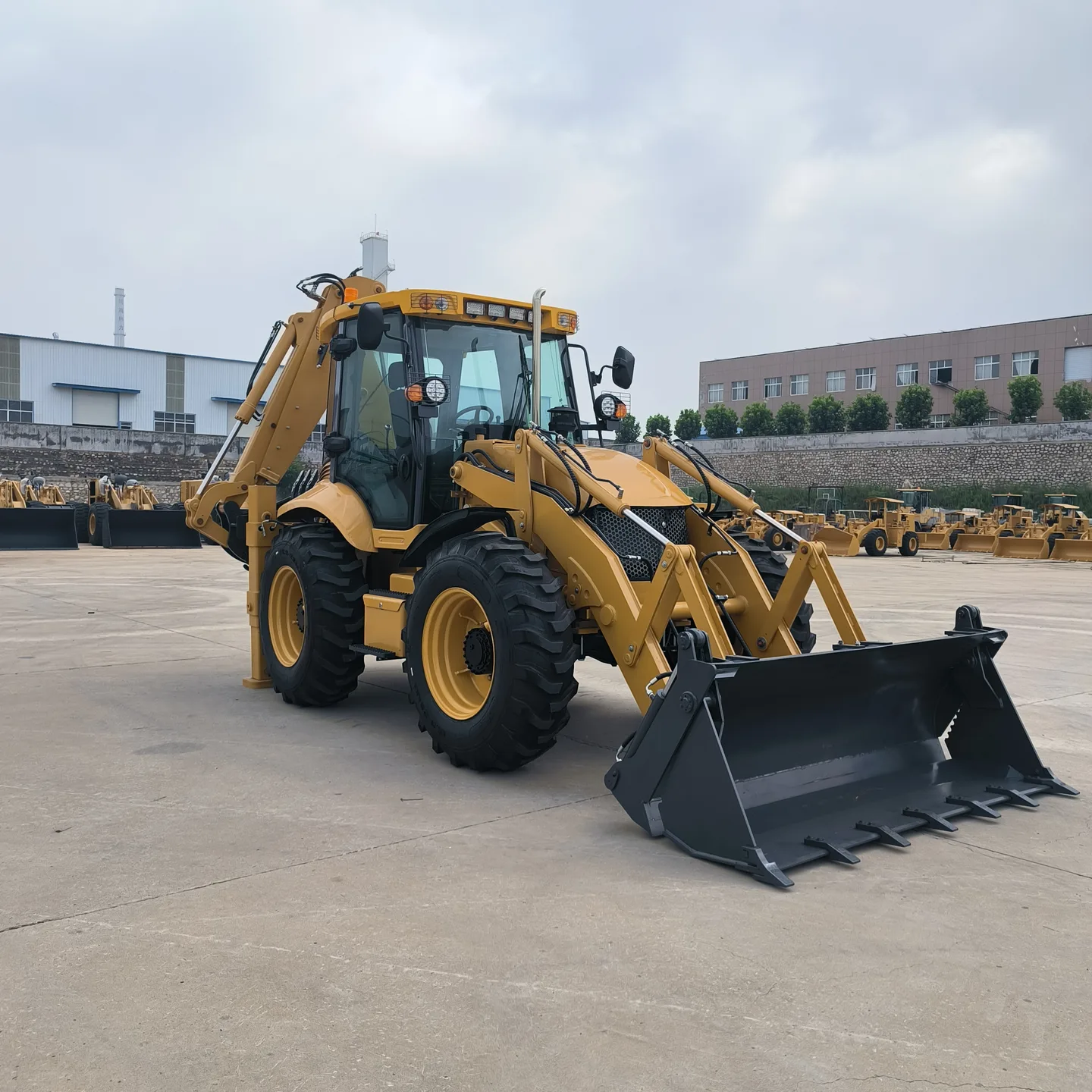

YN886H Backhoe Loader
YN886HCatalogue ref. P085

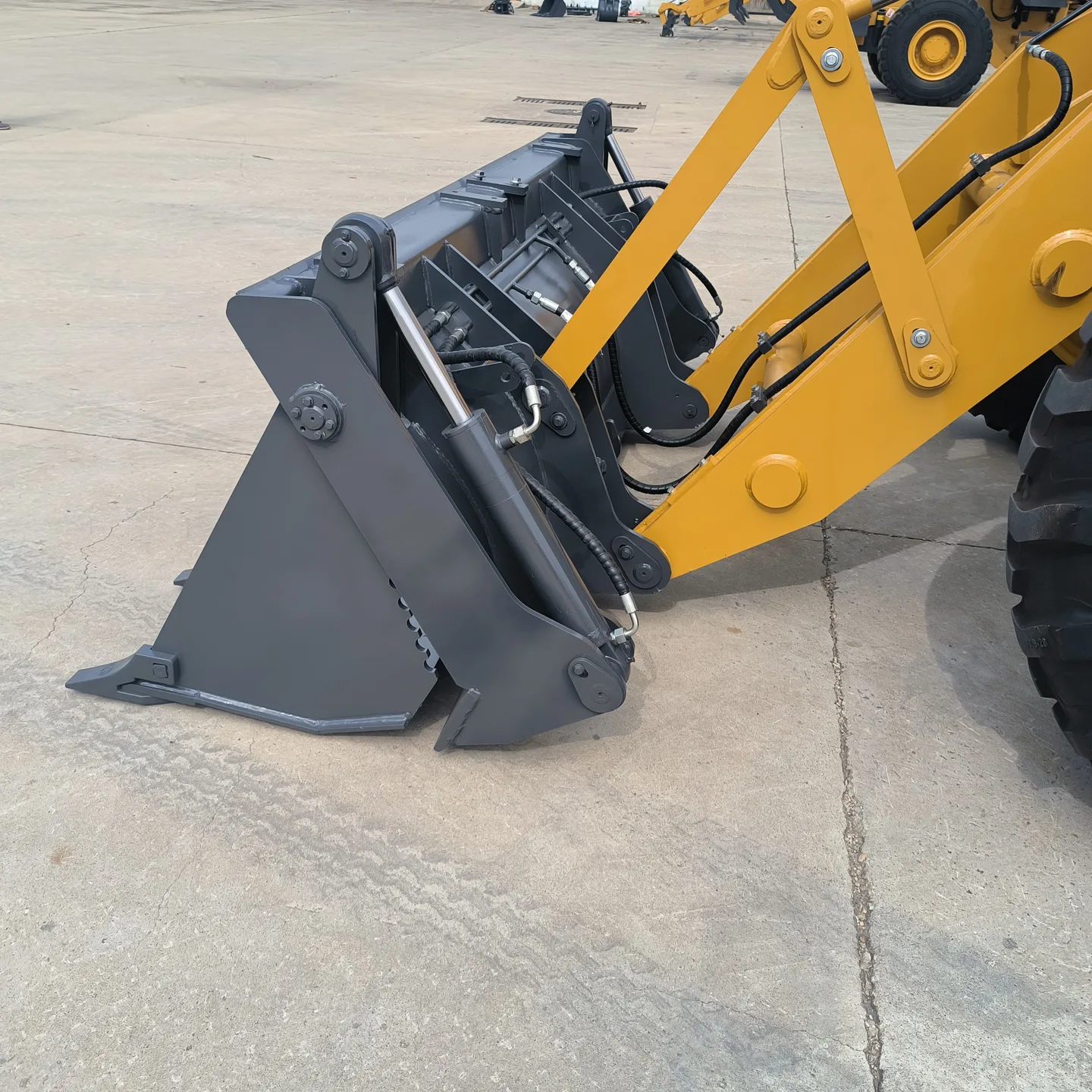

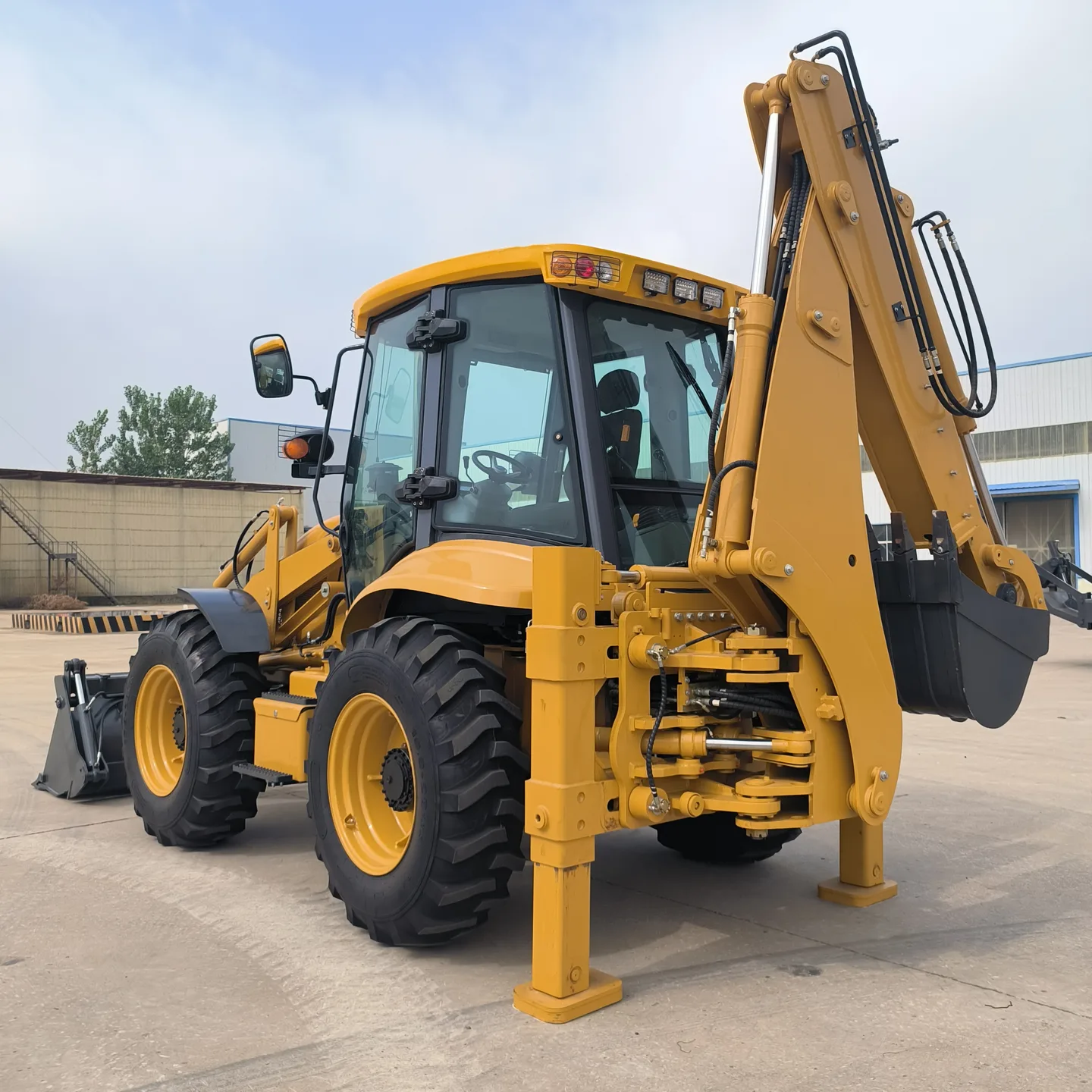

Backhoe loader with a 1.2 m³ front bucket and 0.3 m³ backhoe bucket. The supplied specification includes a telescopic digging arm.
Operating weight9300–10300 kg
Bucket capacity1.2 m³
Backhoe bucket capacity0.3 m³
Manufacturer / catalogue attributionYINENG
Share the quantity, destination and required configuration for a tailored quotation.
Specifications
| Operating weight | 9300–10300 kg |
|---|---|
| Bucket capacity | 1.2 m³ |
| Backhoe bucket capacity | 0.3 m³ |
| Loading lift capacity | 2500 kg |
| Engine model | YC4A105Z-T20 / 4BTA3.9-C100 |
| Rated power / speed | 75 / 74 kW at 2200 rpm |
| Overall dimensions (L × W × H) | 6450 × 2530 × 3940 mm |
| Dumping height | 3050 mm |
| Dumping reach | 870 mm |
| Maximum digging depth, telescopic arm | 3820–4970 mm |
| Wheelbase | 2335 mm |
| Minimum ground clearance | 300 mm |
| Backhoe swing angle | 180° |
| Maximum tractive force | 60 kN |
| Maximum travel speed | 36 km/h |
| Tyre size | 16.9-28 |
| Gears (forward / reverse) | 4 / 4 |
Specifications are taken from manufacturer materials. Confirm the exact model, options and destination requirements before ordering.
