Earthmoving machineryRequest a quote for this equipment

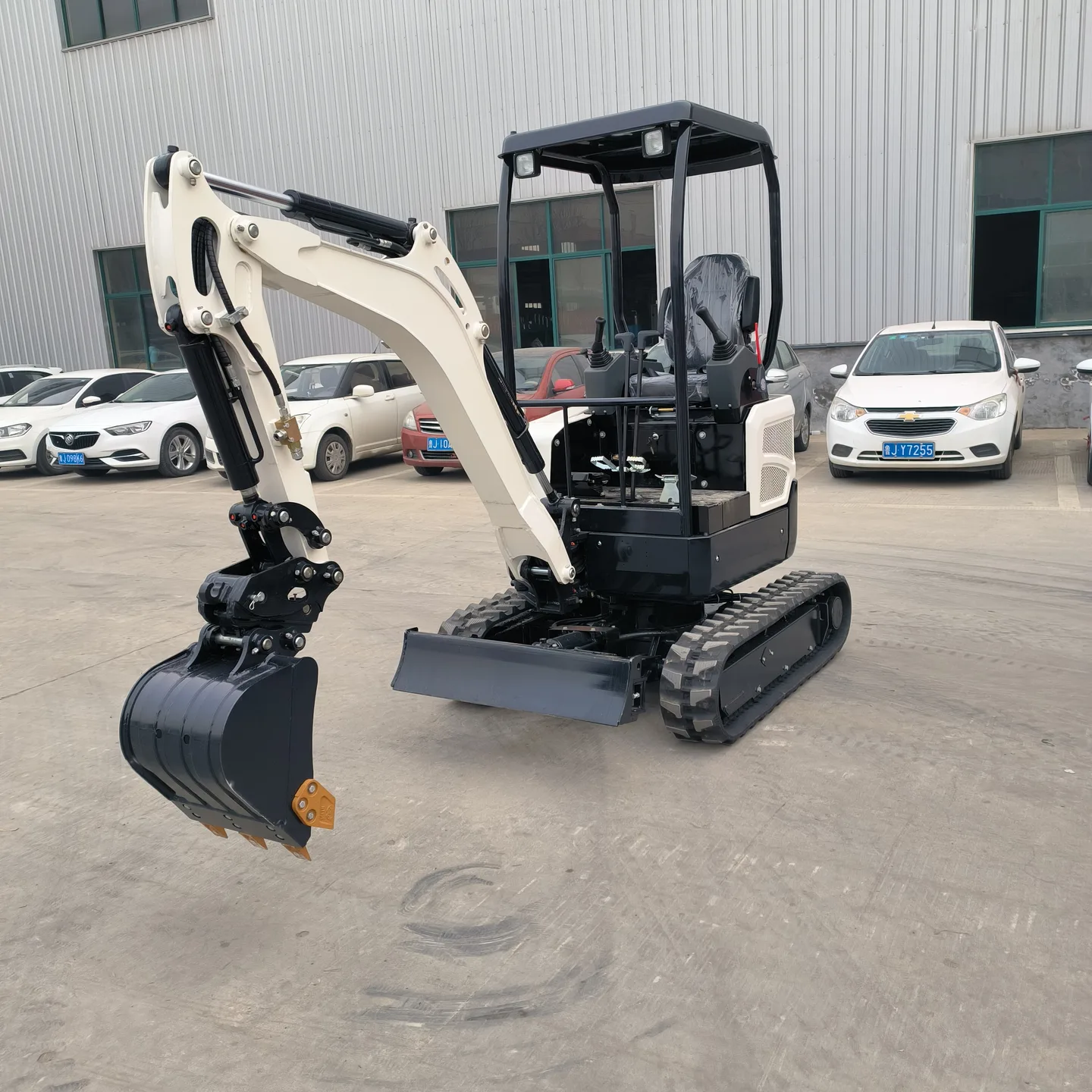

YN18 Mini Crawler Excavator
YN18Catalogue ref. P093

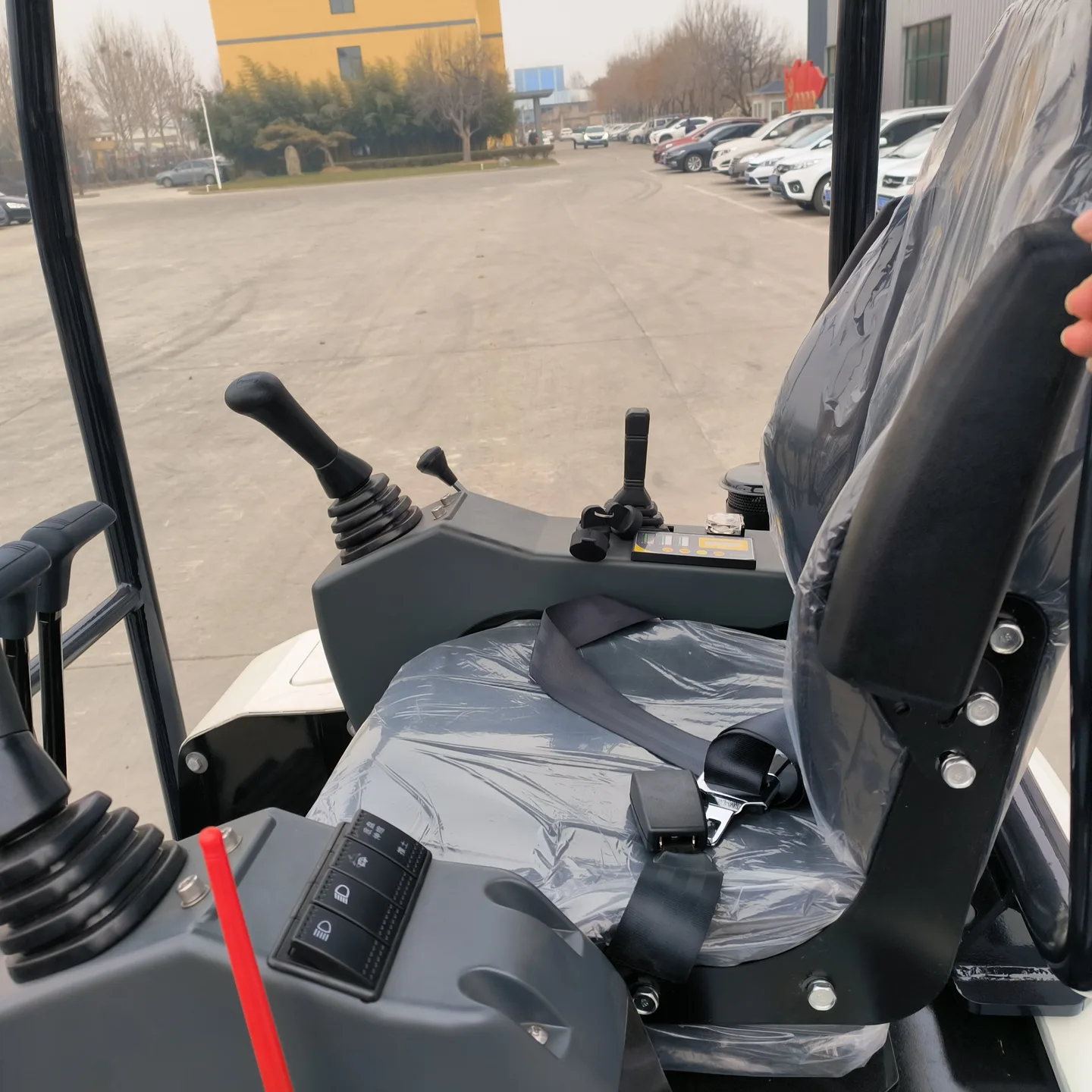

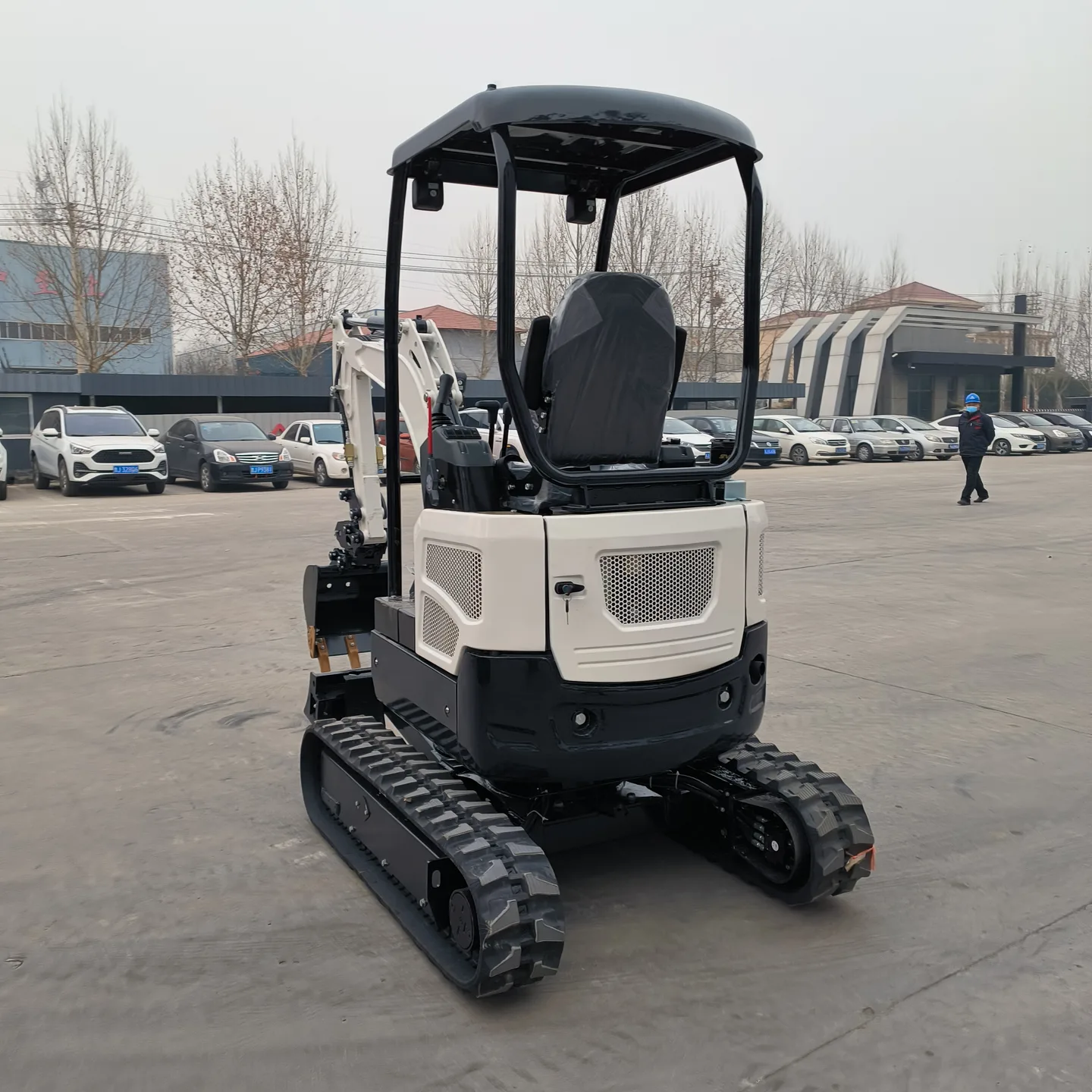

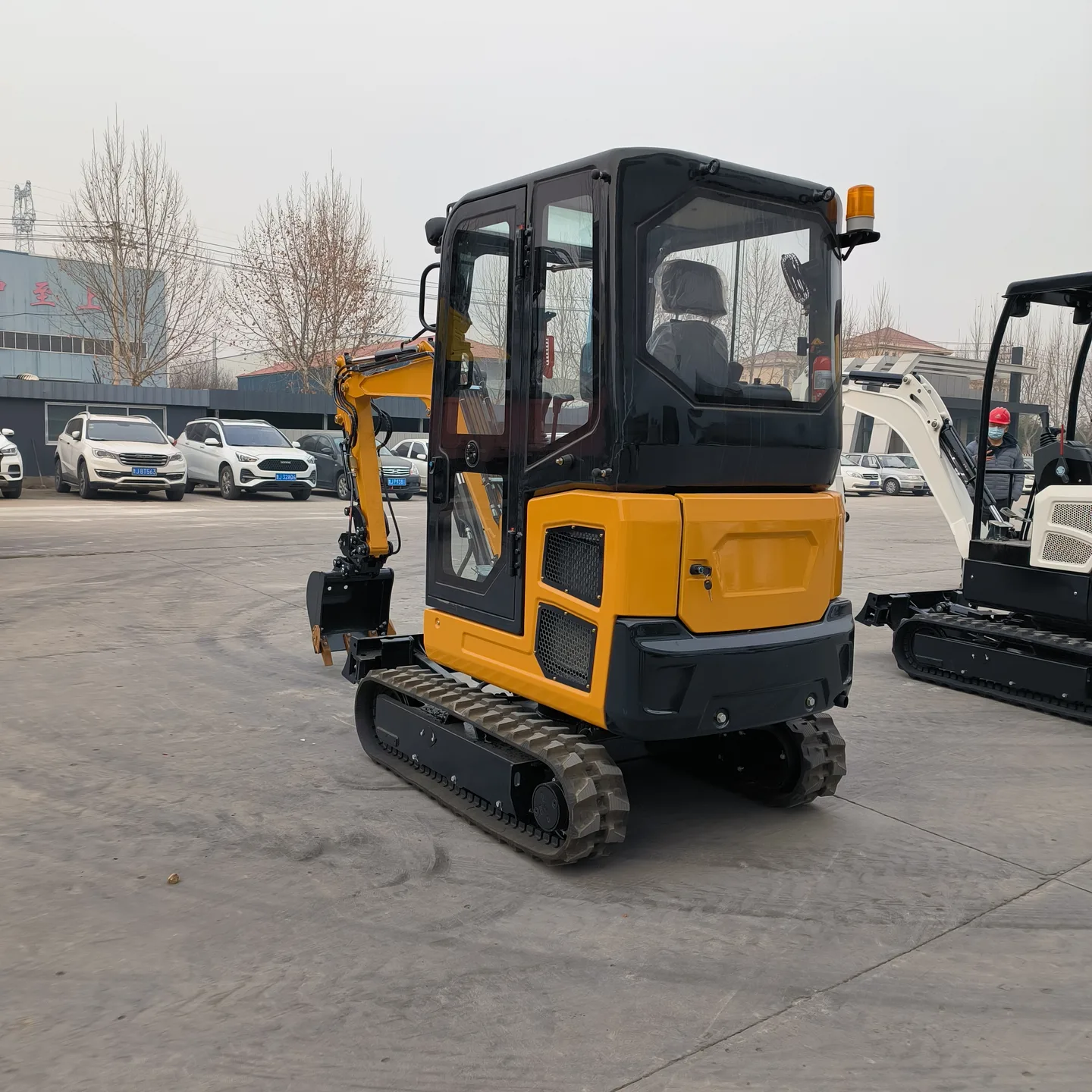

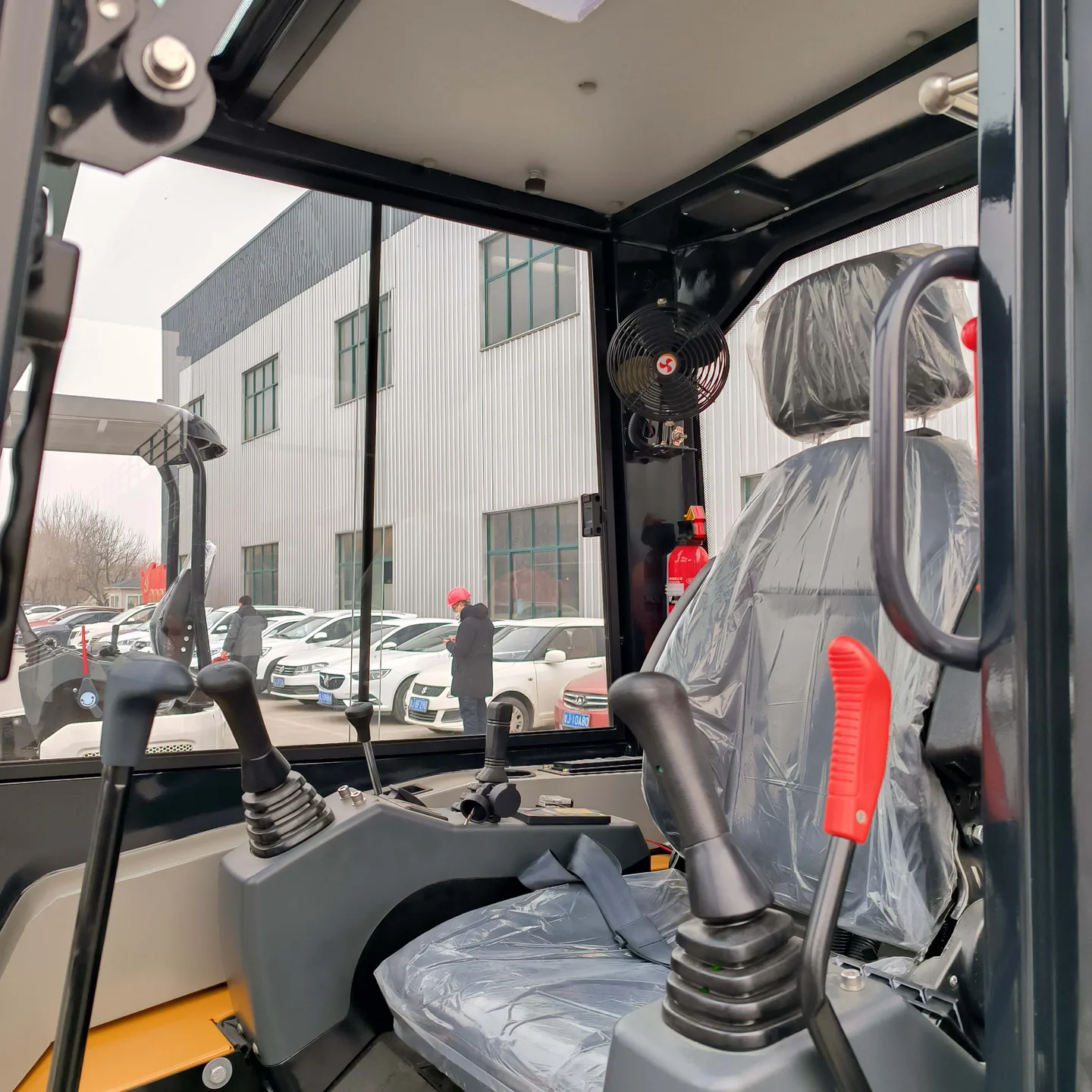

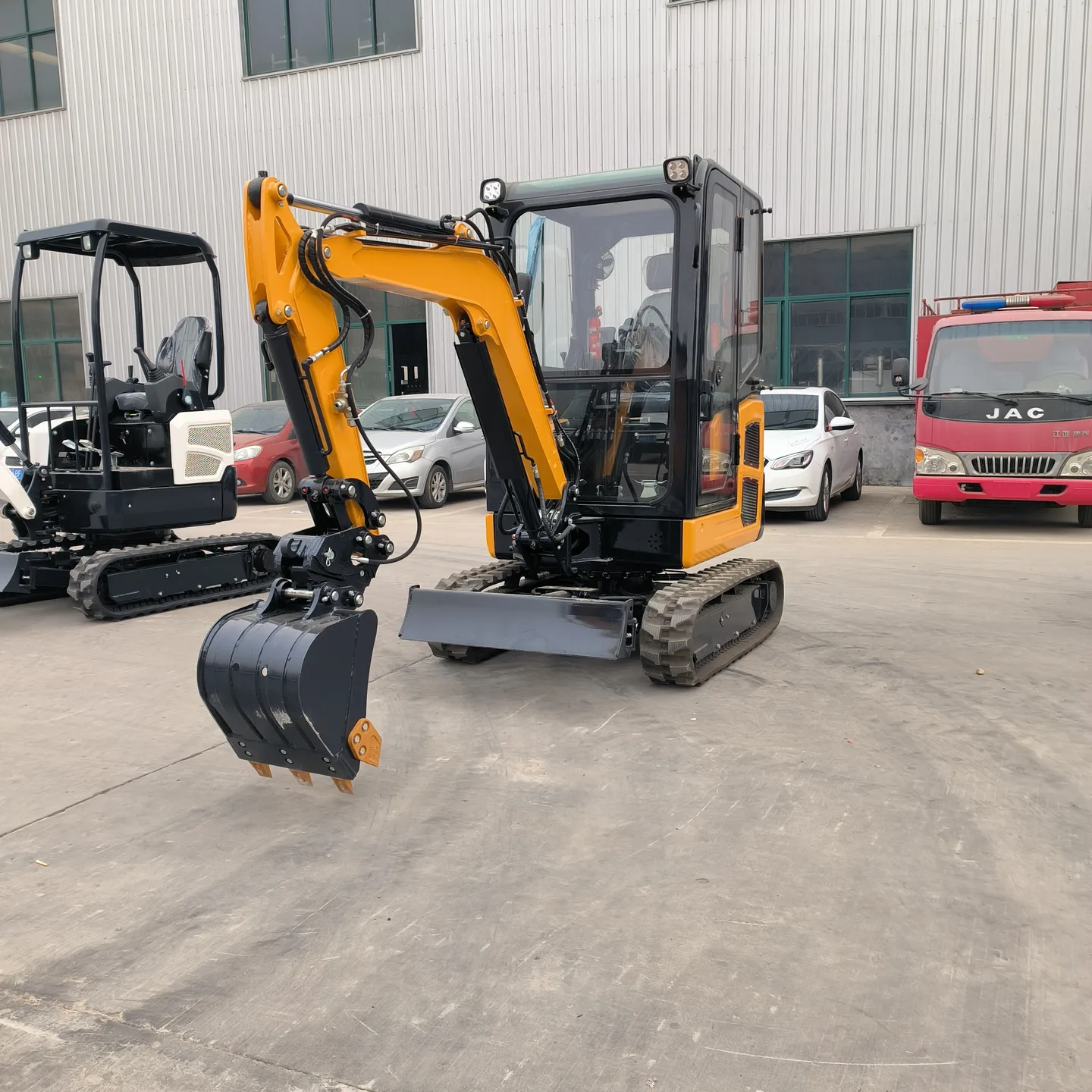

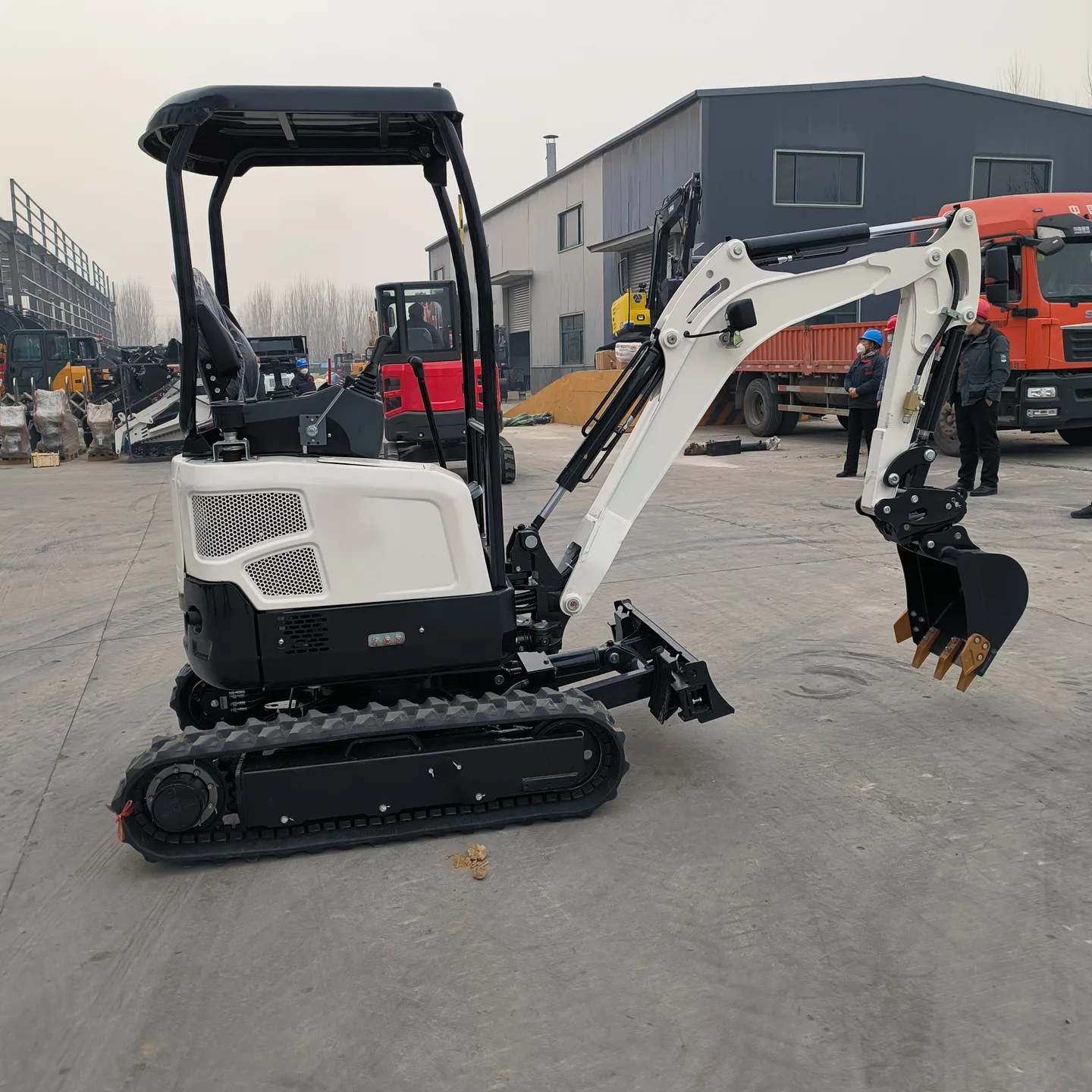

Compact 1800 kg crawler excavator with a 0.06 m³ bucket, a Laidong engine and left/right boom swing. The supplied material includes open-canopy and enclosed-cab configurations.
Operating weight1800 kg
Bucket capacity0.06 m³
Engine modelLAIDONG 3TE25
Manufacturer / catalogue attributionYINENG
Share the quantity, destination and required configuration for a tailored quotation.
Specifications
| Operating weight | 1800 kg |
|---|---|
| Bucket capacity | 0.06 m³ |
| Engine model | LAIDONG 3TE25 |
| Rated power / speed | 18.4 kW / 2350 rpm |
| Overall dimensions (L × W × H) | 3865 × 1050 × 2270 mm |
| Maximum digging depth | 2050 mm |
| Maximum digging height | 3365 mm |
| Maximum dumping height | 2385 mm |
| Maximum digging radius | 3860 mm |
| Maximum bucket digging force | 14 kN |
| Maximum arm digging force | 10 kN |
| Maximum travel speed | 2.5 km/h |
| Track shoe width | 230 mm |
| Minimum ground clearance | 210 mm |
| Hydraulic system pressure | 18 MPa |
| Swing speed | 10–12 rpm |
| Boom swing angle, left | 75° |
| Boom swing angle, right | 45° |
| Number of cylinders | 3 |
Specifications are taken from manufacturer materials. Confirm the exact model, options and destination requirements before ordering.
