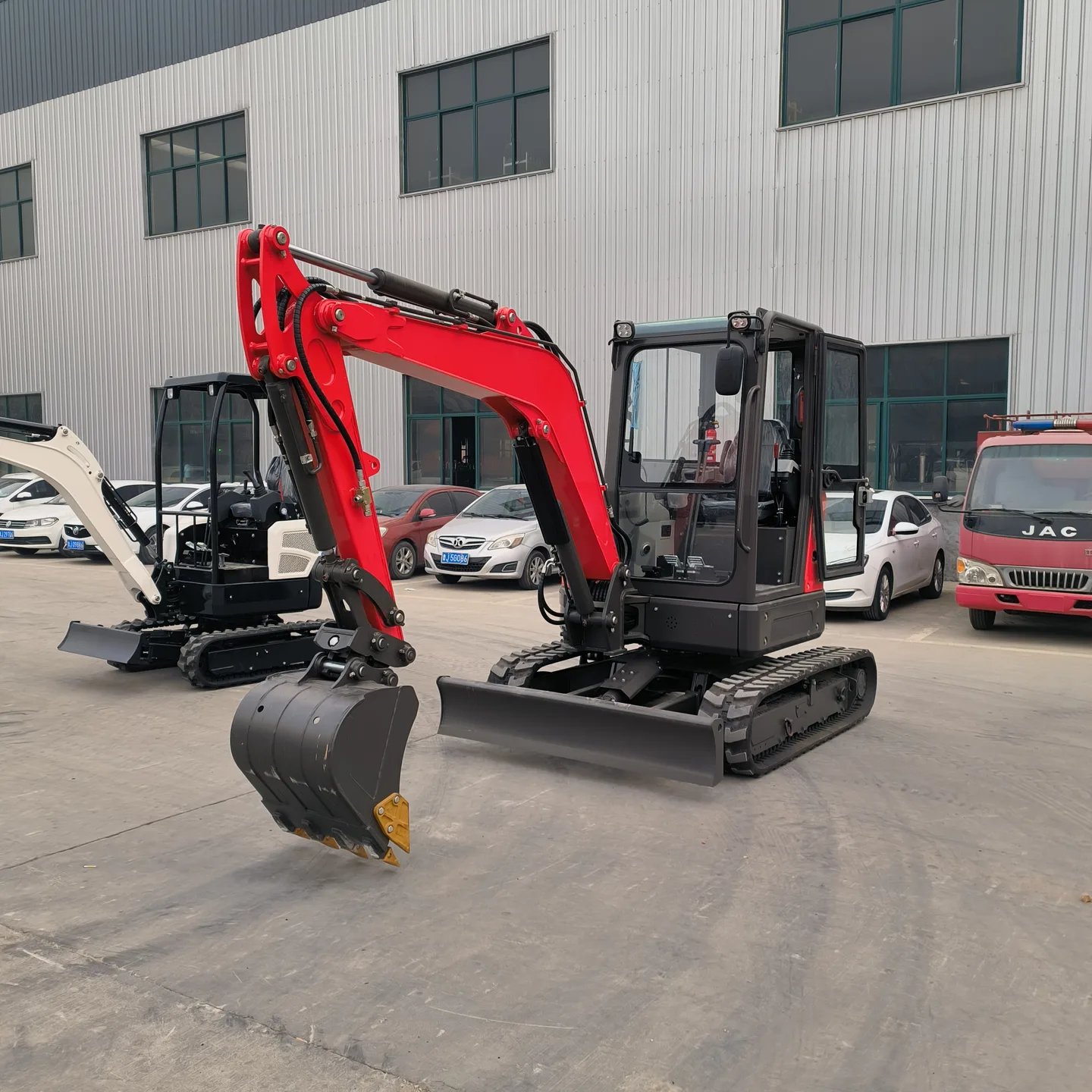

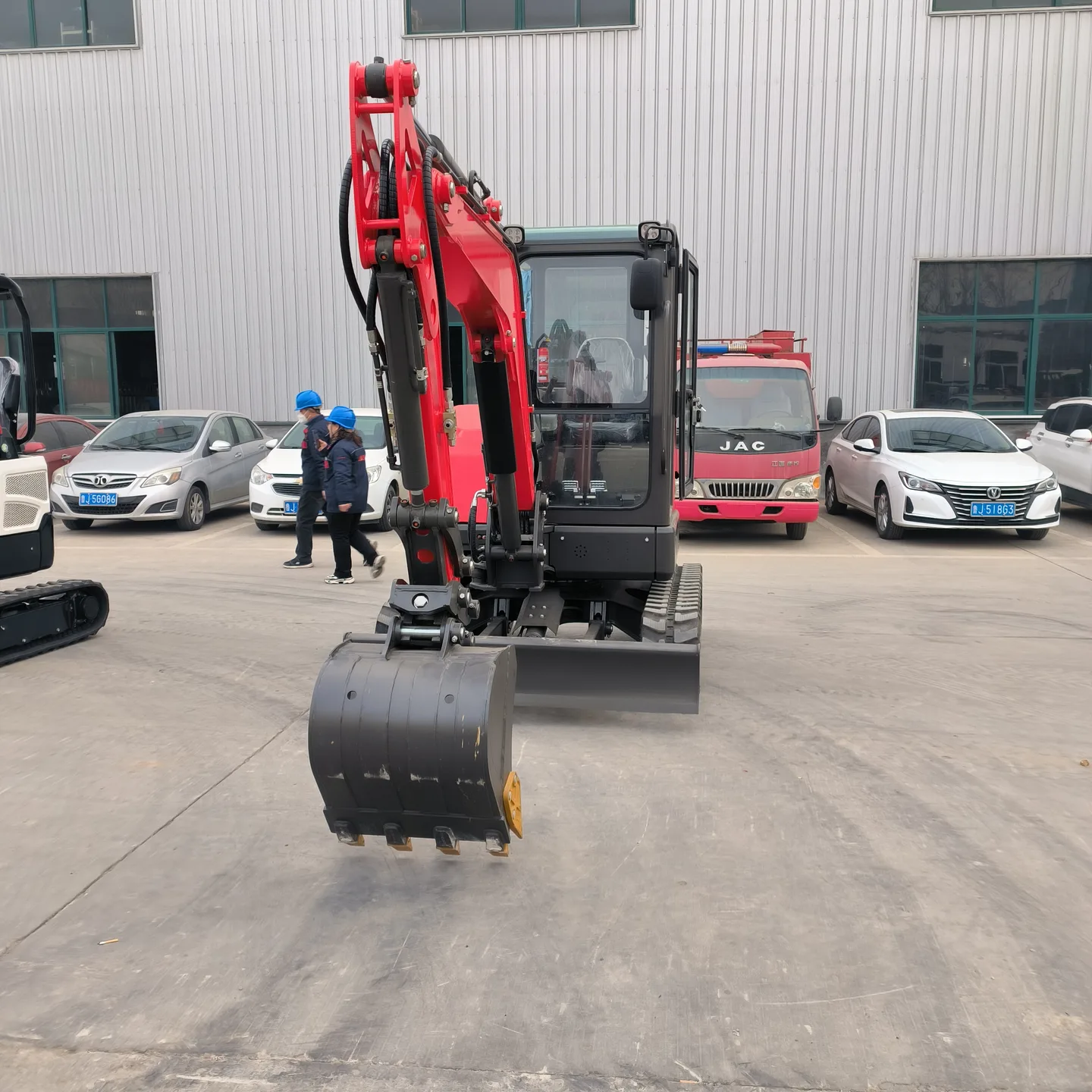

YN35 Crawler Excavator
YN35Catalogue ref. P094

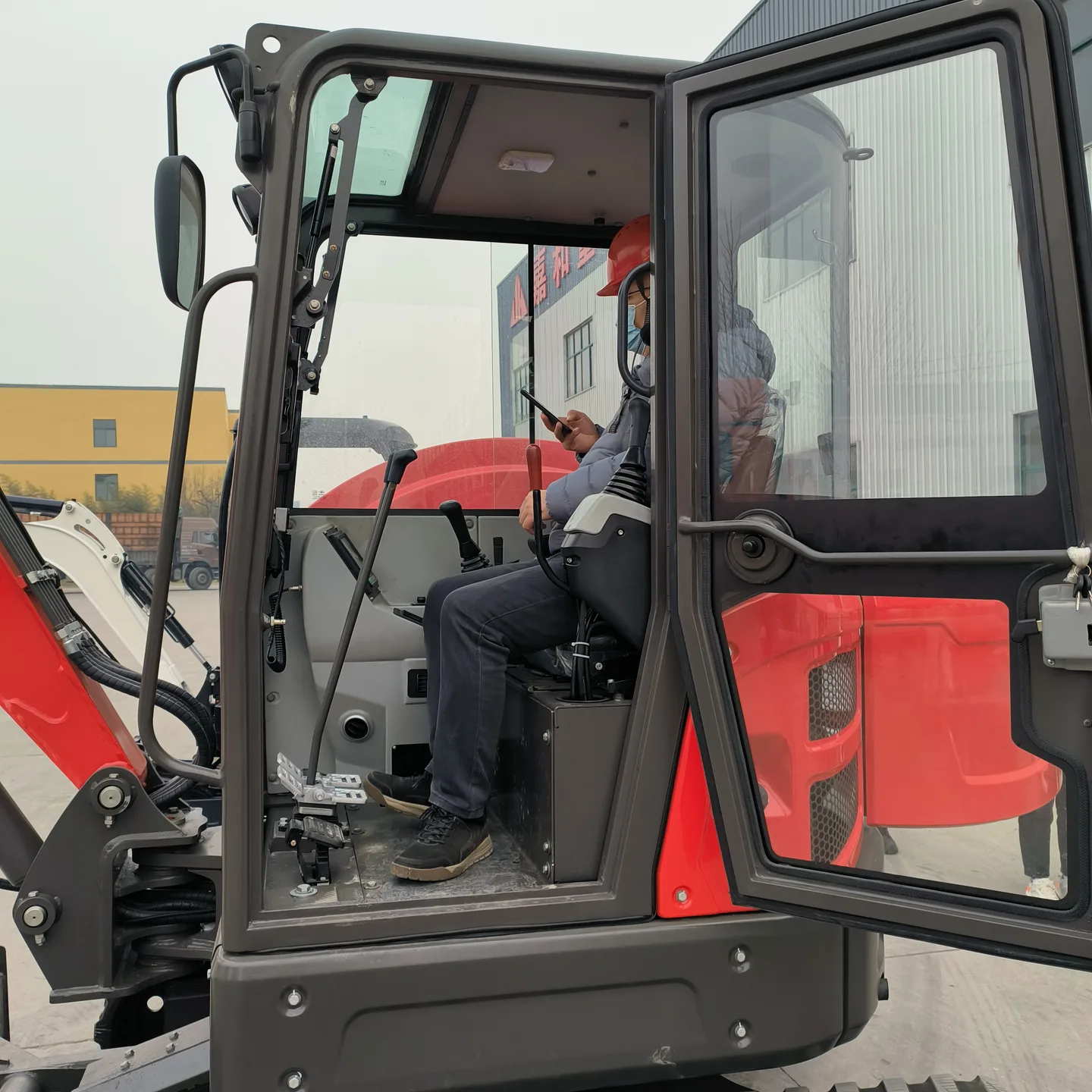

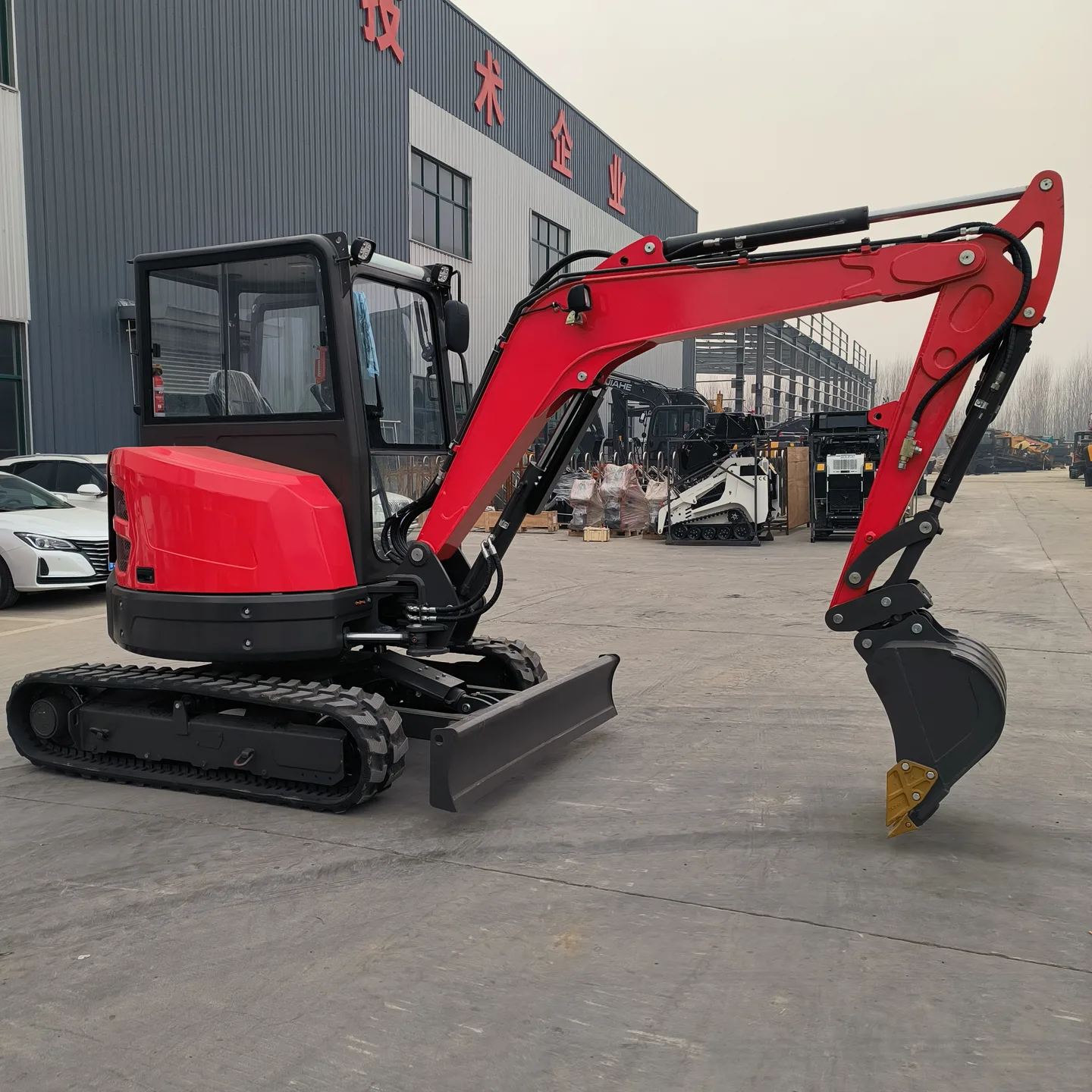

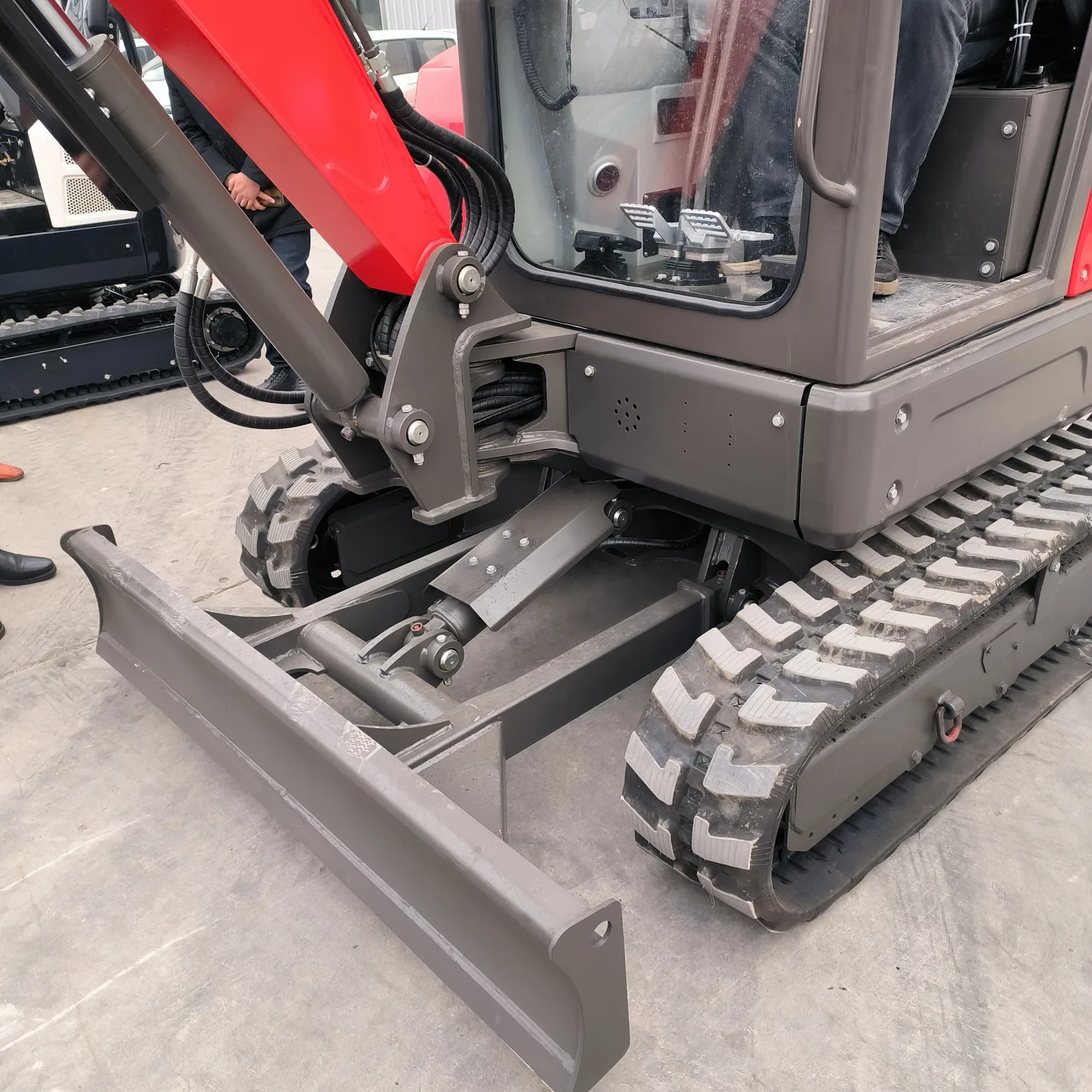

3810 kg crawler excavator with a 0.12 m³ bucket and a Kubota D1703 engine. A swing boom and hydraulic pilot controls support digging in confined areas.
Operating weight3810 kg
Bucket capacity0.12 m³

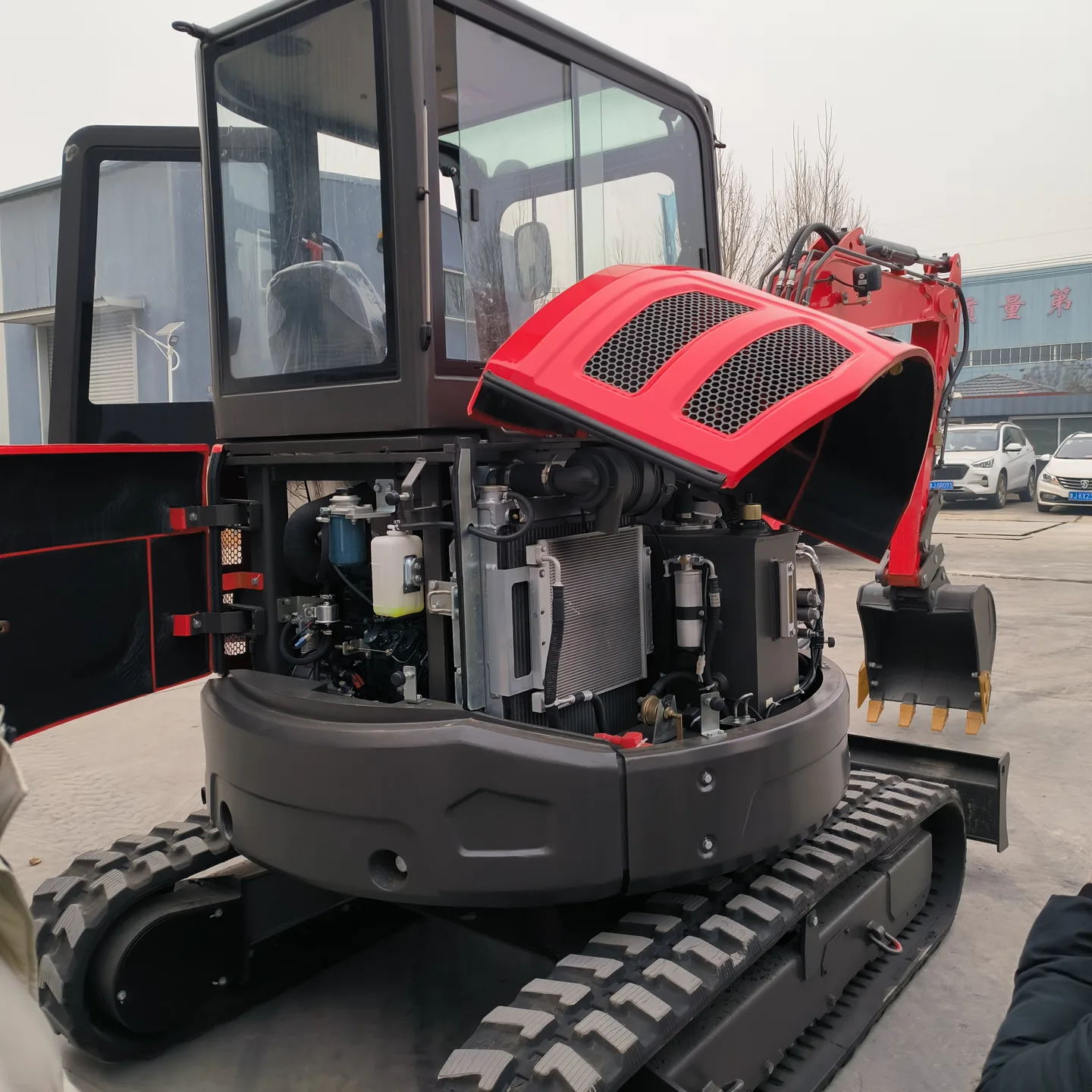

Engine modelKUBOTA D1703
Manufacturer / catalogue attributionYINENG
Share the quantity, destination and required configuration for a tailored quotation.
Specifications
| Operating weight | 3810 kg |
|---|---|
| Bucket capacity | 0.12 m³ |
| Engine model | KUBOTA D1703 |
| Rated power / speed | 18.5 kW / 2200 rpm |
| Overall dimensions (L × W × H) | 4915 × 1720 × 2525 mm |
| Maximum digging depth | 3208 mm |
| Maximum digging height | 4800 mm |
| Maximum dumping height | 3406 mm |
| Maximum digging radius | 5480 mm |
| Maximum bucket digging force | 30.4 kN |
| Maximum arm digging force | 18.2 kN |
| Travel speed (high / low) | 4.4 / 2.4 km/h |
| Steel track shoe width | 300 mm |
| Minimum ground clearance | 295 mm |
| Hydraulic system pressure | 22.5 MPa |
| Swing speed | 12 rpm |
| Boom swing angle, left | 55° |
| Boom swing angle, right | 65° |
| Fuel tank capacity | 40 L |
| Number of cylinders | 3 |
Specifications are taken from manufacturer materials. Confirm the exact model, options and destination requirements before ordering.
