Earthmoving machineryRequest a quote for this equipment

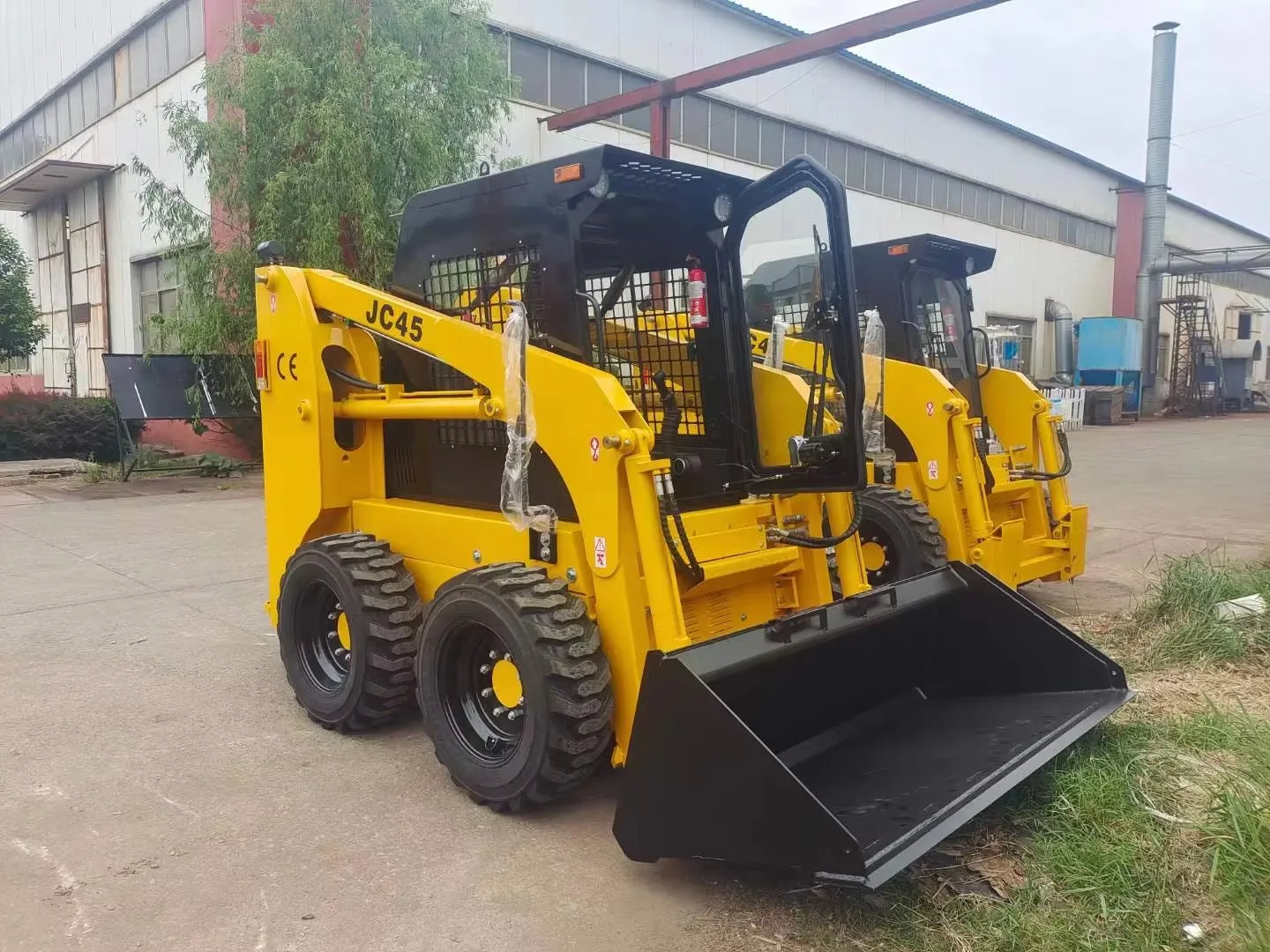

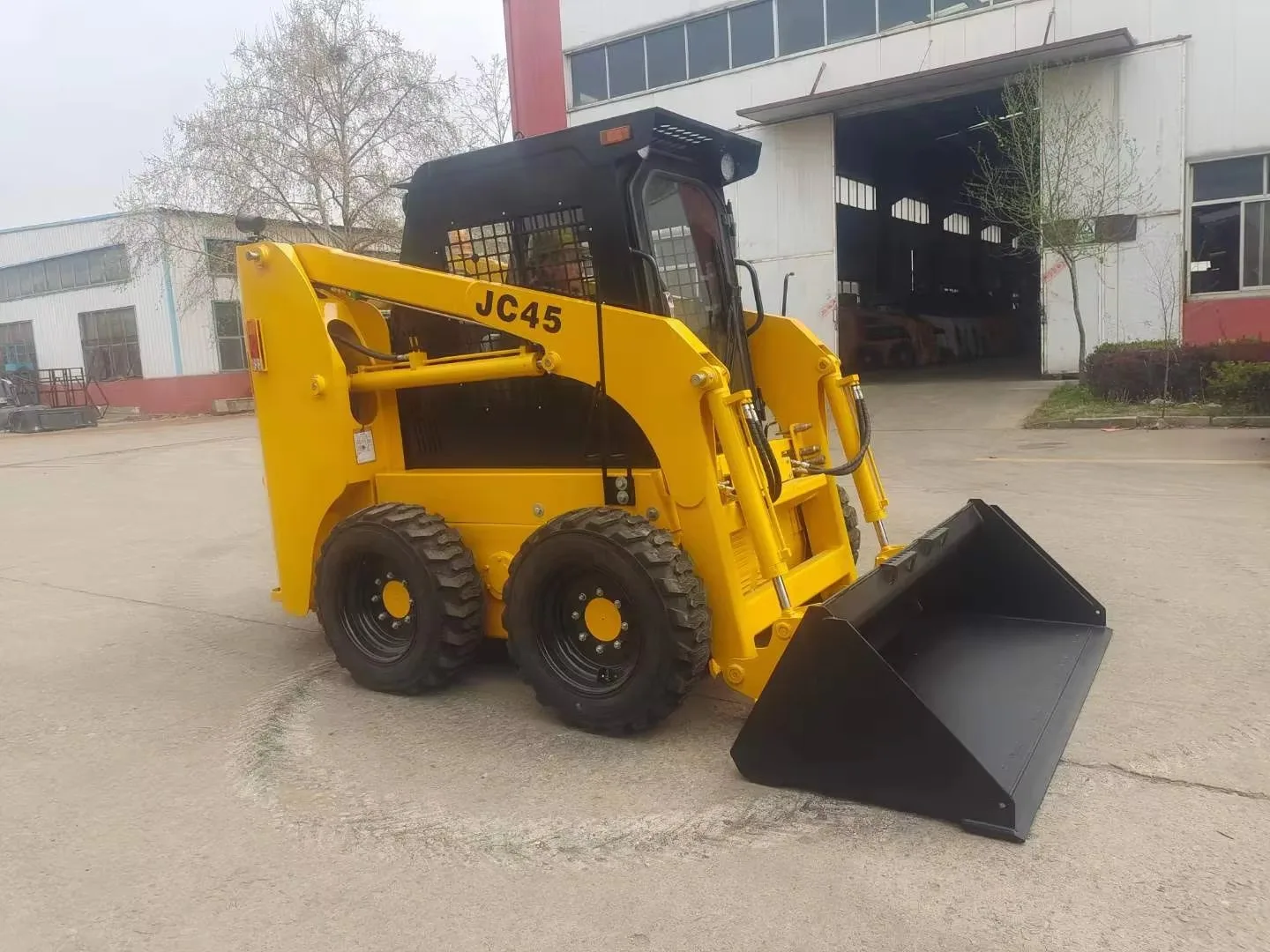

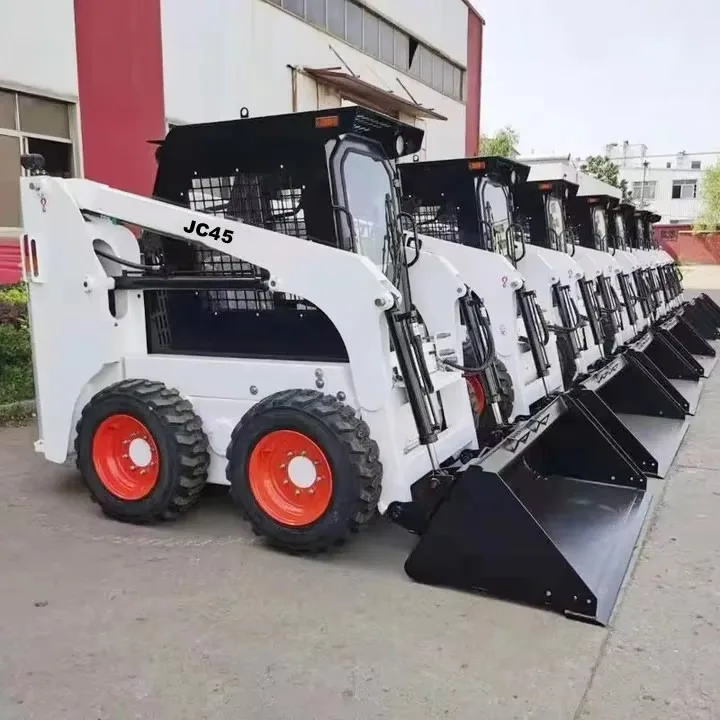

JC45 Wheeled Skid Steer Loader
JC45Catalogue ref. P097
A compact wheeled skid steer loader for loading and material handling in narrow work areas. Open or enclosed cab and mechanical or hydraulic controls are available, with a quick hitch for interchangeable attachments.
Rated operating capacity700 kg
Tipping load1400 kg
Bucket capacity0.4 m³
Manufacturer / catalogue attributionTAMEC
Share the quantity, destination and required configuration for a tailored quotation.
Specifications
| Rated operating capacity | 700 kg |
|---|---|
| Tipping load | 1400 kg |
| Bucket capacity | 0.4 m³ |
| Hydraulic pump flow | 75 L/min |
| Engine power | 50 hp |
| Machine weight | 3100 kg |
| Maximum travel speed | 12 km/h |
| Gradeability | 20° |
| Tire size | 10-16.5 |
| Fuel / hydraulic oil capacity | 65 / 65 L |
| Maximum operating height | 3980 mm |
| Hinge pin height | 3080 mm |
| Overall height | 2050 mm |
| Length with bucket | 3420 mm |
| Length without bucket | 2640 mm |
| Width with bucket | 1740 mm |
| Track width | 1450 mm |
| Wheelbase | 991 mm |
| Ground clearance | 185 mm |
| Dumping angle | 40° |
| Dumping height | 2380 mm |
| Dumping reach | 750 mm |
Specifications are taken from manufacturer materials. Confirm the exact model, options and destination requirements before ordering.
