Earthmoving machineryRequest a quote for this equipment

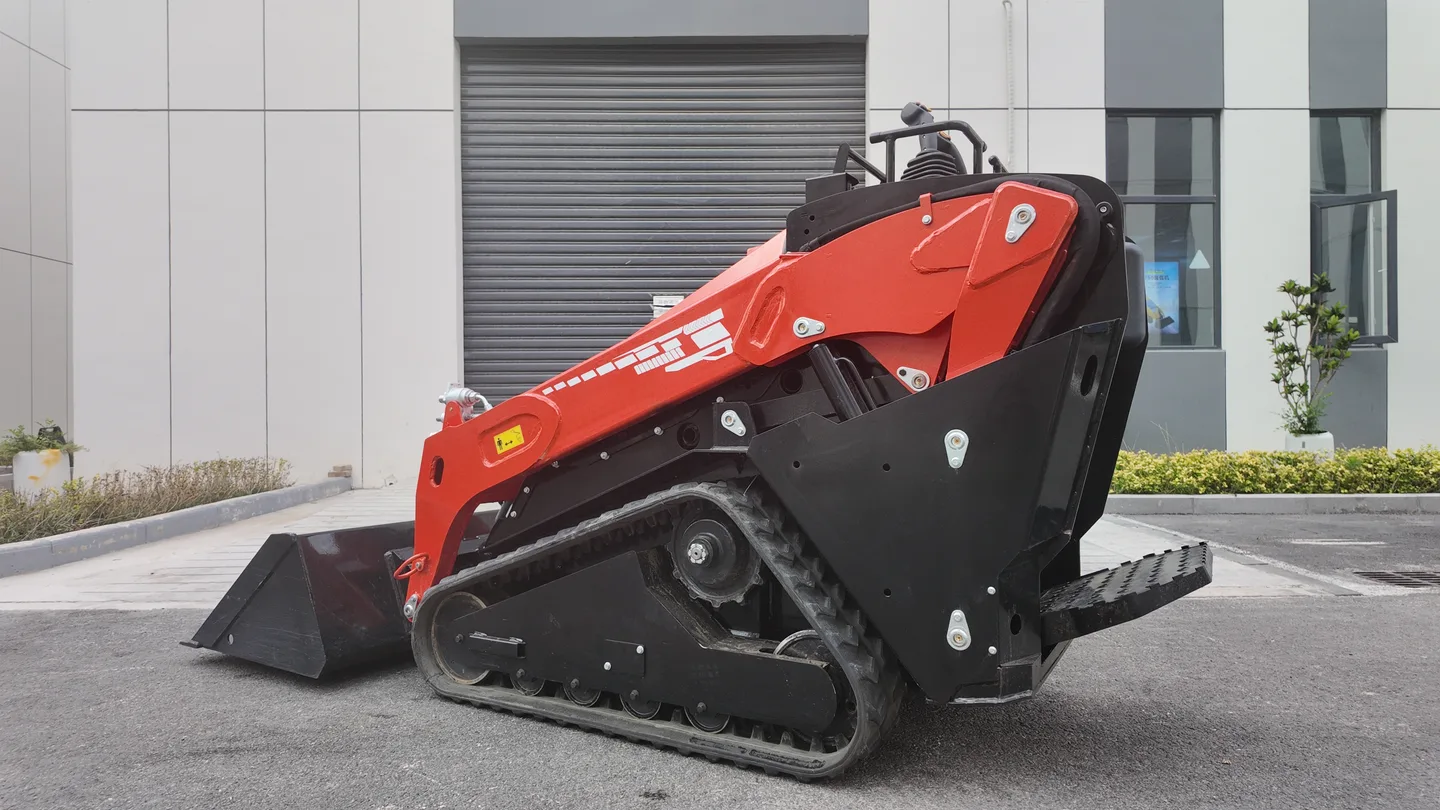

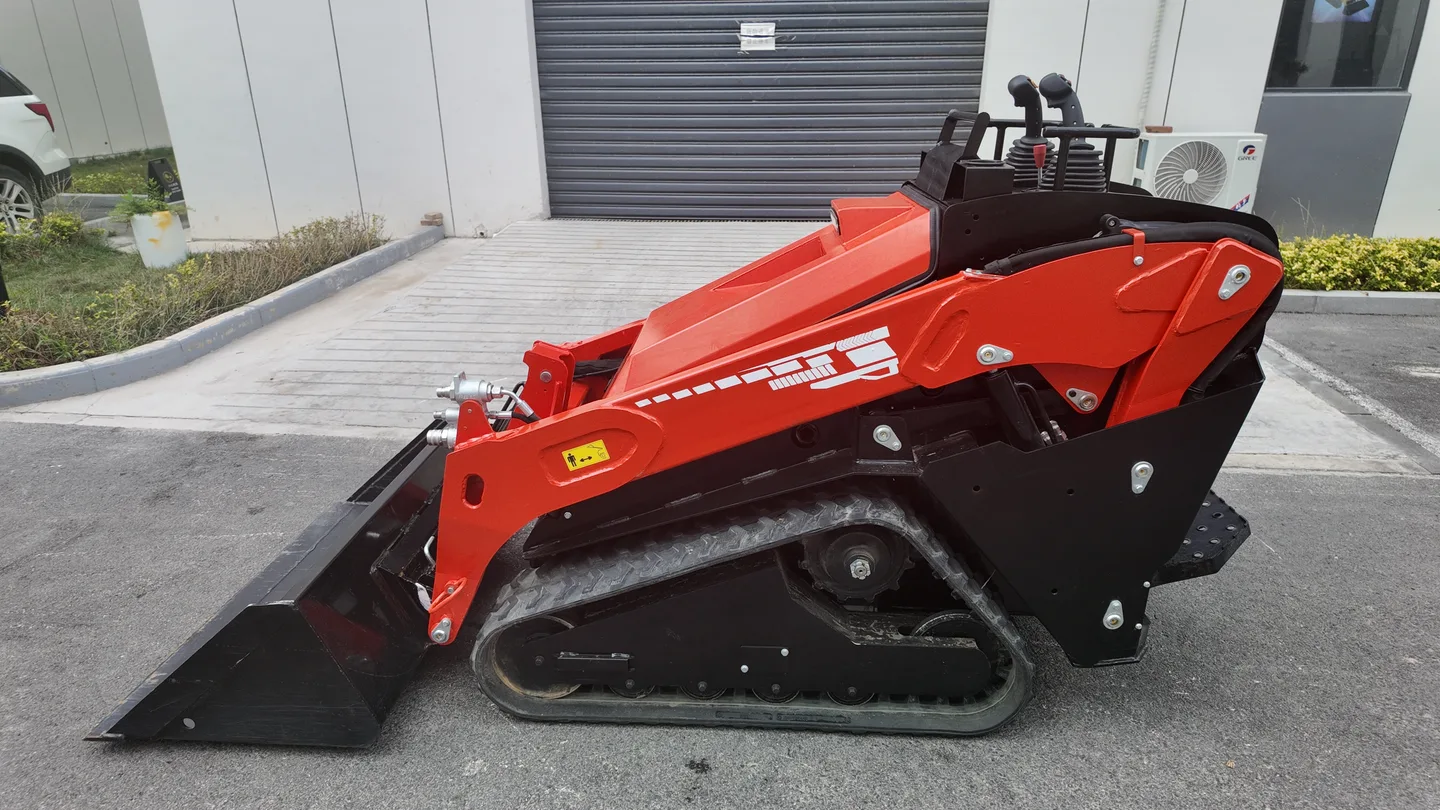

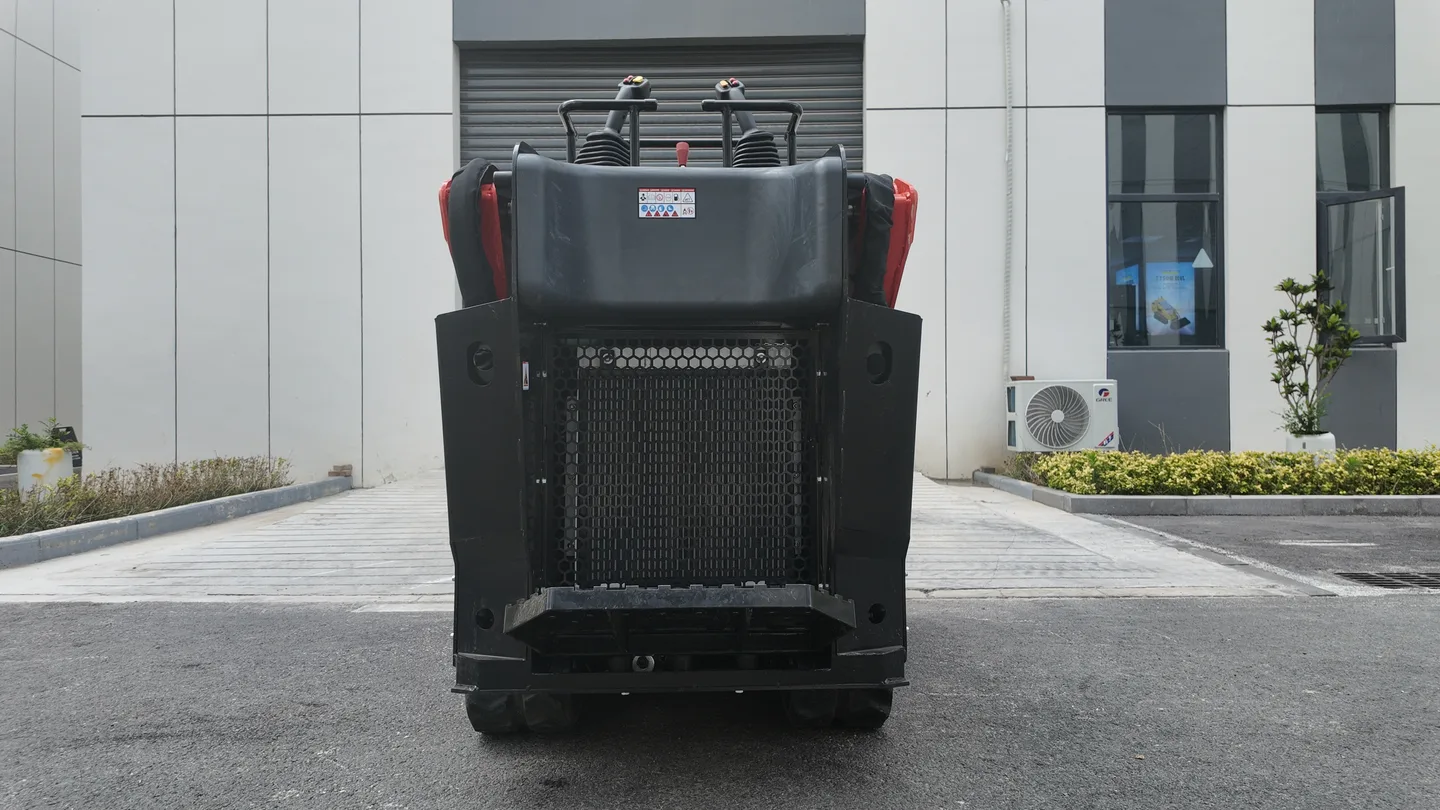

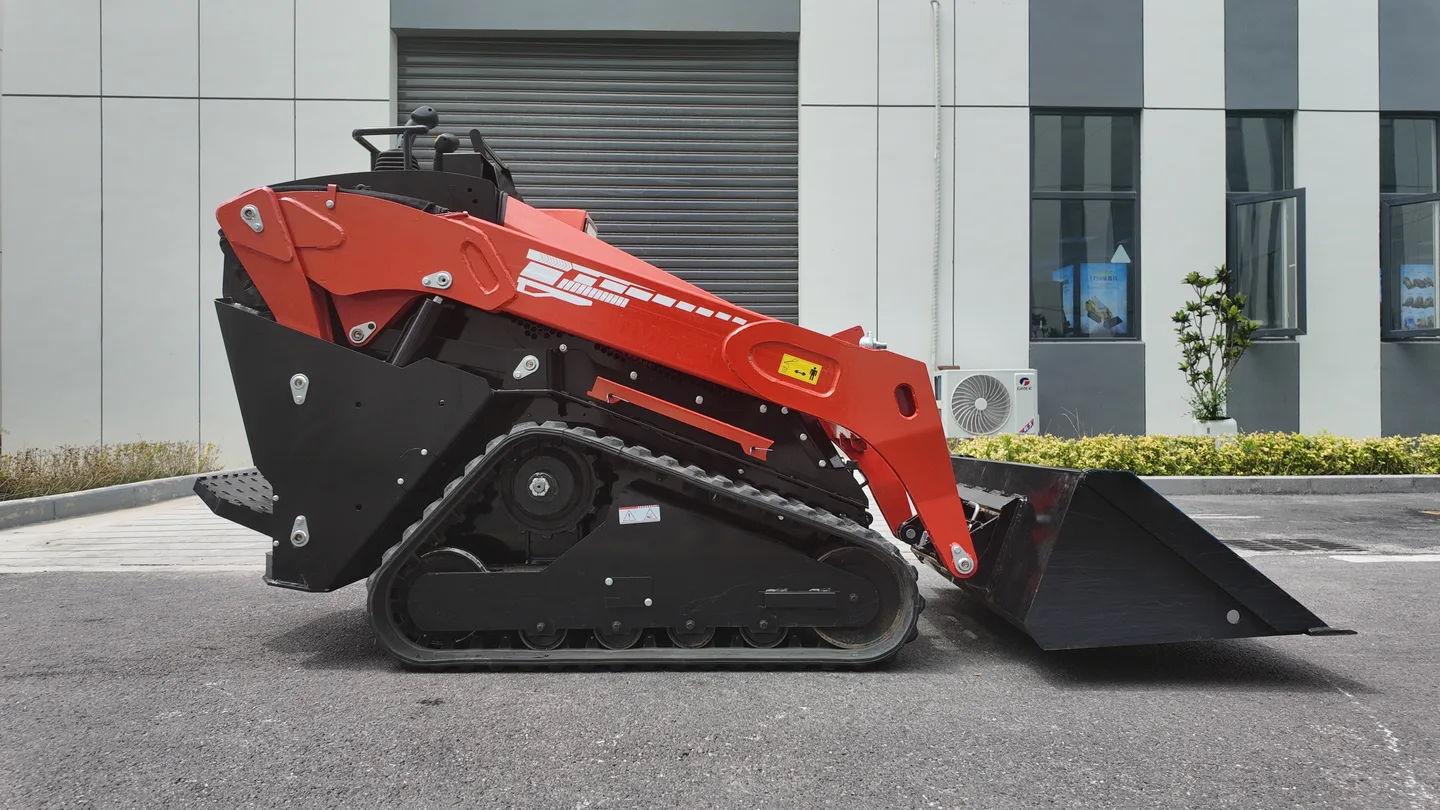

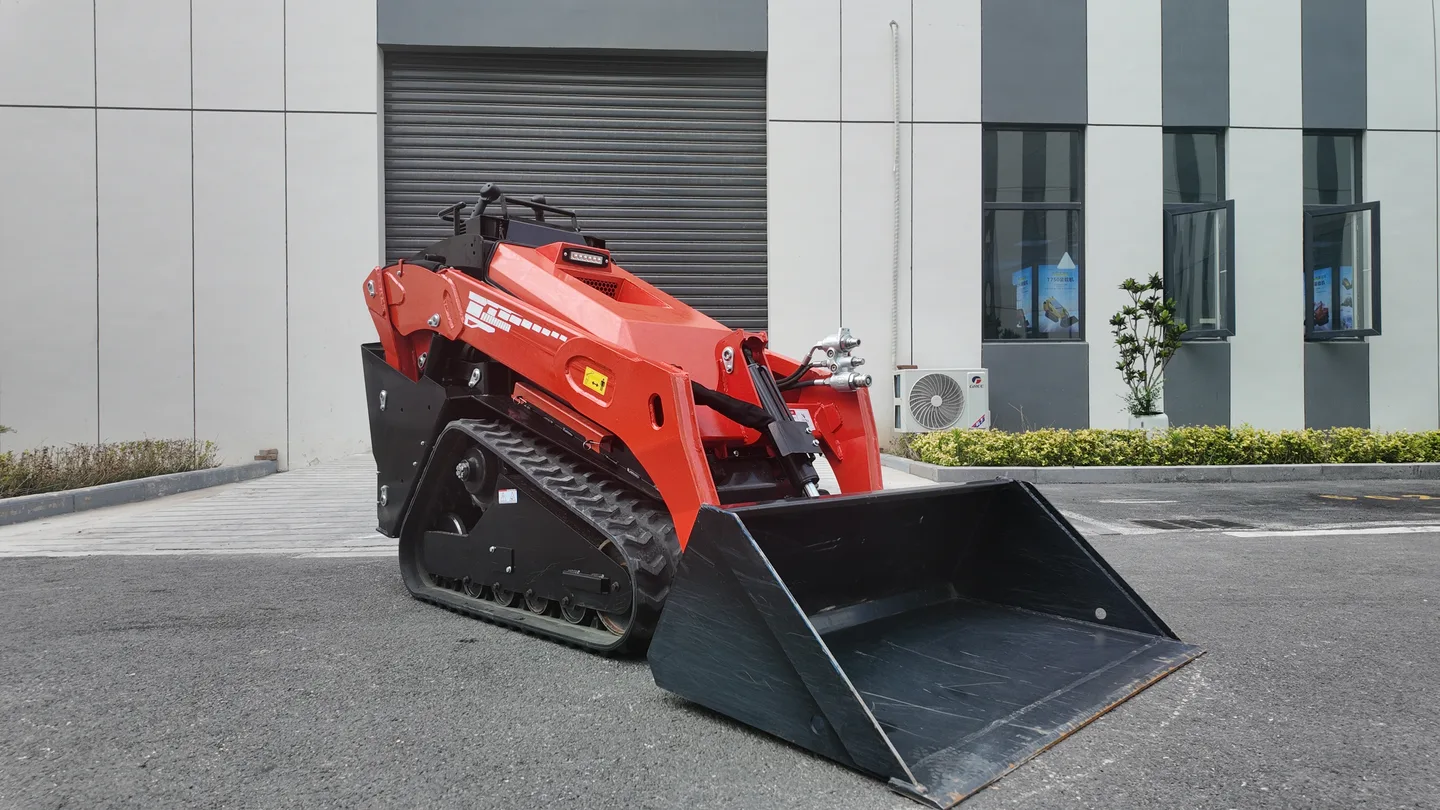

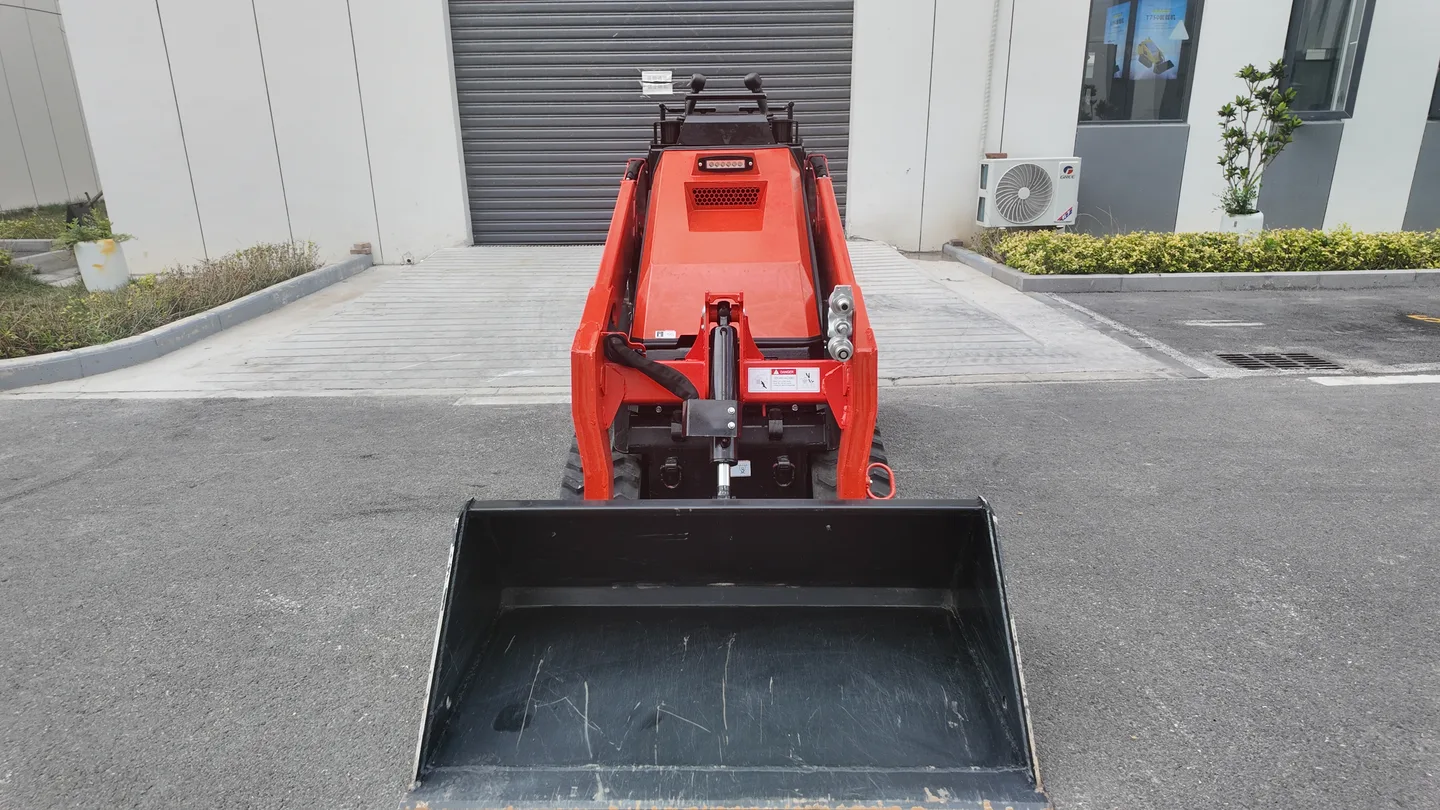

V1000 Compact Track Loader
V1000Catalogue ref. P100
A compact tracked skid steer loader with hydraulic pilot operation and vertical lift for small earthmoving and material-handling tasks. The specification lists a 500 kg rated load and 0.19 m³ bucket.
Rated load500 kg
Operating weight1892 kg
Bucket capacity0.19 m³
Manufacturer / catalogue attribution拓维森
Share the quantity, destination and required configuration for a tailored quotation.
Specifications
| Rated load | 500 kg |
|---|---|
| Operating weight | 1892 kg |
| Bucket capacity | 0.19 m³ |
| Maximum load | 650 kg |
| Overall dimensions (L × W × H) | 2691 × 1240 × 1548 mm |
| Maximum dumping height | 1522 mm |
| Maximum loading height | 2102 mm |
| Maximum operating height | 2794 mm |
| Bucket pin height | 2140 mm |
| Travel speed | 0–6 km/h |
| Rated hydraulic pressure | 17–20 MPa |
| Ground clearance | 200 mm |
| Fuel tank capacity | 40 L |
| Engine options | Yanmar 3TNV80 / Kubota D1105 |
Specifications are taken from manufacturer materials. Confirm the exact model, options and destination requirements before ordering.
