Earthmoving machineryRequest a quote for this equipment

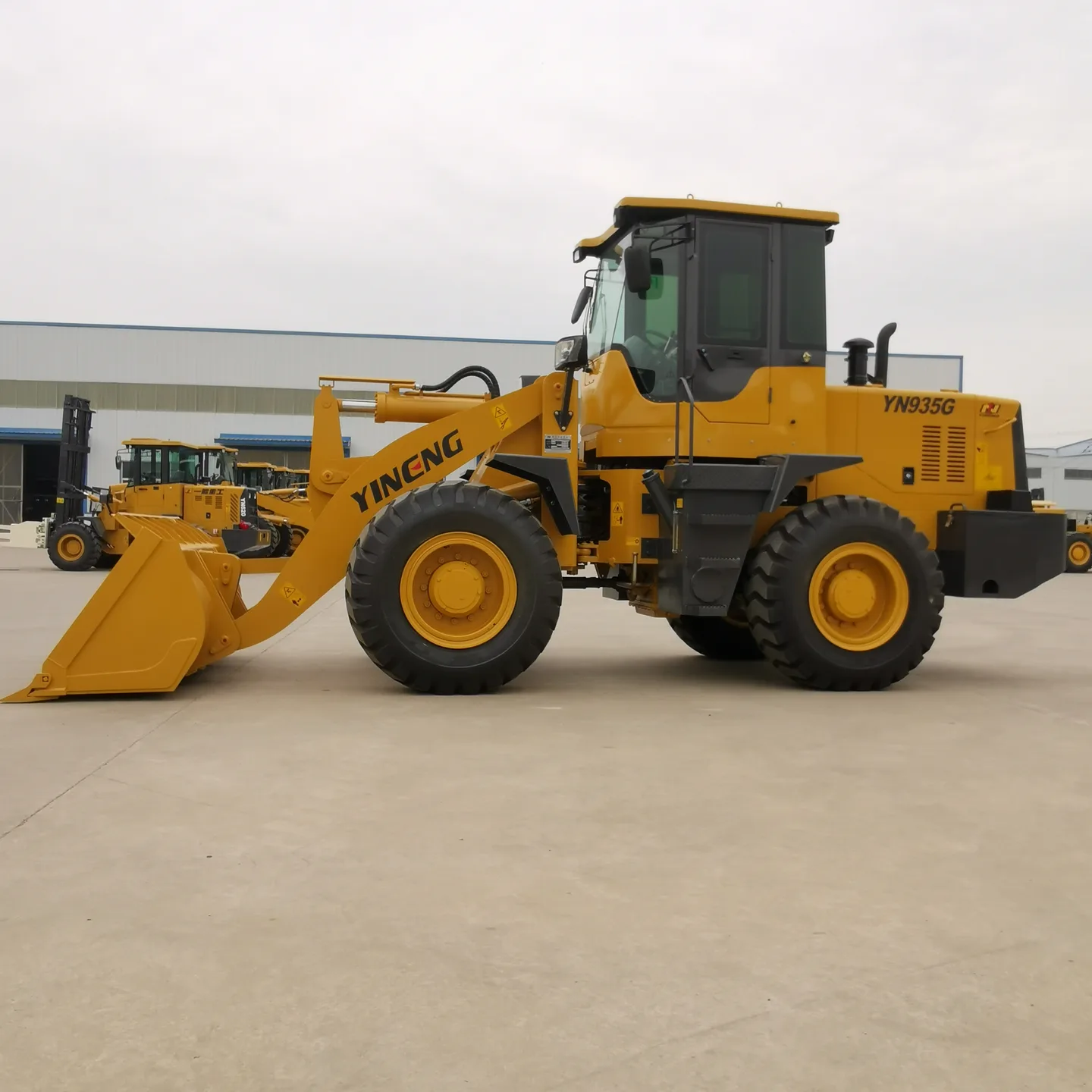

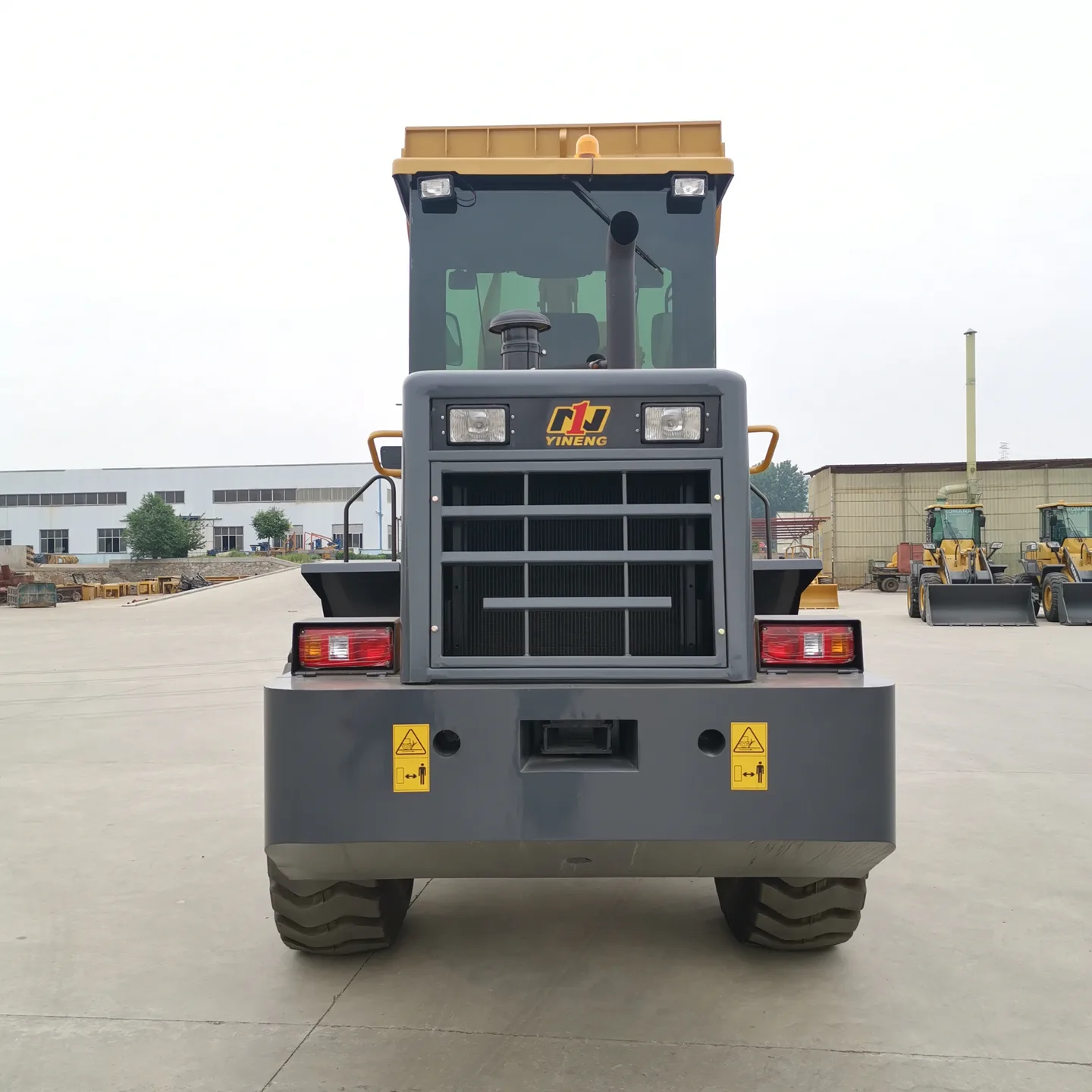

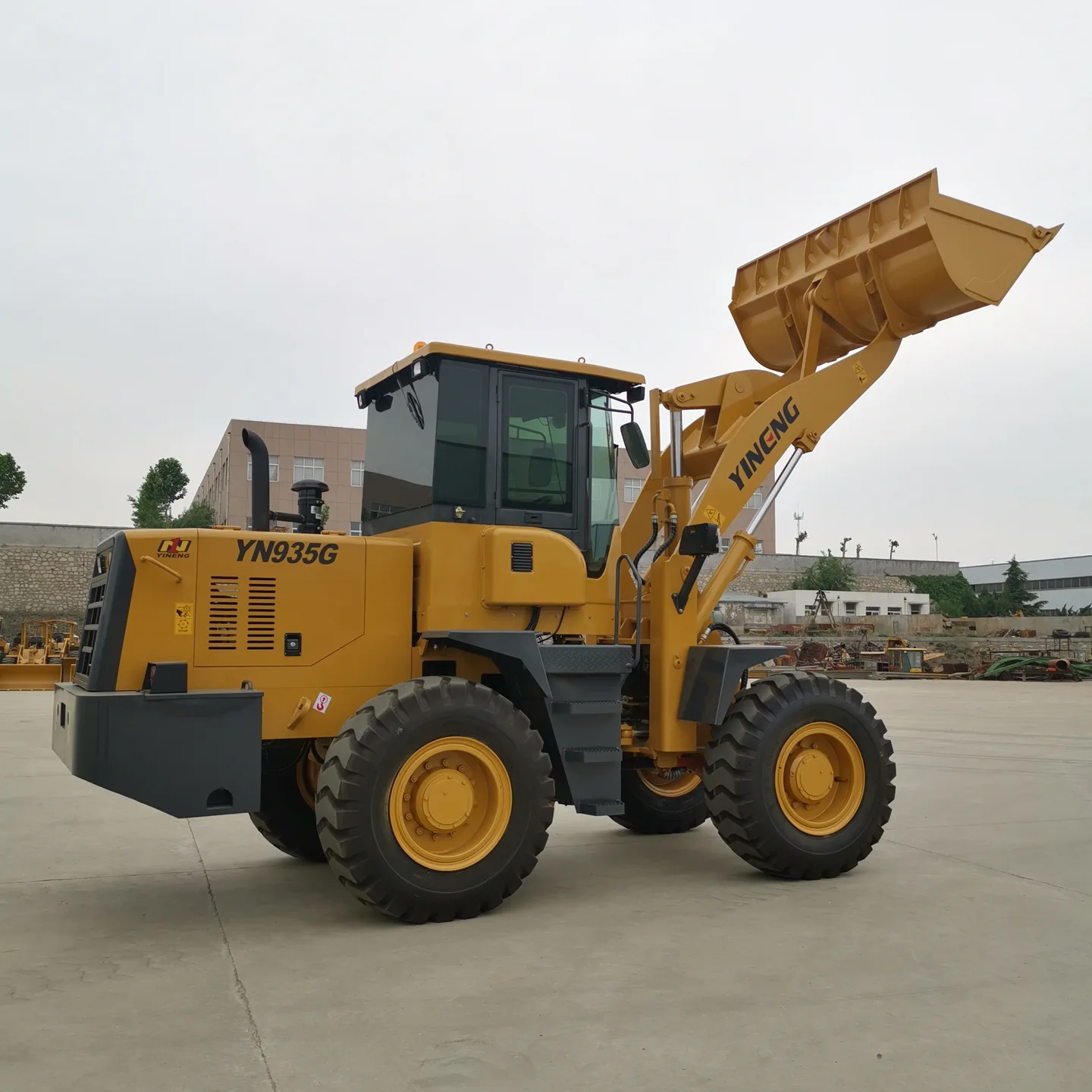

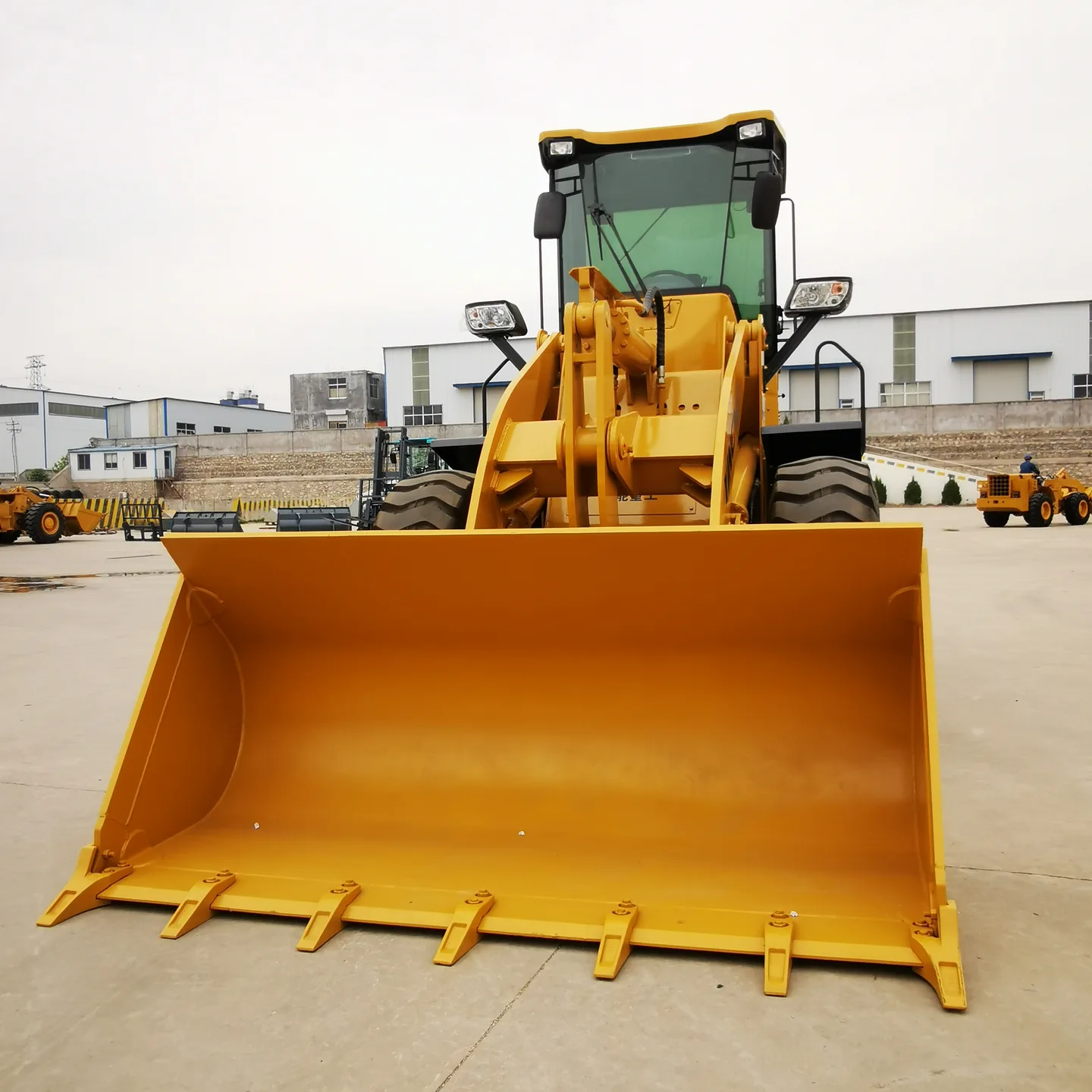

YN935G Wheel Loader
YN935GCatalogue ref. P106
Wheel loader with a 3000 kg rated load, 1.7 m³ bucket and 3050 mm dumping height. The working equipment includes automatic levelling at the raised position.
Rated load3000 kg
Bucket capacity1.7 m³
Operating weight10200 kg
Manufacturer / catalogue attributionYINENG
Share the quantity, destination and required configuration for a tailored quotation.
Specifications
| Rated load | 3000 kg |
|---|---|
| Bucket capacity | 1.7 m³ |
| Operating weight | 10200 kg |
| Rated power / speed | 92 kW / 2200 rpm |
| Overall dimensions (L × W × H) | 6990 × 2420 × 3000 mm |
| Dumping height | 3050 mm |
| Dumping reach | 1105 mm |
| Maximum breakout force | 120 kN |
| Maximum tractive force | 90 kN |
| Maximum travel speed | 38 km/h |
| Wheelbase | 2600 mm |
| Wheel tread | 1800 mm |
| Minimum ground clearance | 410 mm |
| Tyre size | 17.5-25 |
| Boom lifting time | 5.5 s |
| Maximum gradeability | 30° |
Specifications are taken from manufacturer materials. Confirm the exact model, options and destination requirements before ordering.
