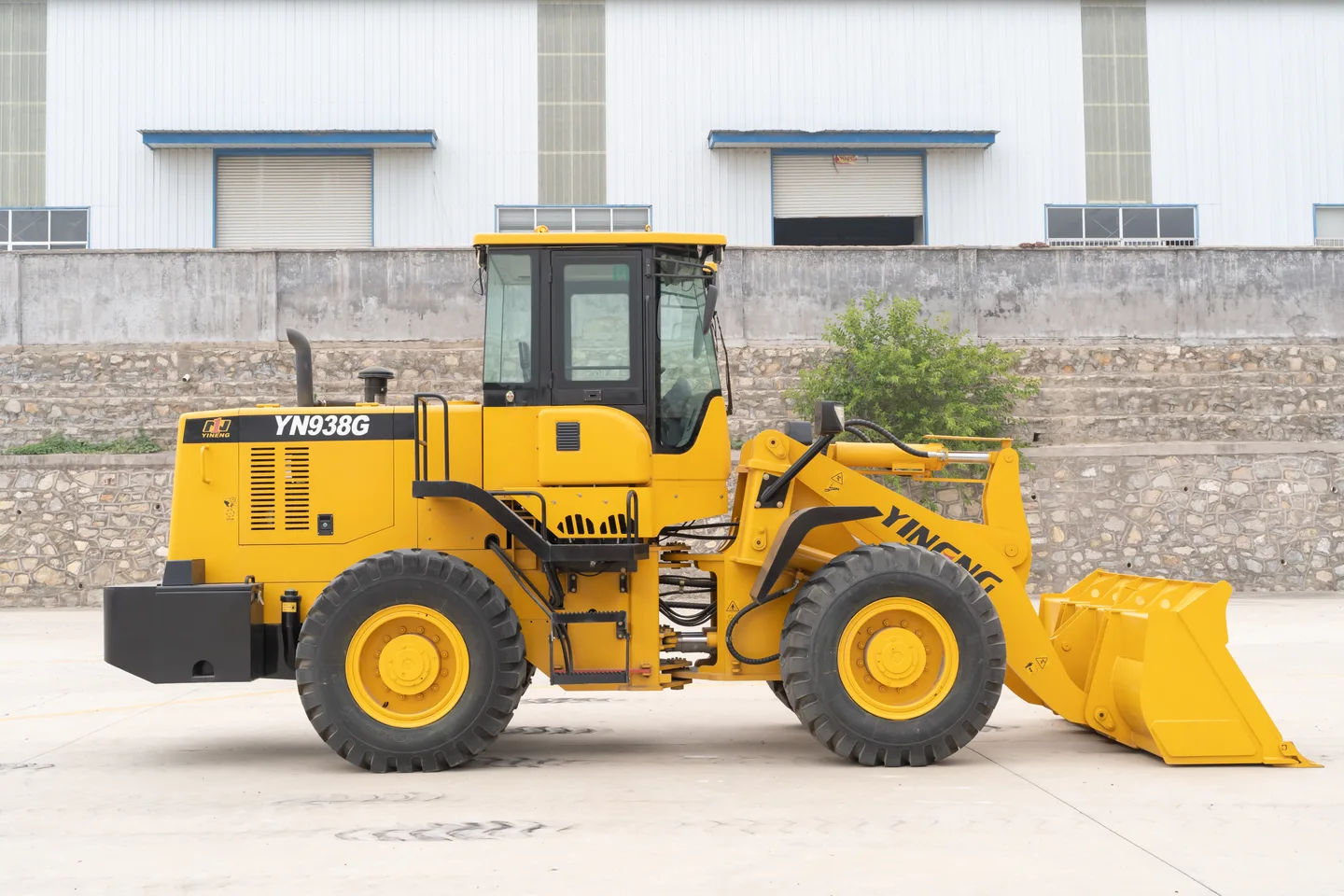

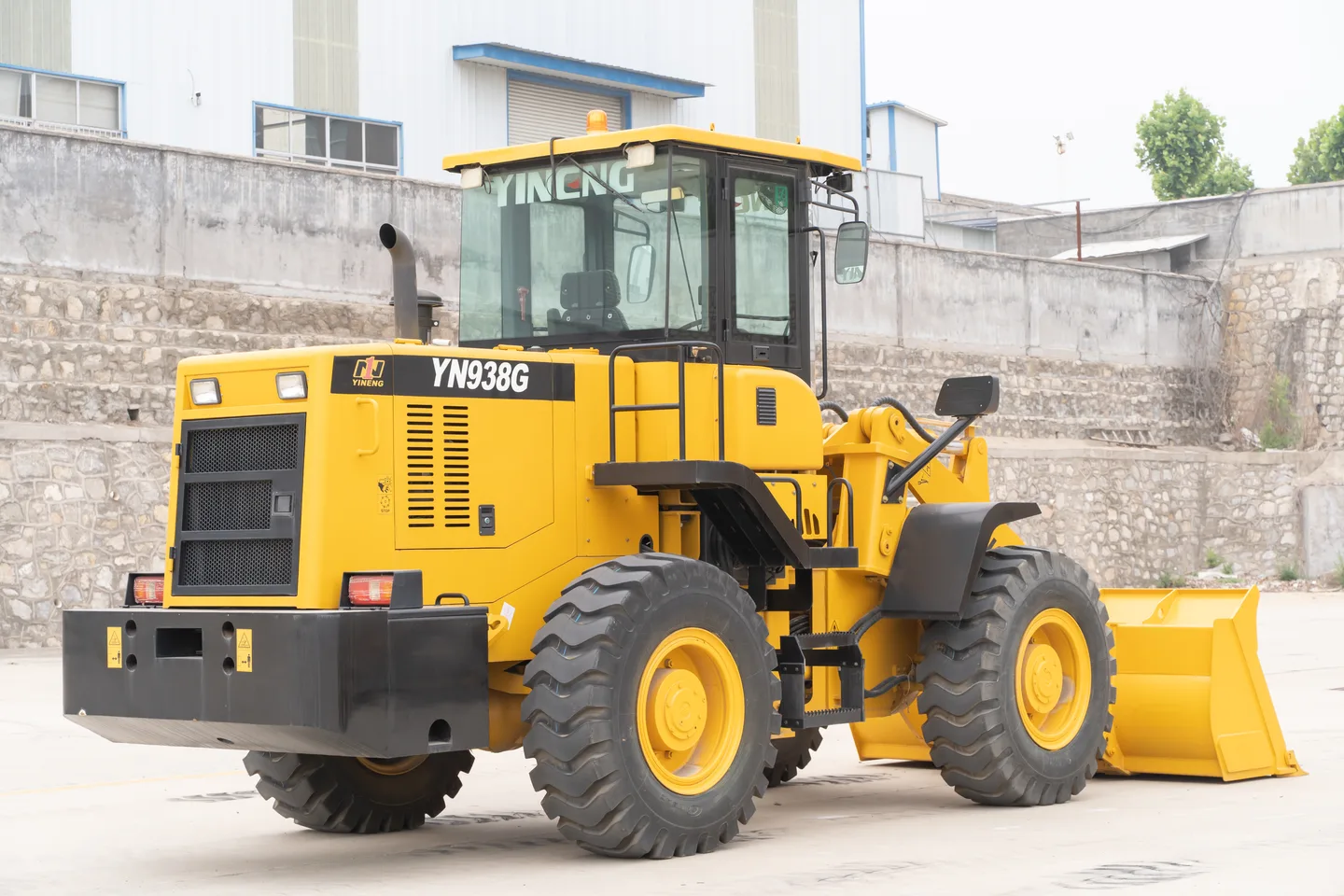

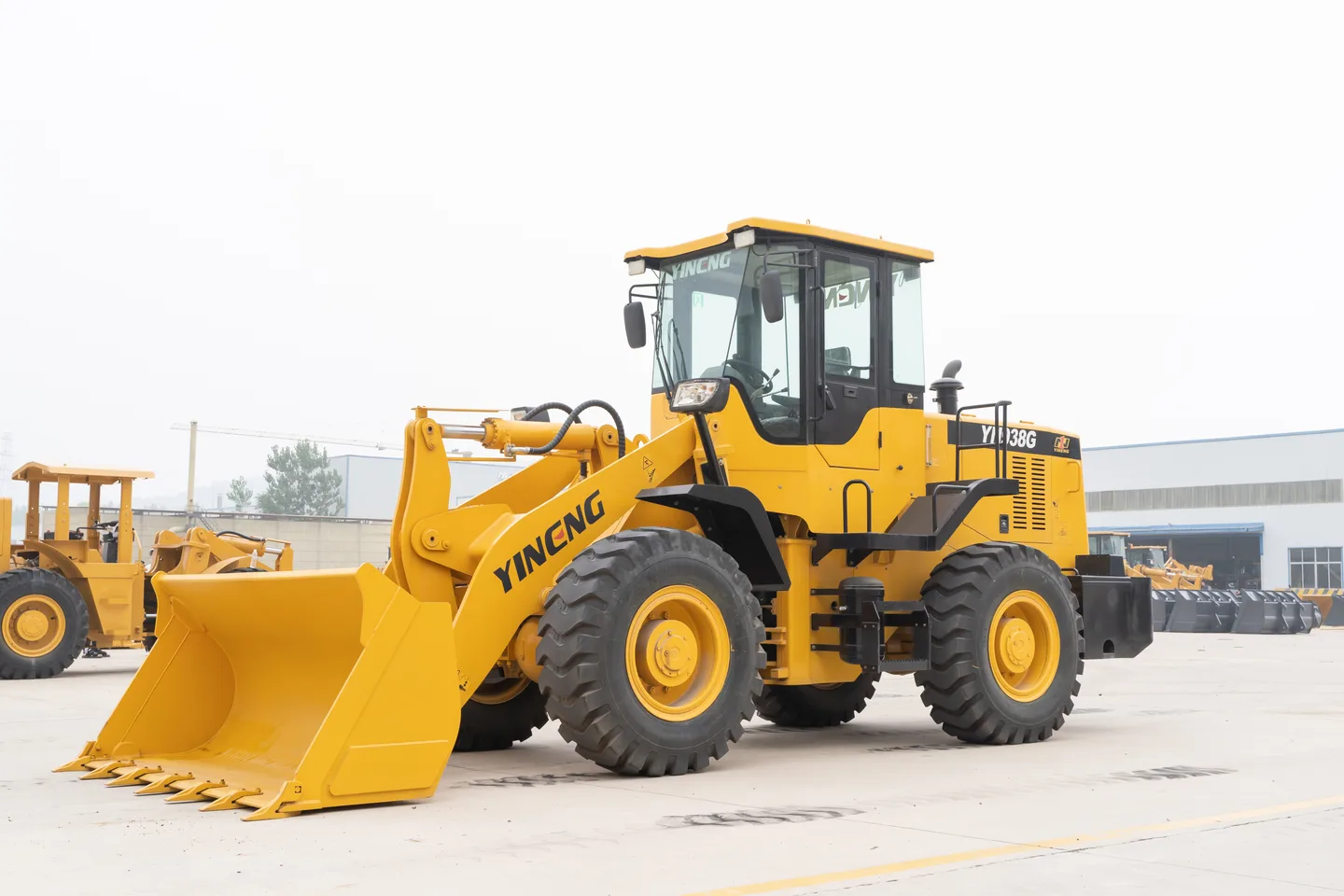

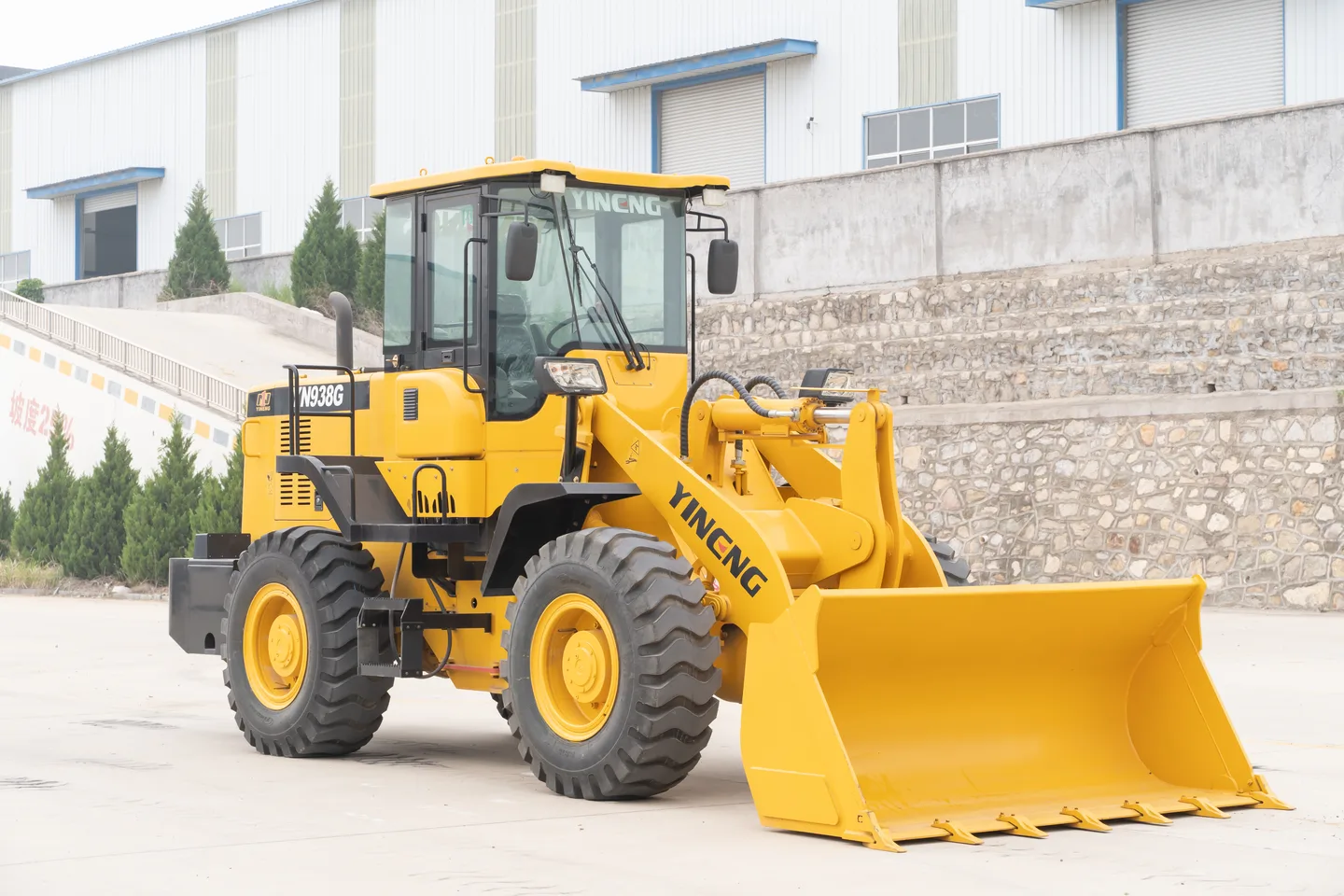

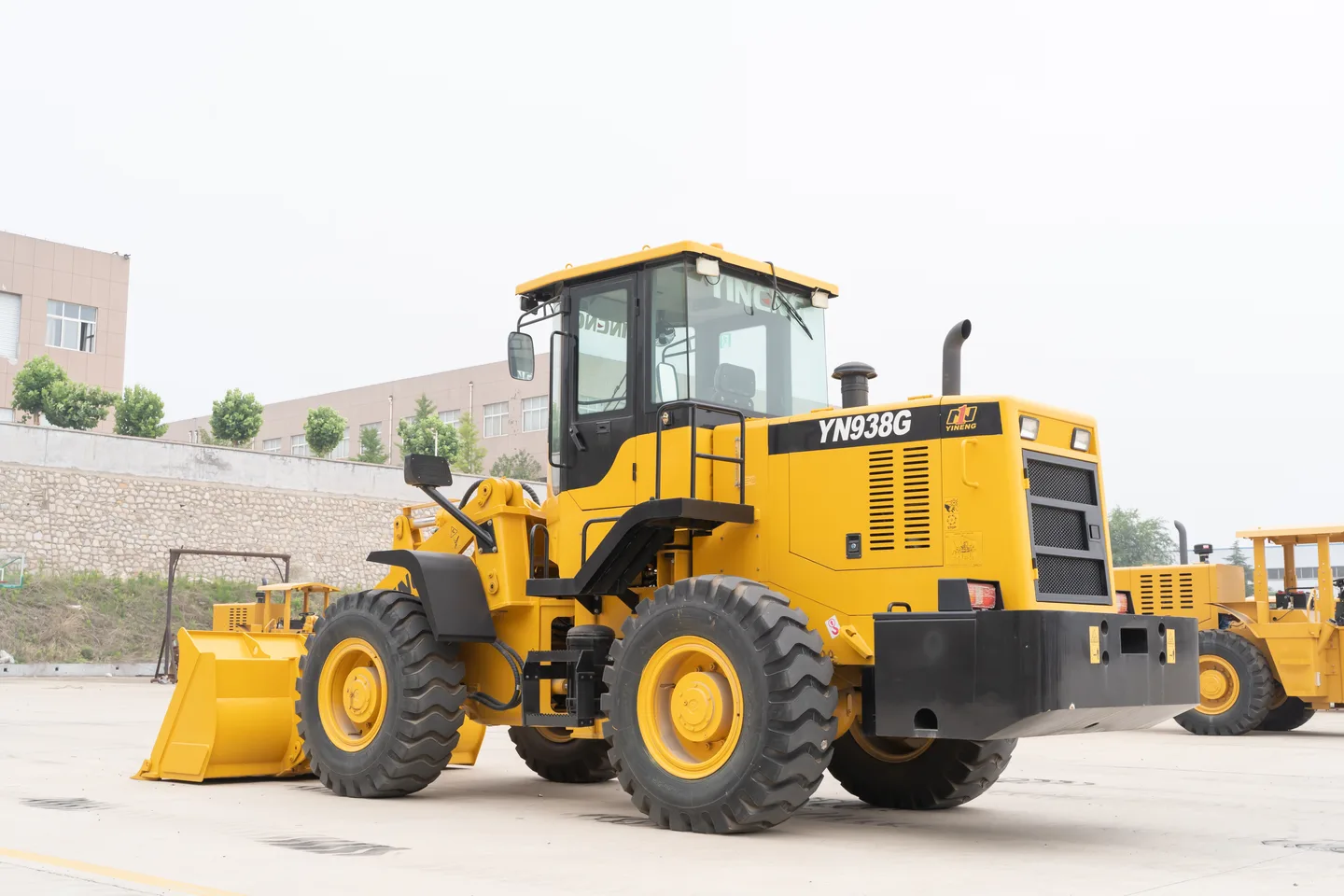

YN938G Wheel Loader
YN938GCatalogue ref. P107
Wheel loader with a 3000 kg rated load and 1.8 m³ bucket. The standard specification lists a Weichai WP6G125E22 engine and powershift transmission.
Rated load3000 kg
Bucket capacity1.8 m³
Operating weight10600 kg
Manufacturer / catalogue attributionYINENG
Share the quantity, destination and required configuration for a tailored quotation.
Specifications
| Rated load | 3000 kg |
|---|---|
| Bucket capacity | 1.8 m³ |
| Operating weight | 10600 kg |
| Engine model | Weichai WP6G125E22 |
| Rated power / speed | 92 kW / 2300 rpm |
| Overall dimensions (L × W × H) | 6870 × 2510 × 3300 mm |
| Dumping height | 3000 mm |
| Dumping reach | 1100 mm |
| Maximum breakout force | 120 kN |
| Maximum tractive force | 90 kN |
| Maximum travel speed | 36 km/h |
| Wheelbase | 2700 mm |
| Wheel tread | 1865 mm |
| Minimum ground clearance | 375 mm |
| Tyre size | 17.5-25 |
| Boom lifting time | 5.5 s |
| Total cycle time | 10 s |
| Maximum gradeability | 30° |
Specifications are taken from manufacturer materials. Confirm the exact model, options and destination requirements before ordering.
