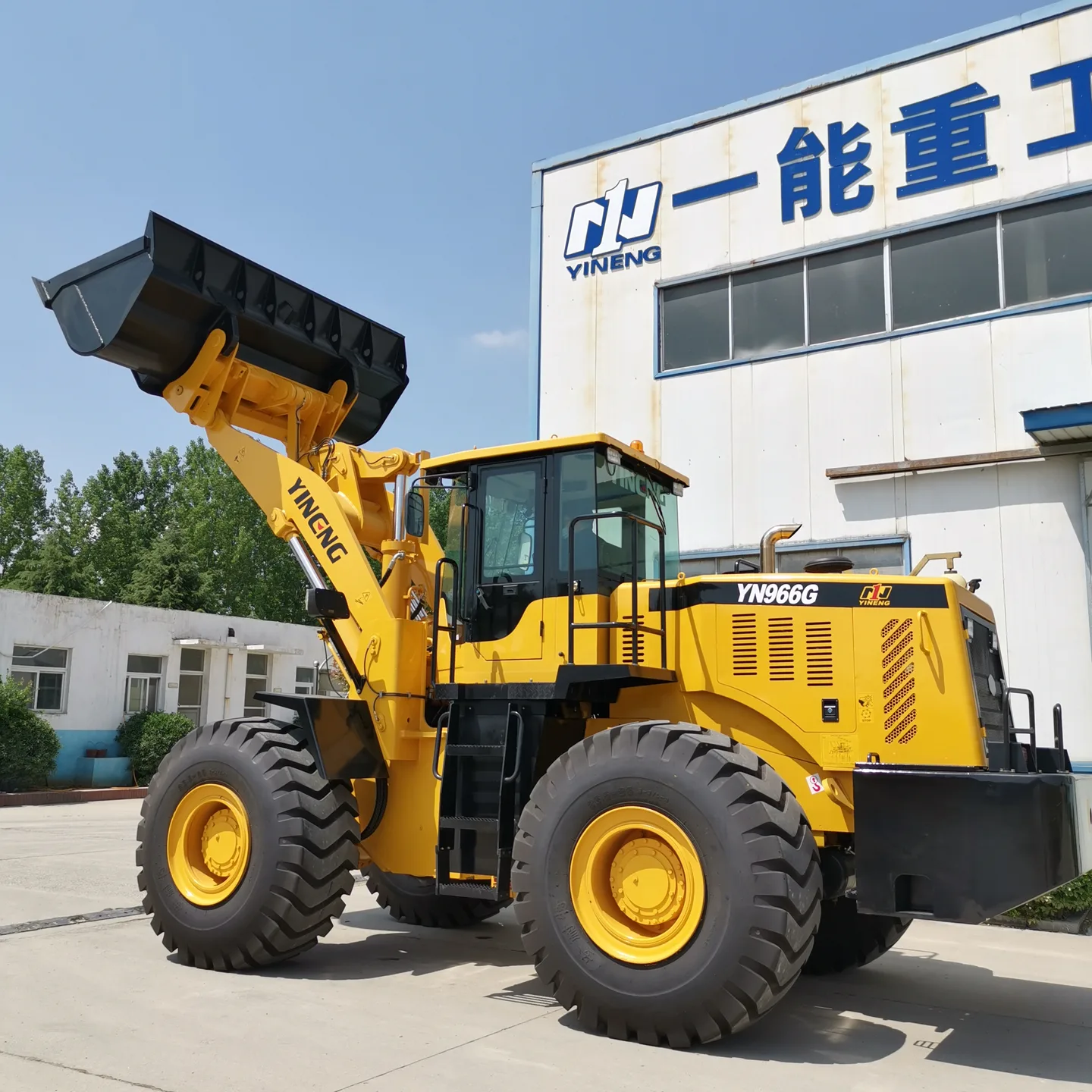

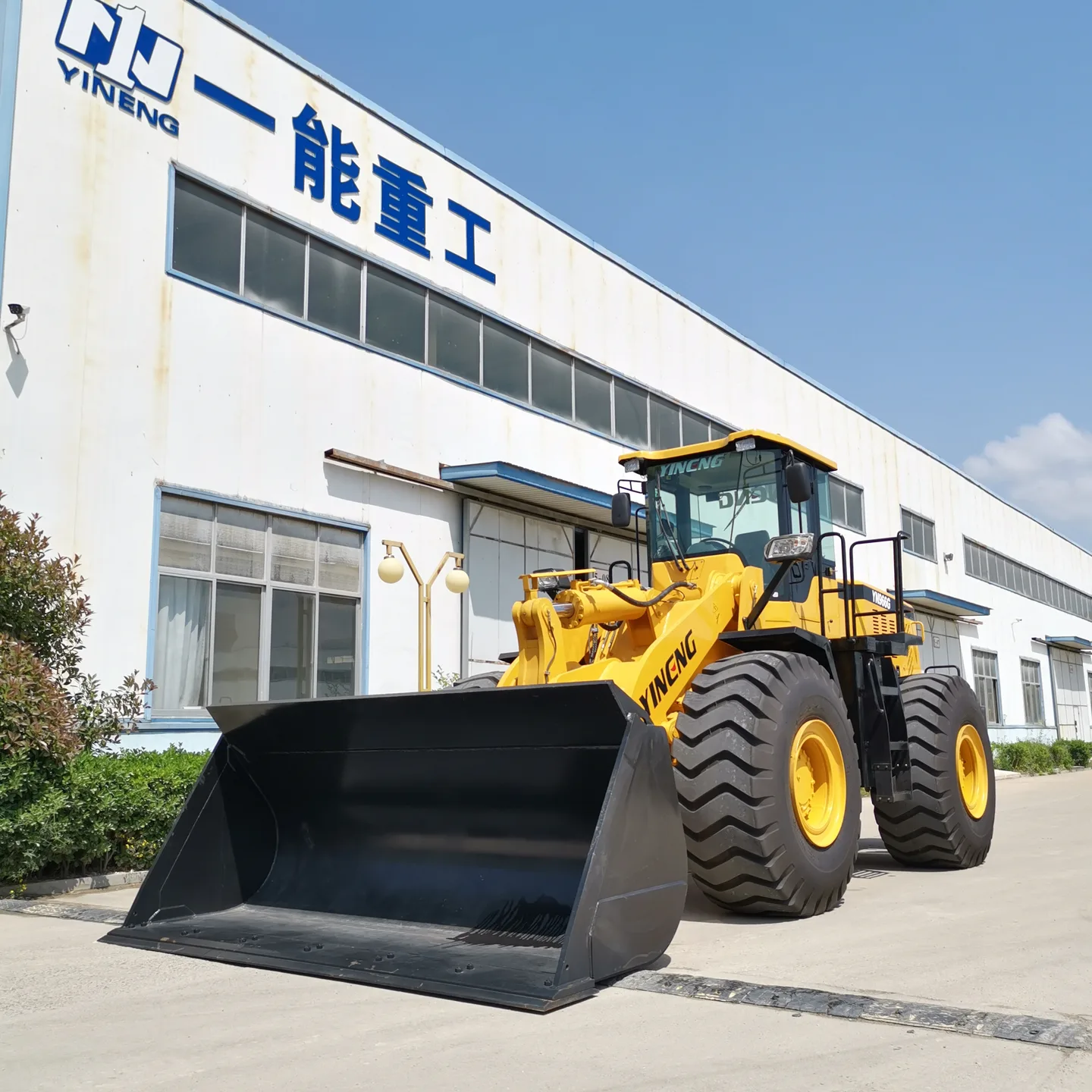

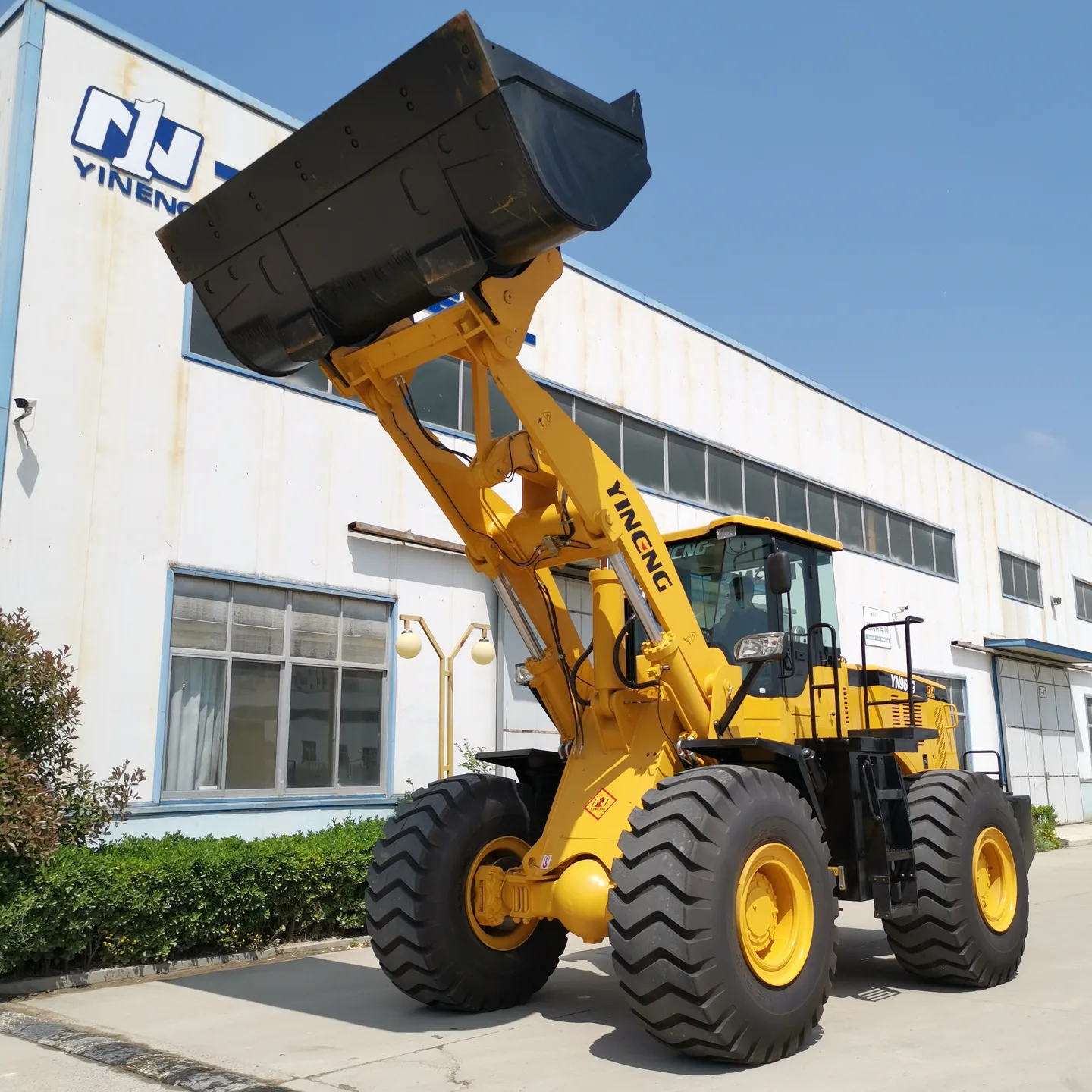

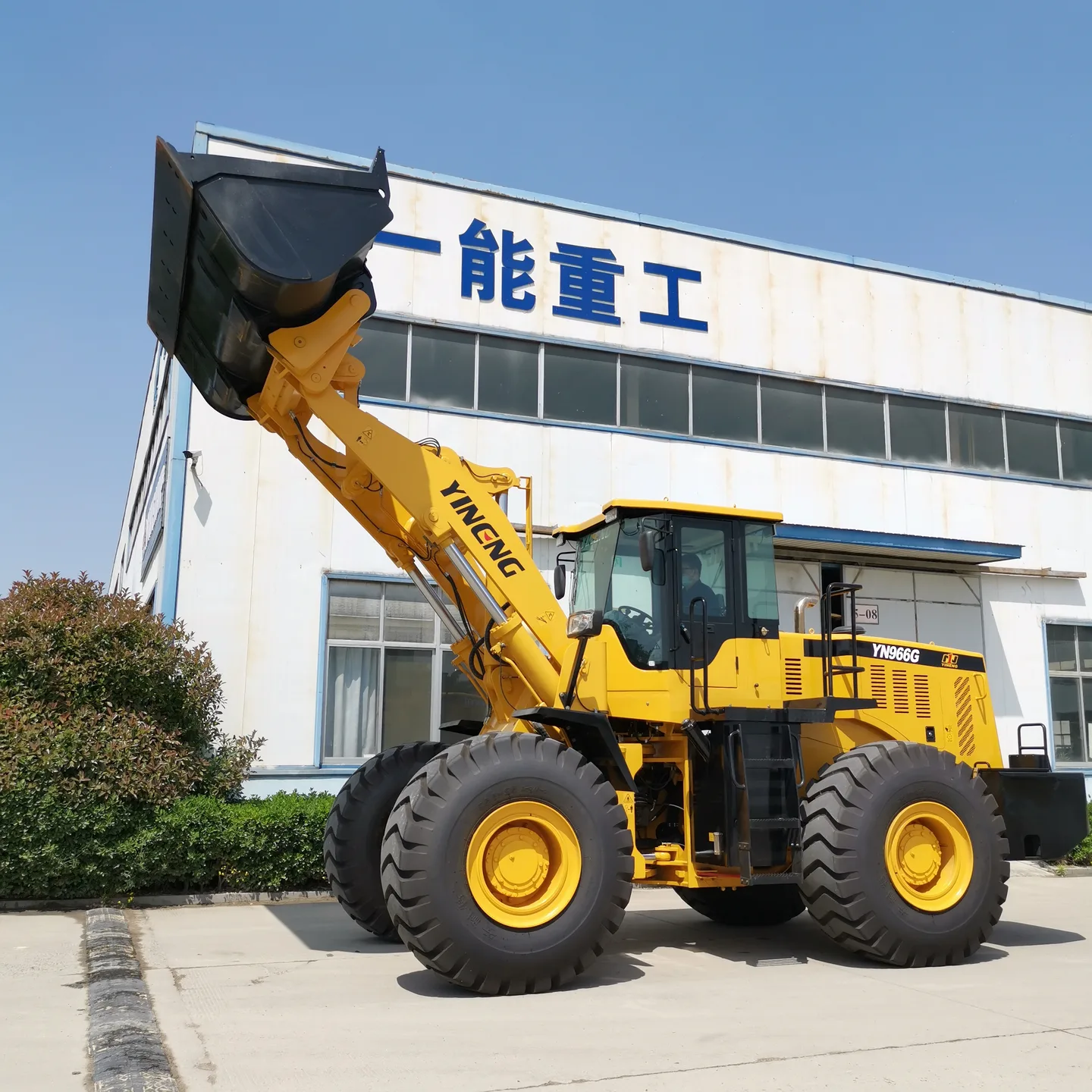

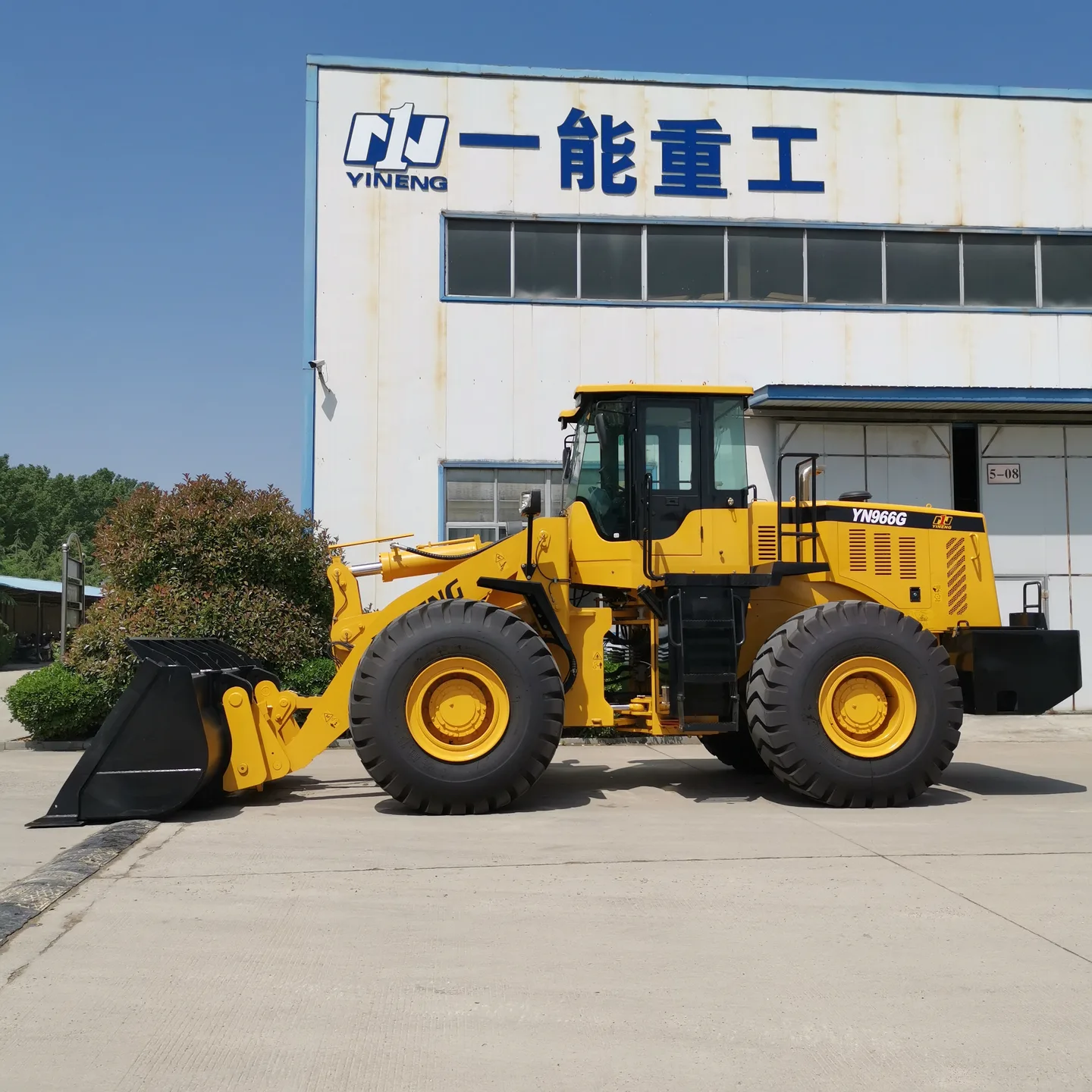

YN966G Wheel Loader
YN966GCatalogue ref. P111

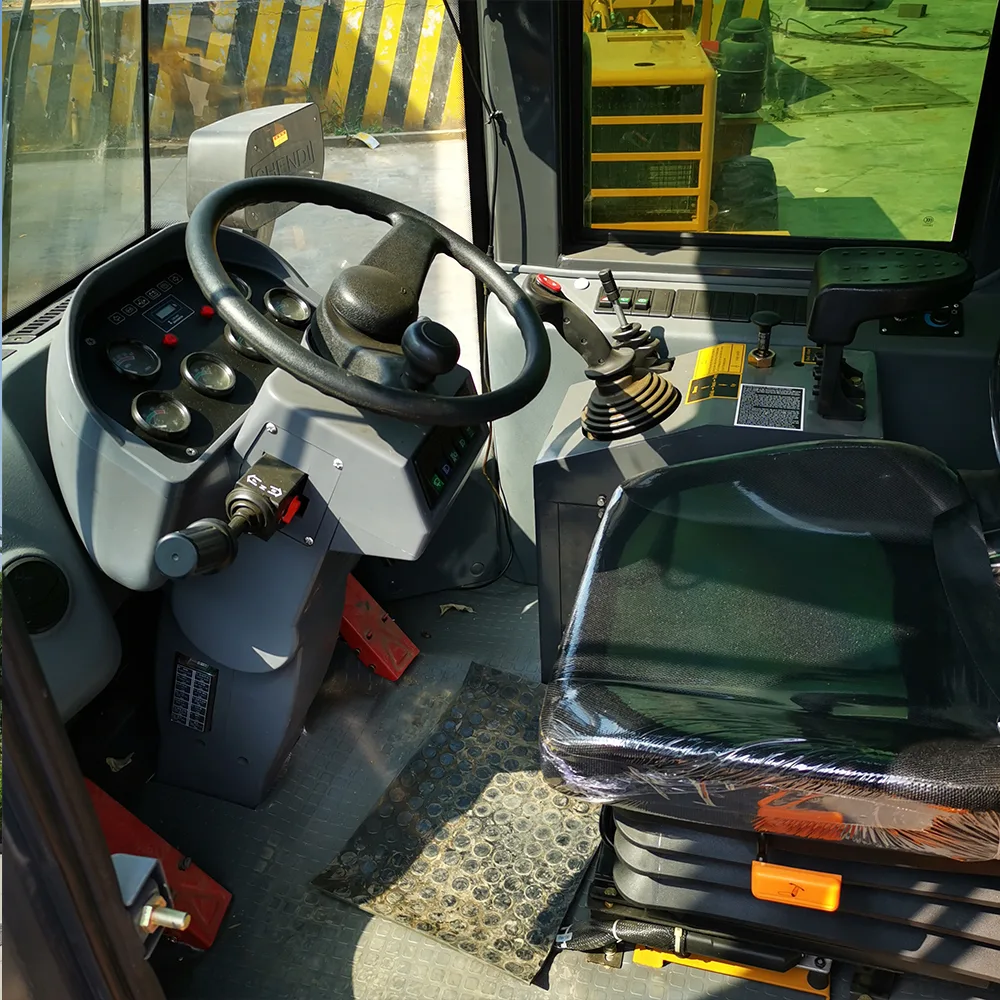

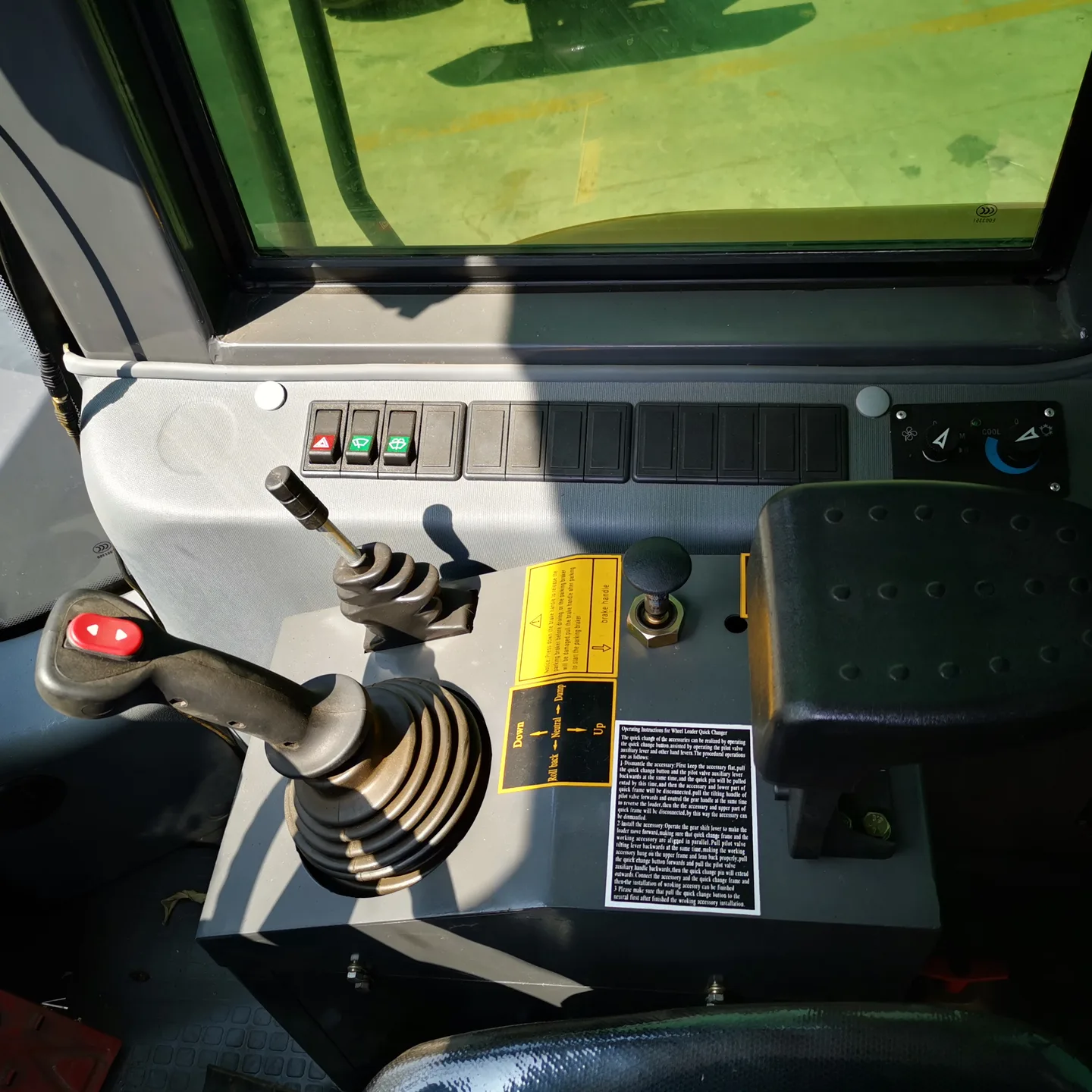

Wheel loader with a 6000 kg rated load, 3.5 m³ bucket and 175 kW Shangchai engine. It includes pilot control and a twin-pump hydraulic system.
Rated load6000 kg
Bucket capacity3.5 m³
Operating weight20600 kg
Manufacturer / catalogue attributionYINENG
Share the quantity, destination and required configuration for a tailored quotation.
Specifications
| Rated load | 6000 kg |
|---|---|
| Bucket capacity | 3.5 m³ |
| Operating weight | 20600 kg |
| Engine model | Shangchai SC11CB240.1G2B1 |
| Rated power / speed | 175 kW / 2200 rpm |
| Overall dimensions (L × W × H) | 8250 × 3200 × 3630 mm |
| Maximum dumping height | 3100 mm |
| Maximum dumping reach | 1250 mm |
| Maximum breakout force | ≥190 kN |
| Maximum tractive force | 170 kN |
| Maximum travel speed | 38 km/h |
| Wheelbase | 3200 mm |
| Wheel tread | 2250 mm |
| Minimum ground clearance | 510 mm |
| Tyre size | 26.5-25 |
| Hydraulic system pressure | 18 MPa |
| Fuel tank capacity | 300 L |
| Maximum gradeability | 30° |
Specifications are taken from manufacturer materials. Confirm the exact model, options and destination requirements before ordering.
